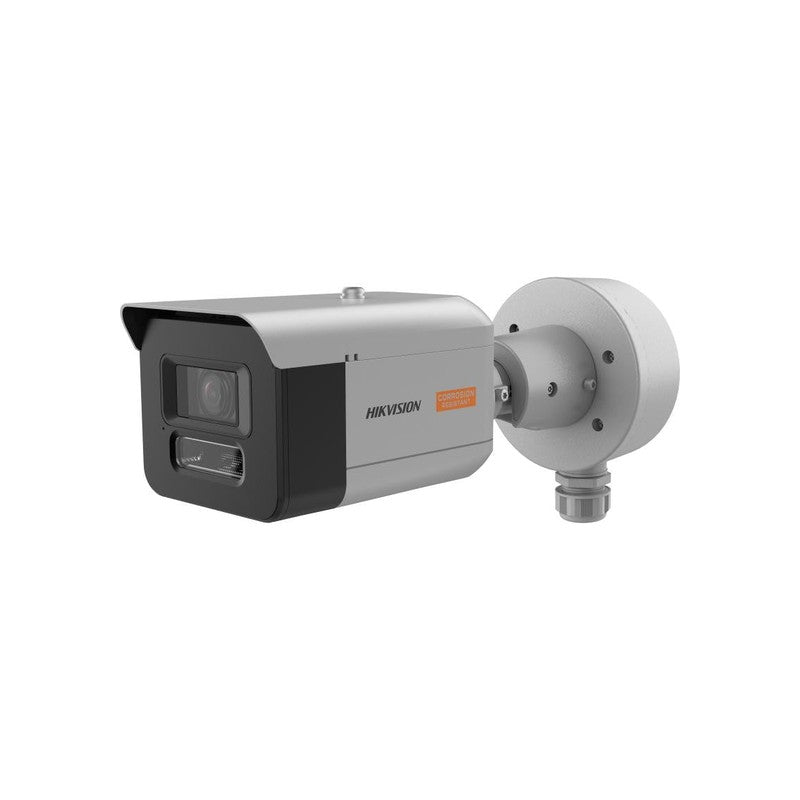

Hikvision Ds‑2xc3646g0h‑lizsu(pa) Anti-corrosion Polymer Vari-focal Bullet Camera 2.7-13.5mm
SKU: DS2XC3646G0HLIZSPA
$796.56
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Fsh Ve1260s-st9 Strike Plate 35mm Ve1260 Series 9mm Misalignment Min 40mm Door Thickness Square Edge Silver
Upgrades Subtotal:
$0.00
The Hikvision DS-2XC3646G0H-LIZSU(PA) is a 4MP anti-corrosion motorised varifocal bullet camera engineered for perimeter monitoring in coastal, chemical, and high-moisture industrial environments. Designed to withstand severe conditions, this unit features a polymer housing rated to NEMA 4X and C5-M standards, ensuring reliable operation where standard metal housings would deteriorate.
Key Features
- Anti-corrosion polymer enclosure rated NEMA 4X and C5-M, tested for 720 hours of salt spray and 480 hours of condensation.
- Motorised varifocal lens with a 2.7-13.5mm range, providing a horizontal field of view adjustable from approximately 107.4° to 39.8°.
- 1/1.8-inch progressive scan CMOS sensor delivering 4MP resolution for detailed image capture.
- Hybrid illumination system combining IR and white light with a range of up to 50m for both colour and discreet low-light monitoring.
- HEOP 2.0 support with 1.5 TOPS processing power for advanced video analytics.
- Minimum illumination of 0.001 lux at F1.2 for enhanced performance in low-light conditions.
- Remote motorised lens adjustment allows for field of view tuning during commissioning without physical access to the housing.
Technical Specifications
| Model Number | DS-2XC3646G0H-LIZ(S)(U)(PA) |
| Camera Type | Anti-corrosion varifocal bullet, 4MP |
| Image Sensor | 1/1.8-inch progressive scan CMOS |
| Maximum Resolution | 2560 x 1440 |
| Lens Options | Motorised varifocal: 2.7-13.5mm or 7-35mm |
| Horizontal Field of View | 2.7-13.5mm: approx. 107.4 to 39.8 degrees / 7-35mm: approx. 40.3 to 14.5 degrees |
| Varifocal Aperture | 2.7-13.5mm: max F1.2 / 7-35mm: max F1.7 |
| Minimum Illumination | Colour: 0.001 lux at F1.2 (AGC ON) / 0 lux with supplementary light active |
| Day/Night Filter | IR-cut filter |
| Supplementary Illumination | Hybrid IR and white light, range up to approximately 50m |
| Depth of Field | 1m to infinity |
| Anti-Corrosion Rating | NEMA 4X, C5-M: 720 hours salt spray, 480 hours condensation |
| Housing Material | Anti-corrosion polymer enclosure |
| HEOP Processing | HEOP 2.0, 1.5 TOPS, 60MB system memory, 371MB smart RAM, 2GB eMMC |
| SDK Support | HEOP 2.0, OpendevSDK, deep-learning frameworks supported |
| Designed Environments | Coastal, marine, chemical plants, industrial high-moisture and corrosive atmospheres |
| Lead Time | 6-9 weeks |
