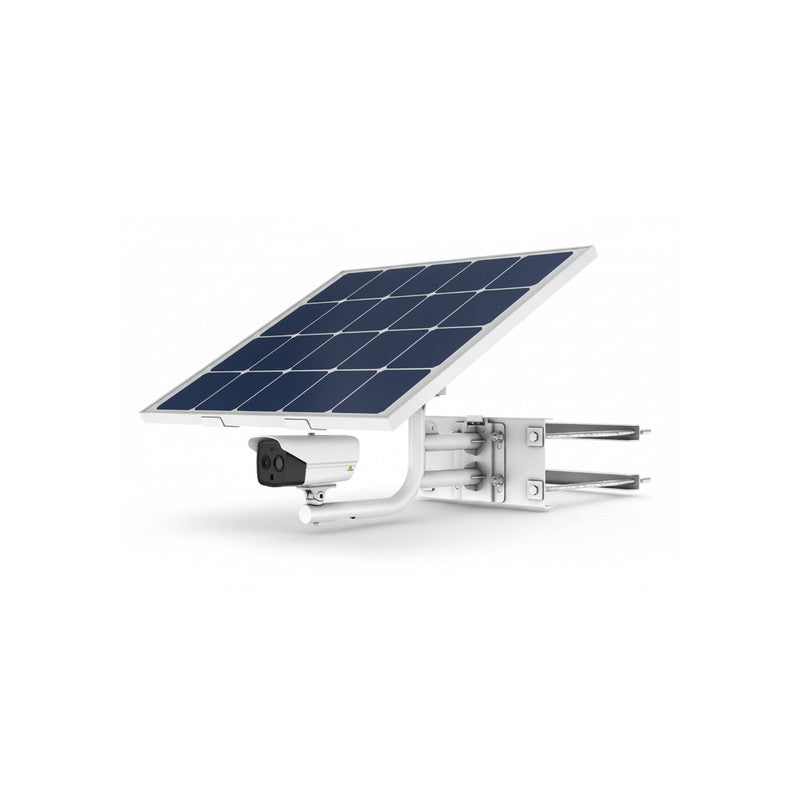

The Hikvision DS-2TXS2628-7P/QA/GLT/CH30S80-KIT is a solar-powered, dual bi-spectrum thermal camera system engineered for perimeter monitoring in off-grid environments. This unit integrates a 256×192 VOx uncooled focal plane thermal module with a 2688×1520 optical CMOS sensor, enabling simultaneous heat signature detection and detailed visual capture without reliance on mains power or wired networking.
Key Features
- Dual bi-spectrum design featuring a 256×192 VOx UFPA thermal module and a 2688×1520 optical CMOS sensor with image fusion capabilities.
- Off-grid power system comprising an 80W photovoltaic panel and a 30Ah lithium battery rated for over 500 charge cycles.
- Built-in 4G LTE (FDD/TDD/WCDMA) connectivity via Micro SIM for remote access and real-time alerts without cabled network infrastructure.
- Onboard VCA (Video Content Analysis) to classify vehicles and humans, reducing nuisance triggers.
- Active deterrence mechanisms including an embedded strobe light and audible alarm triggered by rule breaches.
- Temperature exception monitoring across a range of -20°C to 150°C for early fire detection.
- Low power consumption profile with a maximum of 7.1W (IR on) and a 24-hour average of 2.97W.
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Arrays (VOx UFPA) |
| Thermal Resolution | 256 x 192 |
| Pixel Pitch | 12 μm |
| NETD | Less than or equal to 40 mK (at 25 degrees C, F1.0) |
| Thermal Field of View | 50.0 degrees x 37.3 degrees (H x V), 3.6mm focal length |
| Optical Sensor | 1/2.7″ Progressive Scan CMOS, 2688 x 1520 resolution |
| Optical Field of View | 84.0 degrees x 43.1 degrees (H x V), 4.3mm focal length |
| IR Illumination | Up to 30m, auto-adjusting intensity and angle |
| White Light / Strobe Range | Up to 30m, adjustable flashing frequency |
| Temperature Measurement Range | -20 degrees C to 150 degrees C, accuracy plus or minus 8 degrees C |
| VCA | Vehicle/human classification; line crossing, intrusion, region entrance, region exiting; up to 8 rules |
| Solar Panel | 80W photovoltaic panel, tilt adjustable to 10 degrees or 30 degrees |
| Battery | 30Ah lithium, 10.8V (max output 12.6V), more than 500 charge cycles (ordered separately) |
| 4G Connectivity | LTE-FDD/LTE-TDD/WCDMA, Micro SIM card |
| Local Storage | MicroSD/SDHC/SDXC up to 256GB (32GB card included), NAS, ANR |
| Protection Rating | IP67, IK10, TVS 4000V lightning protection, wind resistance level 12 |
| Operating Temperature | -40 degrees C to 65 degrees C |
| Power Consumption | Thermal only: 2.73W; 24-hour average: 2.97W; max (IR on): 7.1W |
| Mount / Weight | Pole mount; camera unit 26.6kg, packaged 27.79kg |
| Video Compression | H.265/H.264 (main stream); H.265/H.264/MJPEG (sub-stream) |
