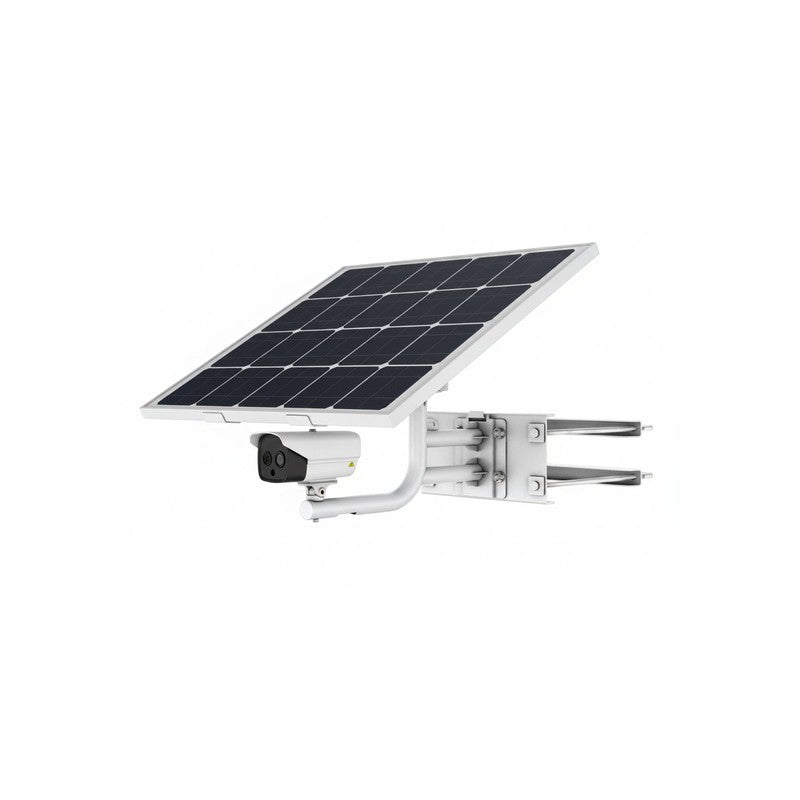

Hikvision Ds-2txs2628-3p/qa/glt/ch30s80-kit Solar-powered Thermal Camera Kit (30ah Vbattery)
SKU: DS2TXS26283PQAGLTCH30S80
$4,461.00
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
2.5″ 1tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$287.61
Axis 2.5″ 2tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$293.46
Seagate Skyhawk SSD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$539.00
Seagate Skyhawk SSD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$759.00
Seagate St6000vx008 Skyhawk 6tb 3.5 Inch Sata Hard Drive
$1,279.00
Seagate Skyhawk SSD Surveillance 8tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$1,215.00
Seagate Skyhawk St10000vx0004 10tb 3.5 Inch Sata 6gb/s Surveillance Hard Drive
$1,485.00
Seagate Skyhawk Hasea16tb-shaisv2562 16tb 3.5 Inch Sata HDD 6gb/s 256mb Cache 7200rpm 26.11hx101.85wx146.99d (mm)
$1,695.00
Seagate Exos HDD 16tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,365.00
Western Digital Purple HDD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$495.00
Western Digital Wd33purz Wd Purple 3tb 3.5 Inch Sata Iii 6gb/s Surveillance HDD
$445.00
Western Digital Hawd-pp35-3tb1 Purple HDD Surveillance 3tb 3.5" Sata Iii (6gb/s) 5400 Rpm 256 Mb Cache
$495.00
Western Digital Purple HDD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$565.00
Western Digital Wd44purz Wd Purple Surveillance 4tb 3.5 Inch Sata HDD
$645.00
Western Digital Wd64purz Wd Purple HDD Surveillance 6tb 3.5 Inch Sata Iii 6gb/s 5400rpm
$895.00
Western Digital Wd85purz Purple HDD Surveillance 8tb 3.5 Inch Sata 6gb/s 5400 Rpm Cmr
$945.00
Western Digital Wd102purp Purple Pro SSD Surveillance 10tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,395.00
Western Digital Wd Purple Pro Wd141purp 14tb 3.5 Inch Sata Iii 6gb/s 7200rpm Surveillance HDD
$1,295.00
Western Digital Purple Pro SSD 18tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,495.00
Western Digital Wuh721816ale6l4 Ultrastar DC Hc550 HDD 16tb 3.5 Inch 7200rpm Sata 6gb/s HDD 512mb Buffer 26.1mm Z-height 0f38462
$1,695.00
Western Digital Ultrastar DC Hc550 16tb Sata 6gb/s 3.5 Inch 7200rpm Data Center HDD
$1,995.00
Hikvision Monitor Ds-d5022f2-1v2s 21.5 Inch FHD 100hz Va Monitor With Speaker, Hdmi, 6.5ms, Vesa 75×75
$190.50
Hikvision Ds-d5024f2-bv2s 23.8″ FHD Surveillance Monitor With Speaker
$225.60
Hikvision Ds-d5032f3-1v0s 32″ Full Hd Commercial Monitor Hdmi, VGA & Speakers
$463.11
Hikvision Ds-d5043f3-1v0s 43″ Commercial Monitor Full Hd Hdmi/vga/usb, Built-in Speaker
$687.75
Dahua 24"(23.8) 1920x1080 FHD LED Monitor 1 X HDMI Audio In Built-in Speaker
$271.55
Dahua 32"(31.5) 1920x1080 FHD LED Monitor 24/7 1 X HDMI 1 X VGA Built-in Speaker
$465.05
Dahua 43" 3840x2160 4K UHD LED Monitor 24/7 2 X Hdmi,1 X Vga,1 X USB Audio In Built-in Speaker
$879.36
Dahua 55" 3840x2160 4K UHD LED Monitor 24/07 2 X HDMI 1 X VGA 1 X Display Port Audio In Built-in Speaker
$2,459.70
Uniview 22" 1920x1080 FHD LED Monitor 1 X HDMI 1 X VGA Audio In
$298.12
Uniview Mw3232-v-k2 32 Inch FHD CCTV Monitor HDMI VGA Audio In Built-in Speaker
$559.24
Uniview 43" 3840x2160 4K UHD LED Monitor 24/7 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,189.44
Uniview 55" 3840x2160 4K UHD LED Monitor 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,513.98
Uniview 75" 3840x2160 4K UHD Monitor 1 X SD 2 X USB 1 X Display Port Audio In & Out Built-in Speaker
$5,324.82
Upgrades Subtotal:
$0.00
The Hikvision DS-2TXS2628-3P/QA/GLT/CH30S80-KIT is a self-contained bi-spectrum thermal camera system engineered for remote perimeter monitoring in environments lacking mains power or cabling. This autonomous unit integrates an 80W solar panel, a 30Ah lithium battery, and a built-in 4G LTE modem to provide continuous surveillance and active deterrence for unmanned rural, industrial, and critical infrastructure sites.
Key Features
- Bi-spectrum detection combining a 256 x 192 VOx uncooled thermal module with a 2688 x 1520 optical sensor for image fusion.
- Thermal performance with a NETD of 40 mK, enabling reliable detection of personnel and vehicles through smoke, dust, and darkness.
- Off-grid power system featuring an 80W photovoltaic panel and a 30Ah 10.8V lithium battery for fully autonomous operation.
- Built-in 4G LTE connectivity supporting LTE-FDD, LTE-TDD, and WCDMA bands via Micro SIM for remote video and alarm transmission.
- Integrated active deterrence with a strobe light and audible alarm for on-site response to intrusion detections.
- Temperature exception alarming capability across a range of -20°C to 150°C for fire prevention monitoring.
- Adjustable solar panel tilt angle of 10 or 30 degrees to optimize performance based on local sunlight conditions and mounting orientation.
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) |
| Thermal Resolution | 256 x 192 |
| Pixel Pitch | 12 μm |
| NETD | 40 mK at 25°C, F1.0 |
| Thermal Focal Length / FOV | 3.6 mm / 50.0° x 37.3° (H x V) |
| Optical Sensor | 1/2.7″ Progressive Scan CMOS, 2688 x 1520 |
| Optical Focal Length / FOV | 4.3 mm / 84.0° x 43.1° (H x V) |
| IR Distance | Up to 30 m (auto-adjusted) |
| Temperature Measurement Range | -20°C to 150°C (-4°F to 302°F), accuracy ± 8°C |
| VCA Analytics | Vehicle/human classification; line crossing, intrusion, region entrance, region exiting; up to 8 rules total |
| Active Deterrence | Embedded strobe (white light, up to 30 m) and audible alarm (3 preset + 6 user-importable voice alerts) |
| Mobile Connectivity | 4G LTE-FDD/LTE-TDD/WCDMA; Micro SIM; LTE-FDD B1/3/5/7/8/20/28; LTE-TDD B38/40/41; WCDMA B1/5/8 |
| Solar Panel | 80W photovoltaic panel; tilt: 10° or 30° |
| Battery | 30Ah lithium, 10.8V, max output 12.6V, rated 500+ cycles |
| Power Supply Options | 12VDC ± 25% (coaxial), PoE 802.3af class 3, solar/battery system |
| Local Storage | MicroSD/SDHC/SDXC up to 256GB (32GB pre-installed), NAS (NFS, SMB/CIFS), ANR |
| Protection Rating | IP67, IK10, TVS 4000V lightning protection, wind resistance level 12 |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Camera Dimensions / Weight | 208.9 mm x 106 mm x 105.2 mm / 26.6 kg (full kit assembly) |
| Mount | Pole mount; camera pan ±180°, tilt -10° to +45° |
