Hikvision Ds-2txs2628-10p/qa/glt/ch30s80-kit Solar-powered Thermal Camera Kit (30ah Vbattery)
SKU: DS2TXS262810PQAGLTCH30S80
$4,227.00
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
2.5″ 1tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$287.61
Axis 2.5″ 2tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$293.46
Seagate Skyhawk SSD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$539.00
Seagate Skyhawk SSD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$759.00
Seagate St6000vx008 Skyhawk 6tb 3.5 Inch Sata Hard Drive
$1,279.00
Seagate Skyhawk SSD Surveillance 8tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$1,215.00
Seagate Skyhawk St10000vx0004 10tb 3.5 Inch Sata 6gb/s Surveillance Hard Drive
$1,485.00
Seagate Skyhawk Hasea16tb-shaisv2562 16tb 3.5 Inch Sata HDD 6gb/s 256mb Cache 7200rpm 26.11hx101.85wx146.99d (mm)
$1,695.00
Seagate Exos HDD 16tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,365.00
Western Digital Purple HDD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$495.00
Western Digital Wd33purz Wd Purple 3tb 3.5 Inch Sata Iii 6gb/s Surveillance HDD
$445.00
Western Digital Hawd-pp35-3tb1 Purple HDD Surveillance 3tb 3.5" Sata Iii (6gb/s) 5400 Rpm 256 Mb Cache
$495.00
Western Digital Purple HDD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$565.00
Western Digital Wd44purz Wd Purple Surveillance 4tb 3.5 Inch Sata HDD
$645.00
Western Digital Wd64purz Wd Purple HDD Surveillance 6tb 3.5 Inch Sata Iii 6gb/s 5400rpm
$895.00
Western Digital Wd85purz Purple HDD Surveillance 8tb 3.5 Inch Sata 6gb/s 5400 Rpm Cmr
$945.00
Western Digital Wd102purp Purple Pro SSD Surveillance 10tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,395.00
Western Digital Wd Purple Pro Wd141purp 14tb 3.5 Inch Sata Iii 6gb/s 7200rpm Surveillance HDD
$1,295.00
Western Digital Purple Pro SSD 18tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,495.00
Western Digital Wuh721816ale6l4 Ultrastar DC Hc550 HDD 16tb 3.5 Inch 7200rpm Sata 6gb/s HDD 512mb Buffer 26.1mm Z-height 0f38462
$1,695.00
Western Digital Ultrastar DC Hc550 16tb Sata 6gb/s 3.5 Inch 7200rpm Data Center HDD
$1,995.00
Hikvision Monitor Ds-d5022f2-1v2s 21.5 Inch FHD 100hz Va Monitor With Speaker, Hdmi, 6.5ms, Vesa 75×75
$190.50
Hikvision Ds-d5024f2-bv2s 23.8″ FHD Surveillance Monitor With Speaker
$225.60
Hikvision Ds-d5032f3-1v0s 32″ Full Hd Commercial Monitor Hdmi, VGA & Speakers
$463.11
Hikvision Ds-d5043f3-1v0s 43″ Commercial Monitor Full Hd Hdmi/vga/usb, Built-in Speaker
$687.75
Dahua 24"(23.8) 1920x1080 FHD LED Monitor 1 X HDMI Audio In Built-in Speaker
$271.55
Dahua 32"(31.5) 1920x1080 FHD LED Monitor 24/7 1 X HDMI 1 X VGA Built-in Speaker
$465.05
Dahua 43" 3840x2160 4K UHD LED Monitor 24/7 2 X Hdmi,1 X Vga,1 X USB Audio In Built-in Speaker
$879.36
Dahua 55" 3840x2160 4K UHD LED Monitor 24/07 2 X HDMI 1 X VGA 1 X Display Port Audio In Built-in Speaker
$2,459.70
Uniview 22" 1920x1080 FHD LED Monitor 1 X HDMI 1 X VGA Audio In
$298.12
Uniview Mw3232-v-k2 32 Inch FHD CCTV Monitor HDMI VGA Audio In Built-in Speaker
$559.24
Uniview 43" 3840x2160 4K UHD LED Monitor 24/7 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,189.44
Uniview 55" 3840x2160 4K UHD LED Monitor 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,513.98
Uniview 75" 3840x2160 4K UHD Monitor 1 X SD 2 X USB 1 X Display Port Audio In & Out Built-in Speaker
$5,324.82
Upgrades Subtotal:
$0.00

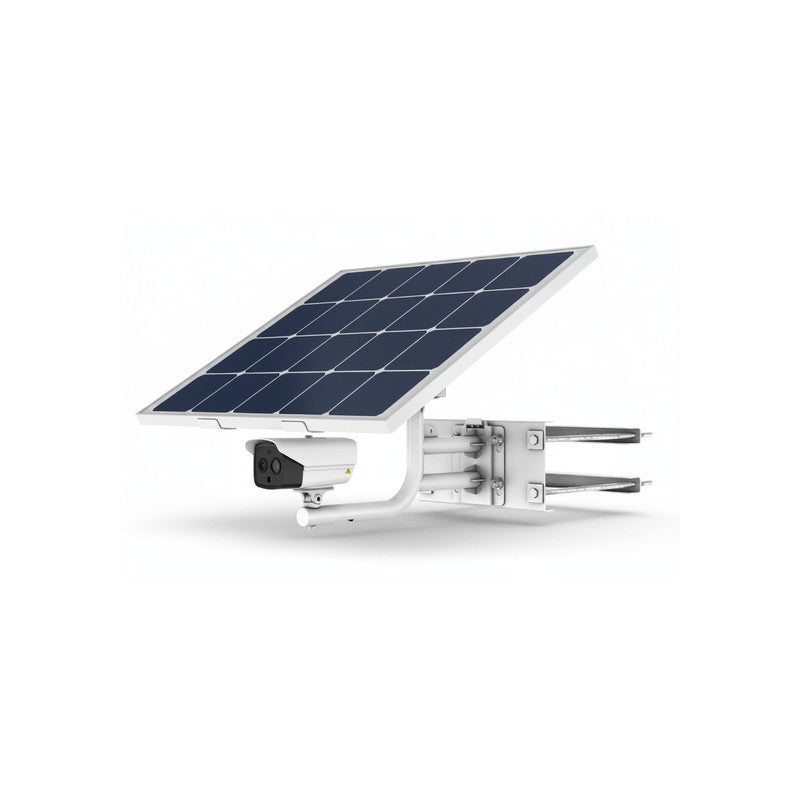

The Hikvision DS-2TXS2628-10P/QA/GLT/CH30S80-KIT is a self-contained solar-powered thermal camera system engineered for remote perimeter monitoring in off-grid environments. Designed for pole mounting at rural boundaries and industrial sites, the unit integrates bi-spectrum imaging with 4G LTE connectivity to deliver reliable surveillance without mains power or fixed network infrastructure.
Key Features
- Bi-spectrum imaging combining a 256 x 192 VOx uncooled thermal module with a 2688 x 1520 optical sensor for detailed situational awareness.
- Off-grid power system featuring an 80W photovoltaic panel and 30Ah lithium battery, with a thermal-only power draw of 2.73W.
- 4G LTE wireless transmission supporting LTE-FDD, LTE-TDD, and WCDMA via Micro SIM for remote data transfer without network cabling.
- Advanced VCA rules including line crossing and intrusion detection with classification for vehicles and humans.
- Temperature exception alarming across a range of -20°C to 150°C, suitable for early fire detection in high-risk areas.
- Integrated deterrence features including an embedded strobe light and audible alarm for immediate response to detected events.
- Robust IP67 and IK10 protection ratings with TVS 4000V lightning resistance for operation in harsh outdoor conditions.
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) |
| Thermal Resolution | 256 x 192 |
| Pixel Pitch | 12 um |
| NETD | 40 mK or less (@25°C, F1.0) |
| Thermal Focal Length / FOV | 9.7 mm / 18.0° x 13.5° (H x V) |
| Optical Sensor | 1/2.7″ Progressive Scan CMOS, 2688 x 1520 resolution |
| Optical Focal Length / FOV | 8 mm / 39.4° (H) x 22.1° (V) |
| IR Illumination Range | Up to 30 m (auto-adjusting intensity and angle) |
| Temperature Measurement Range | -20°C to 150°C (-4°F to 302°F), accuracy ±8°C |
| VCA Rules | Up to 8 rules: line crossing, intrusion, region entrance, region exiting; vehicle and human classification |
| Active Deterrence | Embedded strobe light (adjustable frequency), audible alarm (3 preset + 6 importable voice alerts) |
| Wireless Connectivity | 4G LTE-FDD / LTE-TDD / WCDMA, Micro SIM card |
| Solar Panel | 80W photovoltaic panel, tilt adjustable to 10° or 30° |
| Battery | 30Ah lithium, 10.8V, 12.6V max output, 500+ cycle life, approx. 3.3 kg |
| Power Consumption | 2.73W (thermal only), 2.97W (24hr average), 7.1W max (IR on) |
| Local Storage | MicroSD/SDHC/SDXC up to 256GB (32GB pre-installed), NAS, ANR |
| Protection Rating | IP67, IK10, TVS 4000V lightning protection, 12-level wind resistance |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Mount Type | Pole mount; camera tilt -10° to +45°, pan -180° to +180° |
| Camera Dimensions / Weight | 208.9 mm x 106 mm x 105.2 mm; total kit 26.6 kg (packaged 27.79 kg) |
