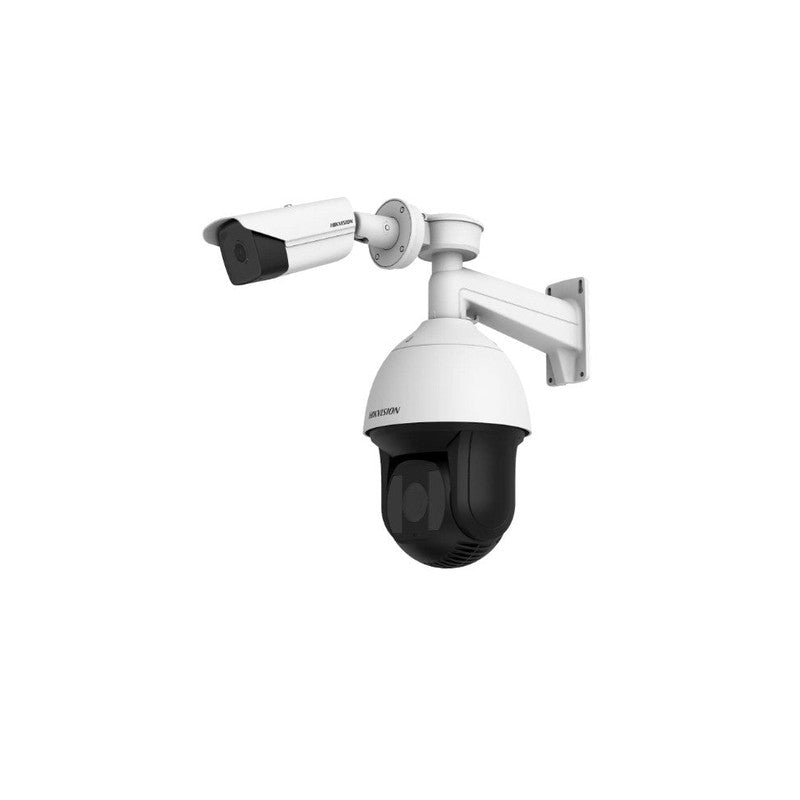

Hikvision Ds-2tx3636-25a/v1 Thermal Smart Linkage Tracking System
SKU: DS2TX363625AV1
$7,620.00
The Hikvision DS-2TX3636-25A/V1 Thermal Smart Linkage Tracking System integrates a high-sensitivity thermal sensor with a 36x optical zoom speed dome for wide-area perimeter surveillance. Engineered for environments where conventional cameras fail, this unit utilizes a fixed thermal module and an integrated tracking dome to monitor large open sites with reliable detection capabilities.
Key Features
- 384×288 resolution vanadium oxide uncooled focal plane array with NETD below 40mK
- Detects human heat signatures at up to 250m and vehicles at up to 750m regardless of lighting conditions
- Integrated 2MP speed dome with 36x optical zoom (5.7mm to 205.2mm focal length) and 16x digital zoom
- Automatic multi-target tracking supports up to 30 simultaneous targets with sub-one-second switch time
- Deep learning behaviour analysis includes line crossing, intrusion, and region entrance/exit detection
- Includes confirmed fire detection algorithm and temperature anomaly alarm for industrial hazard monitoring
- Optical dome features 120dB WDR and IR illumination with a range of up to 200m
Technical Specifications
| System – Tracking Mode | Manual / Auto |
| System – Multi-Target Tracking | Up to 30 targets simultaneously; human detection to 250m, vehicle detection to 750m |
| System – Switch Time | Less than 1 second |
| System – Linkage Rules | Intrusion detection, line crossing detection |
| Thermal – Image Sensor | Vanadium oxide uncooled focal plane arrays |
| Thermal – Max Resolution | 384 x 288 |
| Thermal – NETD | Less than 40mK (@25 degrees C, F#=1.0) |
| Thermal – Focal Length | 25mm |
| Thermal – Field of View | 14.88 x 11.19 degrees |
| Thermal – Response Waveband | 8 to 14 micrometres |
| Speed Dome – Image Sensor | 1/1.9″ Progressive Scan CMOS |
| Speed Dome – Max Resolution | 1920 x 1080 (2MP) |
| Speed Dome – Optical Zoom | 36x (5.7mm to 205.2mm focal length) |
| Speed Dome – Digital Zoom | 16x |
| Speed Dome – IR Distance | Up to 200m |
| Speed Dome – WDR | 120dB |
| Speed Dome – Min Illumination | Colour: 0.002 Lux @ F1.5 AGC ON; B/W: 0.0002 Lux @ F1.5 AGC ON; 0 Lux with IR |
| Speed Dome – Pan / Tilt Range | Pan: 360 degrees continuous; Tilt: -20 to 90 degrees with auto flip |
| Speed Dome – On-Board Storage | Micro SD/SDHC/SDXC up to 128GB, manual and alarm recording |
| Protection | IP66, TVS 6000V lightning protection, surge and voltage transient protection |
| Working Temperature | -40 to 65 degrees Celsius |
| Power Supply | 24V AC / 5A; max consumption 80W (IR and heater active) |
| Dimensions / Weight | 266.6mm x 573.5mm x 698.5mm; 10.89kg |
