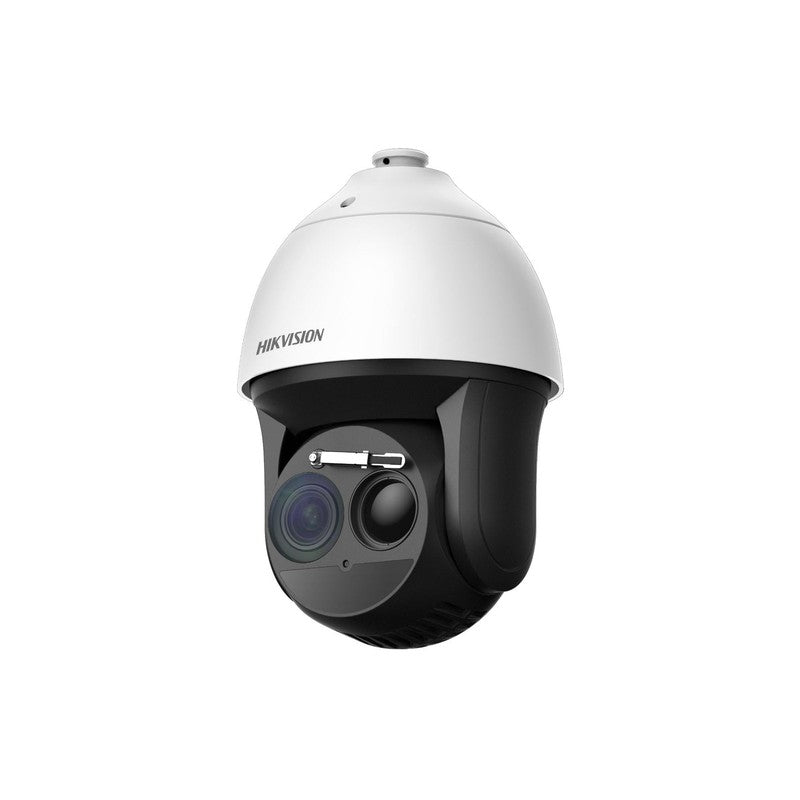

Hikvision Ds-2td4137t-9w Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
SKU: DS2TD4137T9W
$14,979.30
The Hikvision DS-2TD4137T-9W is a bi-spectrum network speed dome that integrates a 384×288 thermal detector with a 4MP optical camera for continuous perimeter security and fire prevention. Designed for large outdoor environments, this unit utilizes deep learning algorithms to provide reliable monitoring in conditions where standard optical cameras are ineffective.
Key Features
- 384×288 VOx UFPA thermal detector with 17 micrometer pixel pitch and NETD of 35mK or less
- 4MP optical camera channel for detailed visual identification alongside thermal data
- Fire and smoke detection with temperature exception alarms accurate to ±2°C or 2% of reading
- Temperature measurement range of -20°C to 150°C for industrial and fire prevention monitoring
- Deep learning analytics for line crossing, intrusion, and region entrance/exit detection
- Smart tracking modes including panorama tracking, event tracking, and multi-scene patrol
- Bi-spectrum PTZ design suitable for unmanned monitoring of critical infrastructure and large perimeters
Technical Specifications
| Product Model | DS-2TD4137T-9W |
| Camera Type | Bi-spectrum thermographic and optical PTZ speed dome |
| Thermal Detector Resolution | 384 x 288 |
| Output Image Resolution | 1920 x 1080 |
| Pixel Pitch | 17 micrometer |
| Detector Type | VOx UFPA |
| NETD | 35mK or less (at 25 degrees Celsius, F# = 1.1) |
| Thermal Lens | 9.1mm focal length |
| Optical Channel Resolution | 4MP, 1/1.8 inch progressive scan CMOS |
| Digital Zoom | Up to 8x |
| Temperature Measurement Range | -20 degrees Celsius to 150 degrees Celsius (high-temperature mode available) |
| Temperature Measurement Accuracy | Plus or minus 2 degrees Celsius or plus or minus 2% of reading |
| Thermal AGC Modes | Linear, histogram, self-adaptive; DDE, 3D DNR |
| Smart Tracking | Panorama tracking, event tracking, multi-scene patrol tracking |
| Perimeter Protection | Line crossing, intrusion, region entrance and exit (deep learning algorithm) |
| Fire and Smoke Detection | Supported via thermal channel algorithm |
| Electronic Image Stabilisation (EIS) | Supported on thermal channel (note: conflicts with intelligent functions when active) |
| Weatherproofing | IP66 |
| Operating Temperature | -40 degrees Celsius to 65 degrees Celsius |
| Video Compression | H.265+, H.264 |
| Local Storage | MicroSD/SDHC/SDXC up to 256GB |
| Power Supply | 12V DC, PoE 802.3at |
| Dimensions | 304 x 104 x 98 mm |
| Weight | Approximately 2.5 kg |
| Network Protocol | ONVIF compliant |
| Thermal Detector Warranty | 10-year guarantee |
| Lead Time | 7-8 weeks |
