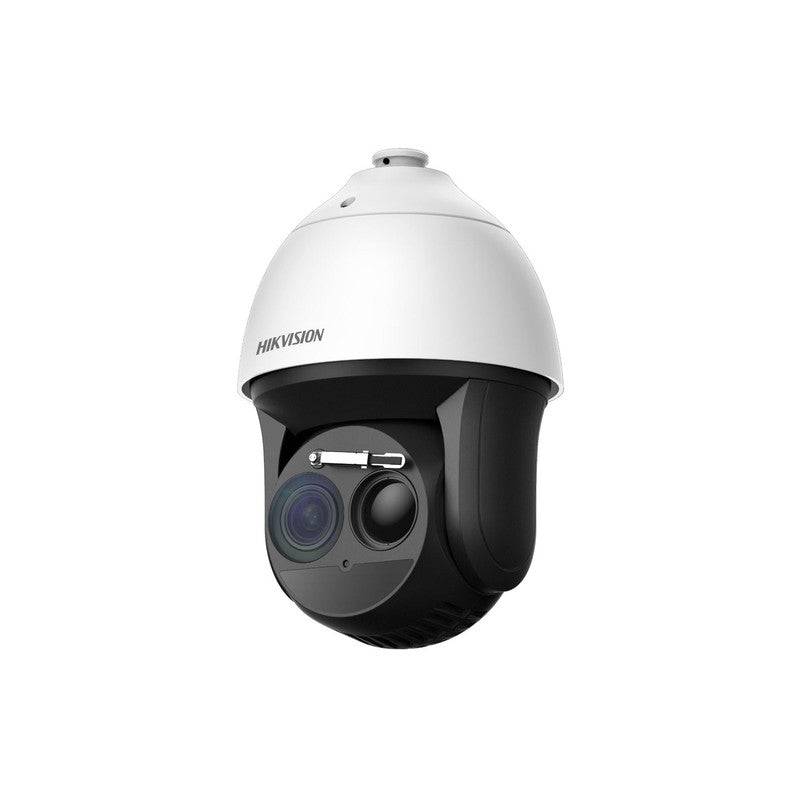

Hikvision Ds-2td4137t-25w Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
SKU: DS2TD4137T25W
$10,510.36
The Hikvision DS-2TD4137T-25W is a bi-spectrum network speed dome designed for wide-area thermal surveillance. It integrates a 384 x 288 VOx UFPA thermal detector with a 2-megapixel optical channel within a single PTZ-mounted housing to provide simultaneous heat-based detection and visible imaging.
Key Features
- Bi-spectrum imaging combining a 384 x 288 VOx UFPA thermal detector with a 2-megapixel optical channel
- 25mm thermal lens for consistent thermal field of view
- Deep learning-based perimeter protection with line crossing, intrusion, and region entrance/exit detection
- Dedicated fire and smoke detection algorithm paired with temperature exception alarming
- Smart tracking modes supporting panorama tracking, event tracking, and multi-scene patrol
- 10-year guarantee on the thermal detector
- Network speed dome form factor for PTZ-controlled wide-area oversight
Technical Specifications
| Model | DS-2TD4137T-25W |
| Camera Type | Bi-spectrum thermographic and optical network speed dome |
| Thermal Detector Type | VOx UFPA |
| Thermal Resolution | 384 x 288 |
| Thermal Pixel Pitch | 17 μm |
| NETD | 35 mK (25°C, F# = 1.1) |
| Thermal Lens Focal Length | 25mm |
| Output Image Resolution | 1920 x 1080 |
| Optical Channel Resolution | 2 Megapixel |
| Thermal AGC Modes | Linear, histogram, self-adaptive |
| Image Processing | DDE, 3D DNR |
| Electronic Image Stabilisation (EIS) | Supported on thermal channel (conflicted with intelligent functions) |
| Perimeter Protection Functions | Line crossing, intrusion, region entrance, region exit (deep learning) |
| Fire and Smoke Detection | Yes, onboard algorithm |
| Temperature Exception Alarm | Yes |
| Smart Tracking Modes | Panorama tracking, event tracking, multi-scene patrol tracking |
| Detector Warranty | 10 years |
| Lead Time | 7-8 weeks |
