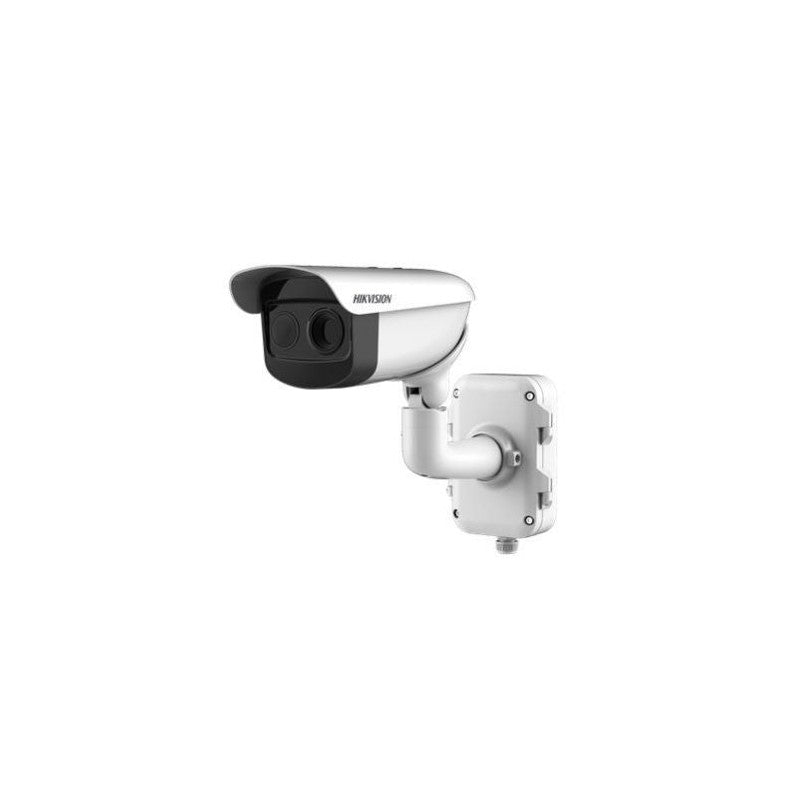

Hikvision Ds-2td2836-25 Thermal Bullet Camera, Netd <40mk, 384x288, Ip66, 24vac, 25mm
SKU: DS2TD283625
$8,138.31
The Hikvision DS-2TD2836-25 is a dual-spectrum thermal bullet camera designed for high-precision perimeter security and industrial monitoring. It integrates a 384x288 uncooled vanadium oxide thermal sensor with a 1080p optical channel to provide detailed bi-spectrum image fusion for enhanced target identification in low-light or adverse weather conditions.
Key Features
- 384x288 thermal sensor with 17μm detector pitch and NETD < 40mK for high-sensitivity heat detection
- 25mm thermal lens offering a 14.88° x 11.19° field of view and a minimum focusing distance of 13m
- 1/2.8" 1080p progressive scan CMOS optical sensor with 120dB WDR and 0.0001 Lux minimum illumination
- Bi-spectrum image fusion and Picture-in-Picture modes to overlay thermal data onto high-resolution optical footage
- Temperature measurement capabilities ranging from -20°C to 150°C with ±8°C accuracy
- Integrated infrared illuminator with a range of up to 100m for effective night vision support
- IP66-rated housing designed for robust outdoor performance against dust and water ingress
Technical Specifications
| Thermal Module | ||
|---|---|---|
| Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays | |
| Max. Resolution: | 384*288 | |
| Detector Pitch: | 17um | |
| Response Wavebond: | 8um to 14um | |
| NETD: | < 40mk(@25°C,F#=1.0) | |
| Lens (focal length): | 25mm | |
| MRAD: | 0.68 mrad | |
| Field of View: | 14.88°x 11.19° | |
| Min. Focusing Distance: | 13m | |
| F number: | 1.0 | |
