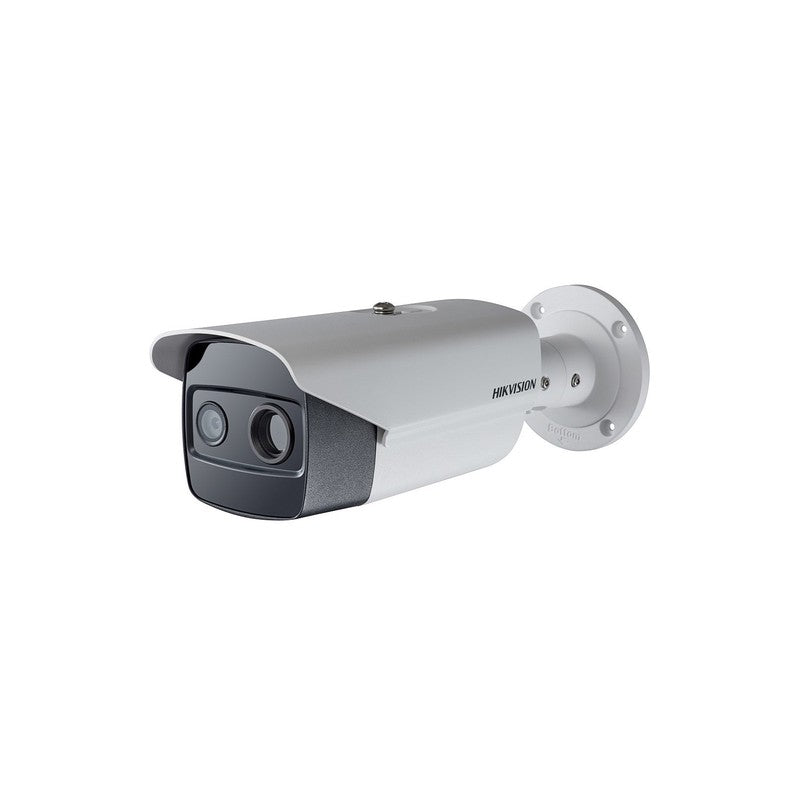

Hikvision Ds-2td2636-15 Deepinview Bi-spectrum Thermal Bullet Camera, 40m Ir, 384×288, 15mm
SKU: DS2TD263615
$7,338.03
The Hikvision DS-2TD2636-15 is a Deepinview bi-spectrum thermal bullet camera designed for high-precision perimeter monitoring and industrial temperature analysis. It integrates a 15mm thermal lens with a 1/2.8-inch progressive scan CMOS optical sensor to provide fused imagery and accurate thermal data within a single housing.
Key Features
- Bi-spectrum imaging with 384×288 thermal resolution and 1080p optical video support
- 15mm thermal lens providing a 24.2°×18.4° field of view and 2.5m minimum focusing distance
- Temperature measurement range of -20°C to 150°C with ±8°C accuracy
- Smart VCA capabilities including line crossing, intrusion, and region entrance/exiting detection
- Fire detection support with up to 10 configurable fire points
- Up to 500m infrared range with auto-adjusting intensity and angle
- Deepinview image fusion and picture-in-picture modes for combined thermal and optical analysis
Technical Specifications
| Thermal Module | ||
|---|---|---|
| Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays | |
| Max. Resolution: | 384*288 | |
| Detector Pitch: | 17um | |
| Response Wavebond: | 8um to 14um | |
| NETD: | < 40mk(@25°C,F#=1.0) | |
| Lens (focal length): | 15mm | |
| MRAD: | 1.13 mrad | |
| Field of View: | 24.2°× 18.4° | |
| Min. Focusing Distance: | 2.5m | |
| F number: | 1.0 | |
UD05087B A Baseline User Manual of Thermal Optical Bi spectrum Network Bullet Camera V5.5.0 20180201(1).pdf
UD01791B B Baseline Quick Start Guide of Thermal Optical Bi spectrum Network Bullet Camera V5.4.16 20171206(1).pdf
