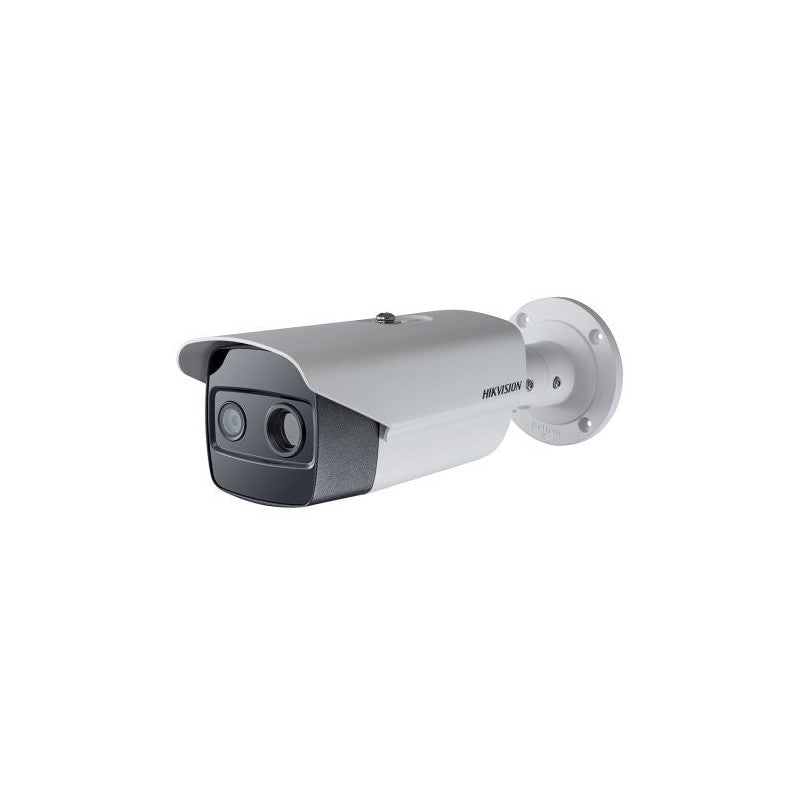

Hikvision Ds-2td2636-10 Deepinview Bi-spectrum Thermal Bullet Camera, 40m Ir, 384×288, 10mm
SKU: DS2TD263610
$28,843.80
The Hikvision DS-2TD2636-10 Deepinview Bi-spectrum Thermal Bullet Camera combines a 384×288 uncooled vanadium oxide thermal sensor with a 1080p optical channel for comprehensive perimeter surveillance. This dual-spectrum device features a 10mm thermal lens and 40m infrared illumination, enabling precise temperature measurement and fire detection capabilities within a single housing.
Key Features
- Bi-spectrum imaging with 384×288 thermal resolution (17µm detector pitch) and 1920×1080p optical resolution
- Thermal lens with 10mm focal length, 37.7°×28.7° field of view, and NETD < 40mK
- Optical lens with 6mm focal length, 52.8°–30.0° wide-tele field of view, and 0.002 lux color sensitivity
- Temperature measurement range of -20°C to 150°C with ±8°C accuracy and support for 21 measurement rules
- Fire detection capability supporting 10 distinct fire points for early hazard identification
- 40m infrared illumination range with auto-adjusting intensity and angle for low-light visibility
- Video compression via H.264/MJPEG and H.264+ with thermal stream output at 50fps
- Network connectivity supporting PoE, IPv4/IPv6, RTSP, and ONVIF protocols for seamless integration
Technical Specifications
| Thermal Module | ||
|---|---|---|
| Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays | |
| Max. Resolution: | 384*288 | |
| Detector Pitch: | 17um | |
| Response Wavebond: | 8um to 14um | |
| NETD: | < 40mk(@25°C,F#=1.0) | |
| Lens (focal length): | 10mm | |
| MRAD: | 1.70 mrad | |
| Field of View: | 37.7°× 28.7° | |
| Min. Focusing Distance: | 1m | |
| F number: | 1.0 | |
