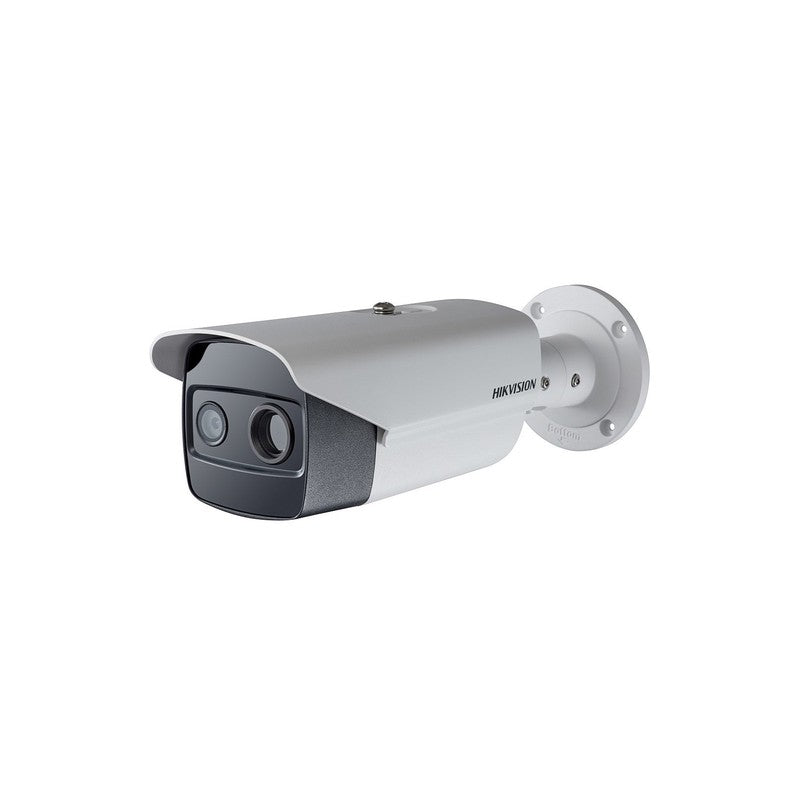

Hikvision Ds-2td2617-6/qa Thermal Heatpro Cameras Dual Lens 6mm
SKU: DS2TD26176QA
$829.32
The Hikvision DS-2TD2617-6/QA Thermal Heatpro Cameras Dual Lens 6mm is a dual-lens bi-spectrum bullet camera designed for perimeter protection in low-light and challenging environmental conditions. This Hikvision unit integrates a 160×120 thermal sensor with a 4MP optical module within a single outdoor housing to provide reliable threat detection independent of visible light availability.
Key Features
- Dual-lens bi-spectrum system combining a 6.2mm thermal lens (25.0°x18.7° FOV) and an 8mm optical lens with 2688×1520 resolution.
- Onboard VCA analytics supporting up to 8 rules for line crossing, intrusion, region entrance, and region exiting detection.
- Active deterrence capabilities including a white light strobe with up to 40m range and configurable audio alerts from 2 preset or 6 importable voice files.
- Temperature measurement functionality across 21 programmable rules, suitable for industrial sites and storage facility monitoring.
- 120dB WDR and 40m IR range on the optical module to ensure usable visual detail in high-contrast scenes.
- IP66 ingress protection rating with TVS 6000V lightning protection for robust outdoor deployment.
- Operating temperature range of -40°C to 65°C, designed for demanding environmental conditions.
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Arrays (VOx UFPA) |
| Thermal Resolution | 160×120 |
| Pixel Pitch | 17 μm |
| NETD | Less than 40 mK at 25°C, F#1.1 |
| Thermal Focal Length | 6.2 mm |
| Thermal Field of View | 25.0° x 18.7° (H x V) |
| Spectral Range | 8 μm to 14 μm |
| Optical Sensor | 1/2.7″ Progressive Scan CMOS |
| Optical Resolution | 2688×1520 (4MP) |
| Optical Focal Length | 8 mm, F1.6 |
| Optical Field of View | 39.42° x 22.14° (H x V) |
| IR Range | Up to 40 m |
| WDR | 120 dB |
| Temperature Measurement Range | -20°C to 150°C |
| Temperature Accuracy | ±8°C |
| VCA Rules | Up to 8 rules: line crossing, intrusion, region entrance, region exiting |
| White Light / Audio Alarm Range | Up to 40 m |
| Video Compression | H.265/H.264 (main stream), H.265/H.264/MJPEG (sub-stream) |
| Local Storage | MicroSD/SDHC/SDXC up to 256 GB, NAS (NFS, SMB/CIFS), ANR |
| Power Supply | 12 VDC ±25% or PoE 802.3af (Class 3), max 6.5 W |
| Protection Rating | IP66, TVS 6000V lightning and surge protection |
| Operating Temperature | -40°C to 65°C |
| Dimensions / Weight | 358.3 x 113.5 x 115.2 mm, approx. 1.76 kg |
| Interfaces | RJ45 100M Ethernet, RS-485, 2 alarm inputs, 2 alarm outputs, 3.5mm audio input, analog BNC output |
