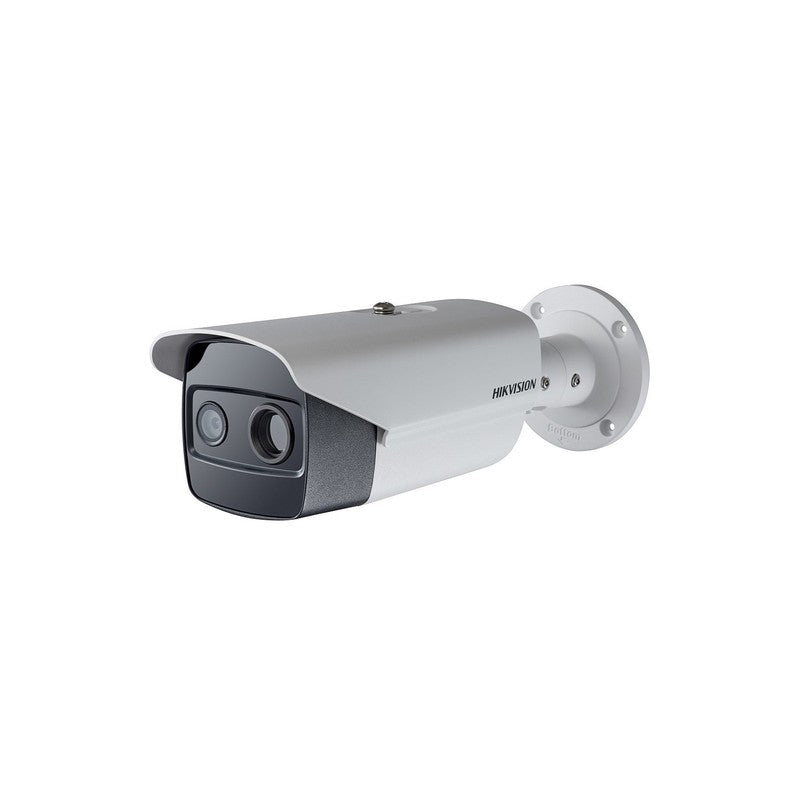

Hikvision Ds-2td2617-3/qa Thermal Heatpro Cameras Dual Lens 3mm
SKU: DS2TD26173QA
$829.32
The Hikvision DS-2TD2617-3/QA Thermal Heatpro Cameras Dual Lens 3mm is a dual-lens thermal bullet camera engineered for perimeter detection in unlit industrial sites, substations, and large outdoor compounds. By pairing a 160×120 VOx uncooled focal plane array thermal sensor with a 4MP optical module, this unit provides reliable heat signature detection in complete darkness and adverse weather conditions where conventional IR cameras fail.
Key Features
- 160×120 VOx uncooled focal plane array thermal sensor with NETD below 40mK for detection in total darkness and light obscurants
- 4MP optical verification module featuring a 1/2.7″ progressive scan CMOS sensor and 2688×1520 resolution video
- Thermal field of view of 50.0°×37.2° and optical field of view of 84.0°×44.8° with a 4mm lens
- 120dB WDR and minimum illumination of 0.0089 lux to ensure usable detail footage for event verification
- Supports up to 8 VCA rules including line crossing, intrusion, region entrance, and region exiting
- Active deterrence system with white light strobe up to 40m and support for 2 preset or 6 user-importable audio alerts
- Up to 40m IR range on the optical module for detailed identification footage once an alert is triggered
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) |
| Thermal Resolution | 160 × 120 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | Less than 40 mK (at 25°C, F# = 1.1) |
| Thermal Focal Length / FOV | 3.1 mm / 50.0° × 37.2° (H × V) |
| Optical Sensor | 1/2.7″ Progressive Scan CMOS |
| Optical Resolution | 2688 × 1520 (4MP) |
| Optical Focal Length / FOV | 4 mm / 84.0° × 44.8° (H × V) |
| WDR | 120 dB |
| IR Range | Up to 40 m (auto-adjusted intensity and angle) |
| White Light Range | Up to 40 m with adjustable flashing frequencies |
| Temperature Measurement Range | -20°C to 150°C, accuracy ±8°C |
| Temperature Measurement Rules | 21 rules total: 10 points, 10 areas, 1 line |
| VCA | Line crossing, intrusion, region entrance, region exiting – up to 8 rules |
| Video Compression | H.265 / H.264 (main stream); H.265 / H.264 / MJPEG (sub-stream) |
| Local Storage | MicroSD/SDHC/SDXC up to 256 GB, NAS (NFS, SMB/CIFS), ANR |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af, Class 3), max 6.5 W |
| Protection | IP66, TVS 6000V lightning, surge, and voltage transient protection |
| Operating Temperature | -40°C to 65°C |
| Dimensions / Weight | 358.3 mm × 113.5 mm × 115.2 mm / approx. 1.76 kg |
