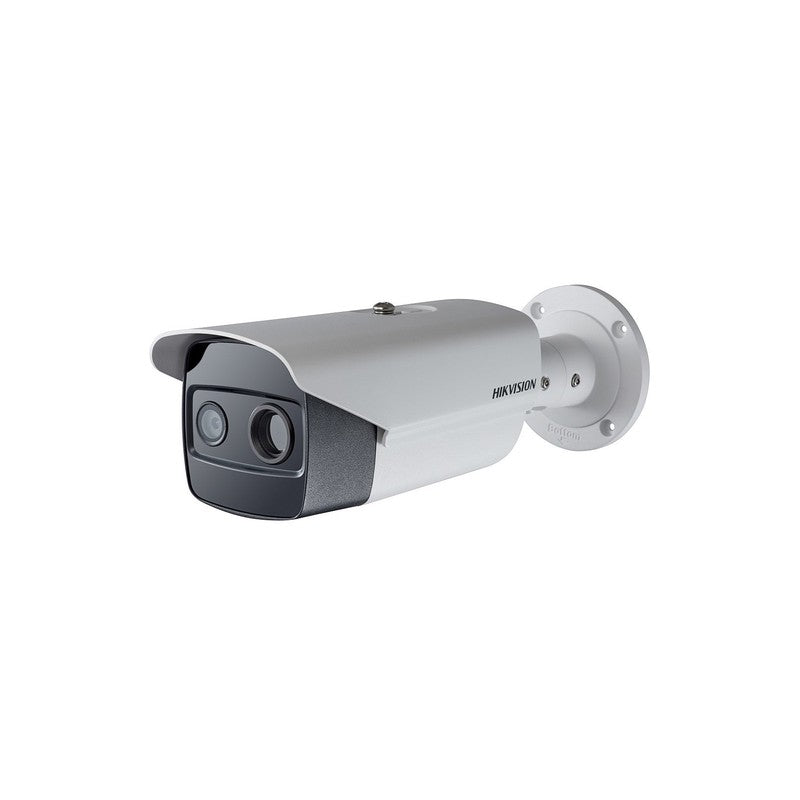

Hikvision Ds-2td2617-10/qa Thermal Heatpro Cameras Dual Lens 10mm
SKU: DS2TD261710QA
$829.32
The Hikvision DS-2TD2617-10/QA Thermal Heatpro Cameras Dual Lens 10mm is a dual-sensor bullet camera engineered for outdoor perimeter security, integrating a 160×120 VOx uncooled focal plane thermal module with a 4MP optical channel. Designed for long-range detection along fence lines and access roads, this unit operates independently of ambient light conditions while providing high-resolution visual verification of detected targets.
Key Features
- 160×120 VOx uncooled focal plane thermal sensor with NETD below 40 mK for reliable heat signature detection in darkness or fog
- 4MP 1/2.7-inch progressive scan CMOS optical sensor delivering 2688×1520 resolution with 120dB Wide Dynamic Range
- 9.7mm thermal focal length with a narrow 15.96° x 12.00° field of view optimized for long-distance perimeter monitoring
- VCA analytics supporting up to 8 rules for line crossing, intrusion, region entrance, and region exiting on the thermal channel
- Temperature measurement capabilities across 21 configurable rules covering points, areas, and lines for heat exception monitoring
- Integrated white light visual alarm and configurable audio alarm triggered upon rule breach
- IP66 weather protection rating and TVS 6000V lightning protection for durable outdoor deployment
Technical Specifications
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) |
| Thermal Resolution | 160 x 120 |
| Pixel Pitch | 17 um |
| NETD | Less than 40 mK (at 25°C, F# = 1.1) |
| Thermal Focal Length | 9.7mm |
| Thermal Field of View | 15.96° x 12.00° (H x V) |
| Spectral Range | 8 um to 14 um |
| Optical Sensor | 1/2.7-inch Progressive Scan CMOS |
| Optical Resolution | 2688 x 1520 (4MP) |
| Optical Focal Length | 8mm |
| Optical Field of View | 39.42° x 22.14° (H x V) |
| Wide Dynamic Range | 120 dB |
| IR / White Light Range | Up to 40m (IR); up to 40m (white light visual alarm) |
| VCA Analytics | Line crossing, intrusion, region entrance, region exiting; up to 8 rules total |
| Temperature Measurement | -20°C to 150°C, accuracy plus or minus 8°C; 21 rules (10 points, 10 areas, 1 line) |
| Alarm Outputs | 2 alarm outputs; white light visual alarm; built-in audio alarm with 2 preset and 6 importable voice alerts |
| Power Supply | 12VDC (plus or minus 25%), PoE 802.3af Class 3 (42.5V to 57V), max 6.5W |
| Storage | MicroSD/SDHC/SDXC up to 256GB, NAS (NFS, SMB/CIFS), ANR |
| Protection Rating | IP66, TVS 6000V lightning and surge protection |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Dimensions / Weight | 358.3mm x 113.5mm x 115.2mm, approx. 1.76 kg |
