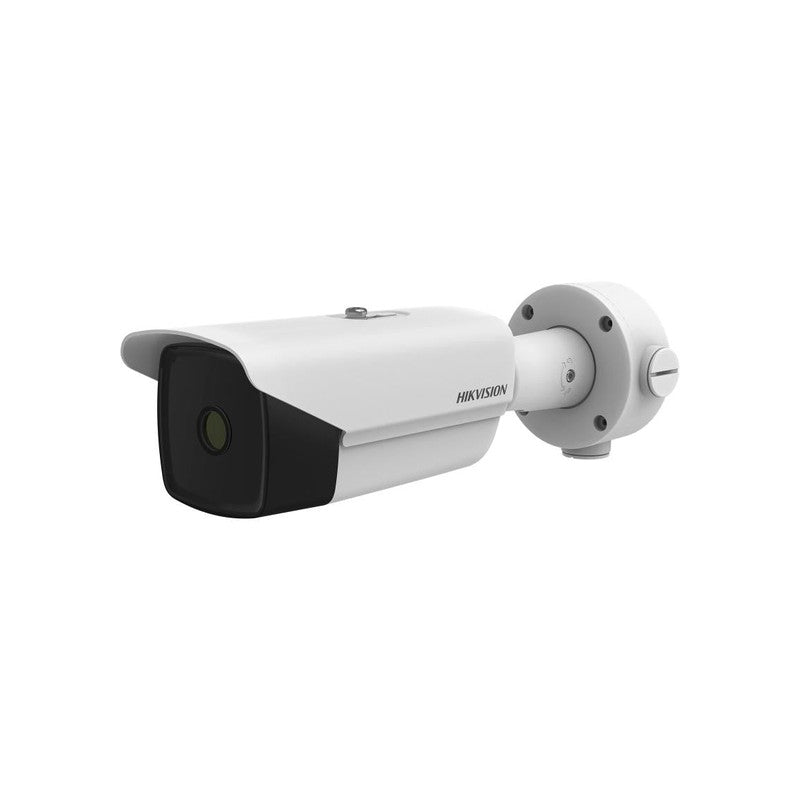

Hikvision Ds-2td2167t-7/p Thermal Thermographic Network Bullet Camera
SKU: DS2TD2167T7P
$14,113.50
The Hikvision DS-2TD2167T-7/P is a thermographic network bullet camera engineered for hazardous and industrial environments, providing high-sensitivity thermal detection where standard optical cameras cannot operate. Housed in a 316L stainless steel enclosure, this unit delivers reliable fire monitoring and temperature analysis within explosive and corrosive atmospheres.
Key Features
- 640 x 512 VOx UFPA thermal sensor with 17 μm pixel pitch and NETD below 35 mK for high-resolution thermal imaging
- 7 mm fixed lens supporting VCA detection ranges of up to 49 m for people and 147 m for vehicles
- Dedicated fire detection algorithm and temperature exception alarming across a range of -20°C to 550°C with ±2°C or ±2% accuracy
- 316L stainless steel enclosure with ATEX, IECEx, and NEMA 4X certifications for use in hazardous and corrosive zones
- Built-in Video Content Analysis (VCA) for line crossing, intrusion, and region entrance/exit detection
- 10-year thermal detector warranty reflecting long-term reliability for critical infrastructure installations
Technical Specifications
| Model | DS-2TD2167T-7/P |
| Sensor Type | VOx UFPA |
| Thermal Resolution | 640 x 512 |
| Pixel Pitch | 17 μm |
| NETD | <35 mK (@25°C, F#=1.0) |
| Focal Length | 7 mm |
| Temperature Measurement Range | -20°C to 550°C (-4°F to 1022°F) |
| Temperature Accuracy | ±2°C or ±2% (whichever is greater) |
| Colour Palettes | 15 adjustable palettes |
| Image Processing | Linear, histogram, self-adaptive AGC, DDE, 3D DNR |
| VCA Human Detection Range | 49 m |
| VCA Vehicle Detection Range | 147 m |
| Perimeter VCA Functions | Line crossing detection, intrusion detection, region entrance detection, region exit detection |
| Fire Detection | Fire detection algorithm included |
| Enclosure Material | 316L stainless steel |
| Certifications | ATEX, IECEx, NEMA 4X |
| Thermal Detector Warranty | 10 years |
| Lead Time | 6-8 weeks |
