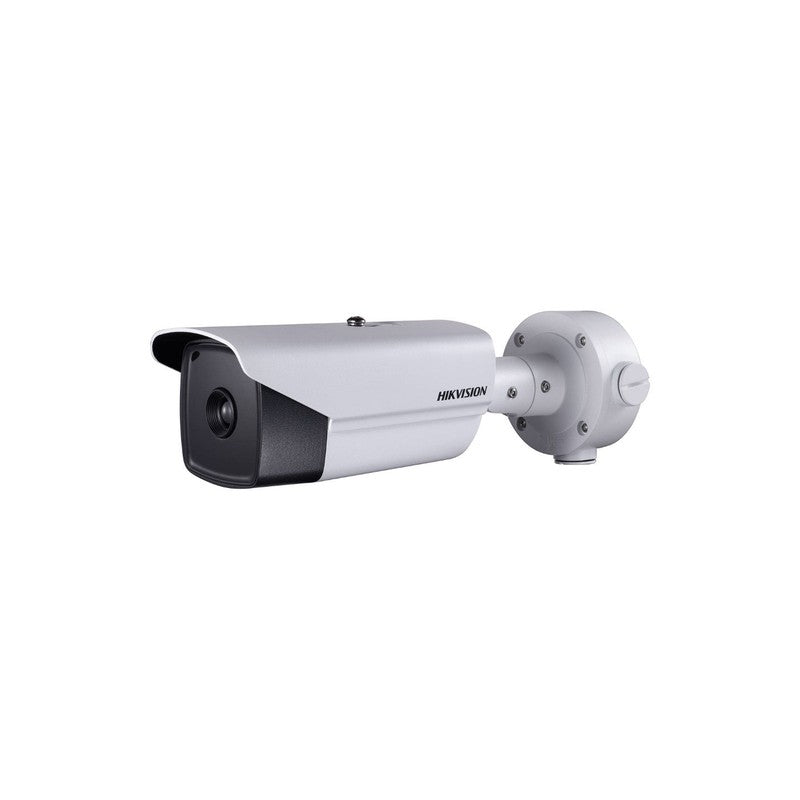

Hikvision Ds-2td2137 35/v1 Deepinview Thermal Bullet Camera, Ip66 384×288

The Hikvision DS-2TD2137-35/V1 Deepinview Thermal Bullet Camera is an IP66-rated surveillance unit designed for long-range thermal detection and precise temperature monitoring in outdoor environments. This device utilizes a 35mm lens and a 384×288 resolution sensor to facilitate reliable fire detection and perimeter intrusion analysis.

Key Features

• Utilizes a Vanadium Oxide uncooled focal plane array with a 17μm detector pitch and a response waveband of 8μm to 14μm.
• Equipped with a 35mm F1.0 lens providing a 10.66° × 8.002° field of view and a minimum focusing distance of 40m.
• Supports temperature measurement across a range of -20°C to 150°C with an accuracy of ±8°C for precise thermal monitoring.
• Incorporates Deepinview smart functions including 4 VCA rule types and 10 dedicated fire detection points for automated threat identification.
• Delivers 50fps video streams in 384×288 resolution using H.265/H.264/MJPEG compression for efficient bandwidth management.
• Features 2-channel alarm inputs and 2-channel relay outputs to facilitate integration with external security systems and automated response actions.
• Includes built-in Micro SD/SDHC/SDXC storage supporting up to 128GB for local manual and alarm-based recording.
