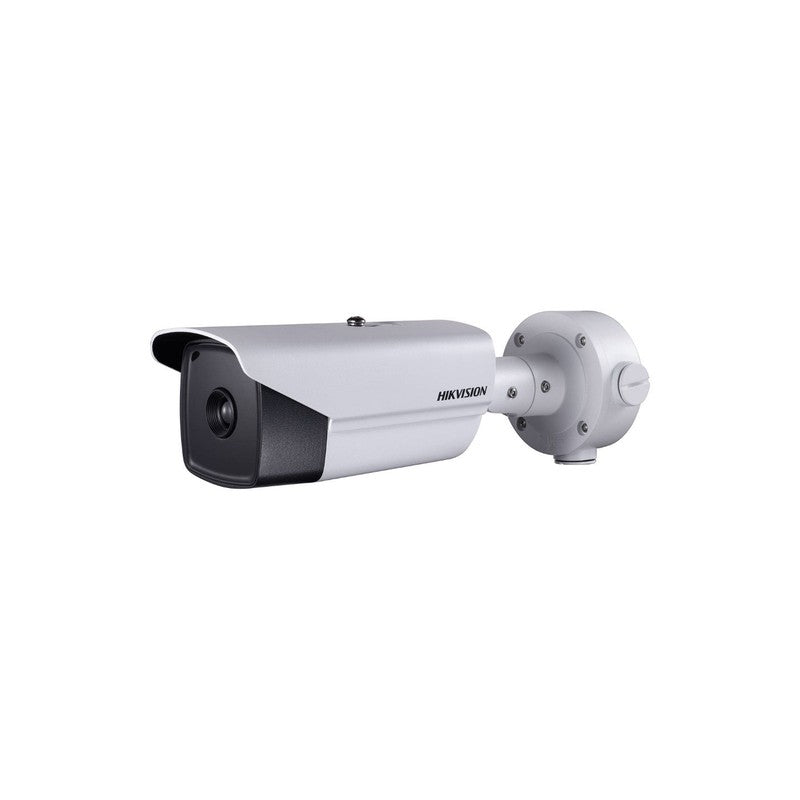

Hikvision Ds-2td2137 25/v1 Deepinview Thermal Bullet Camera, Ip66 384×288

The Hikvision DS-2TD2137-25/V1 Deepinview Thermal Bullet Camera is a specialized surveillance device engineered for precise thermal monitoring and security analytics. Featuring a 25mm focal length lens and a 384×288 resolution sensor, this IP66-rated unit supports advanced VCA rules and temperature measurement capabilities for industrial and perimeter applications.

Key Features

• Vanadium Oxide uncooled focal plane array sensor with a 17μm detector pitch and NETD of < 35mK
• 25mm lens providing a 14.88° × 11.19° field of view with a minimum focusing distance of 13m
• Supports 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting) with up to 8 active rules
• Temperature measurement range of -20°C to 150°C with an accuracy of ±8°C, supporting 10 points, 10 regions, and 1 line
• Fire detection capability supporting up to 10 fire points for early warning systems
• Video compression via H.265/H.264/MJPEG with main, sub, and third streams all operating at 50fps
• IP66-rated housing suitable for outdoor installation with built-in Micro SD/SDHC/SDXC card slot for up to 128GB of onboard storage
• Includes 2-channel alarm inputs, 2-channel relay outputs, and 1-channel audio input for comprehensive system integration
