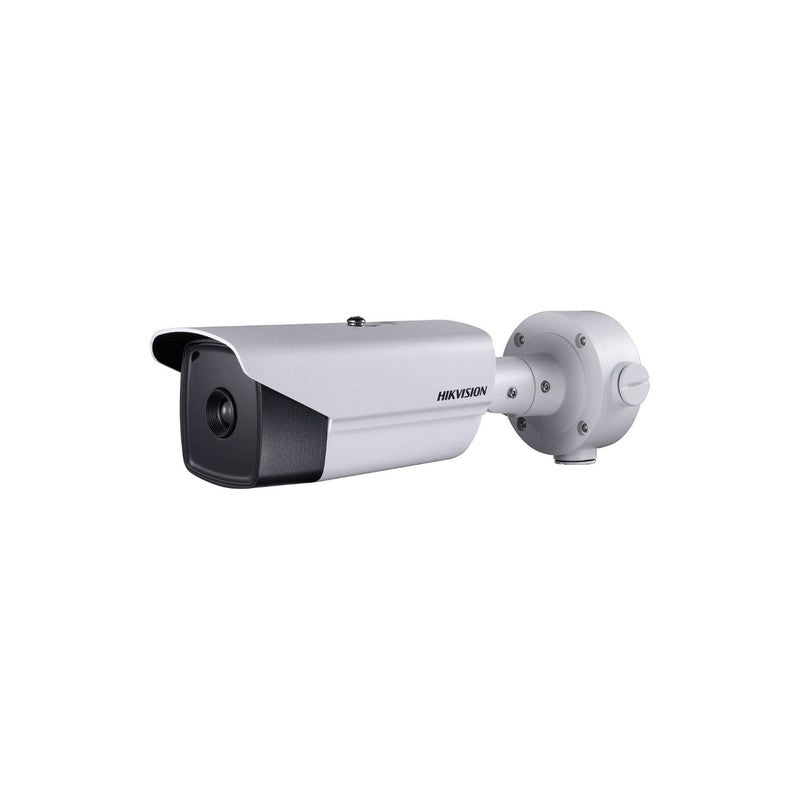

Hikvision Ds-2td2137 15/v1 Deepinview Thermal Bullet Camera, Ip66 384×288
SKU: DS2TD213715V1
$6,655.92
The Hikvision DS-2TD2137-15/V1 Deepinview Thermal Bullet Camera is a 15mm focal length thermal imaging device engineered for precise perimeter monitoring and temperature analysis. This IP66-rated unit utilizes a Vanadium Oxide uncooled focal plane array to deliver advanced VCA rules and fire detection capabilities for industrial and commercial security environments.
Key Features
- Vanadium Oxide uncooled focal plane array with 384×288 resolution and 17um detector pitch
- 15mm lens providing a 24.55° x 18.54° field of view and 2.5m minimum focusing distance
- Temperature measurement range of -20°C to 150°C with ±8°C accuracy
- Supports 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, Region Exiting) and 10 fire detection points
- IP66 ingress protection rating for outdoor durability
- Built-in Micro SD/SDHC/SDXC card slot supporting up to 128GB of onboard storage
- 2-ch alarm inputs and 2-ch relay outputs for configurable alarm linkage actions
- 10M/100M Ethernet interface with H.265/H.264/MJPEG video compression
Technical Specifications
| Thermal Module | ||
|---|---|---|
| Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays | |
| Max. Resolution: | 384*288 | |
| Detector Pitch: | 17um | |
| Response Wavebond: | 8um to 14um | |
| NETD: | < 35mk(@25°C,F#=1.0) | |
| Lens (focal length): | 15mm | |
| MRAD: | 1.13 mrad | |
| Field of View: | 24.55°x 18.54° | |
| Min. Focusing Distance: | 2.5m | |
| F number: | 1.0 | |
