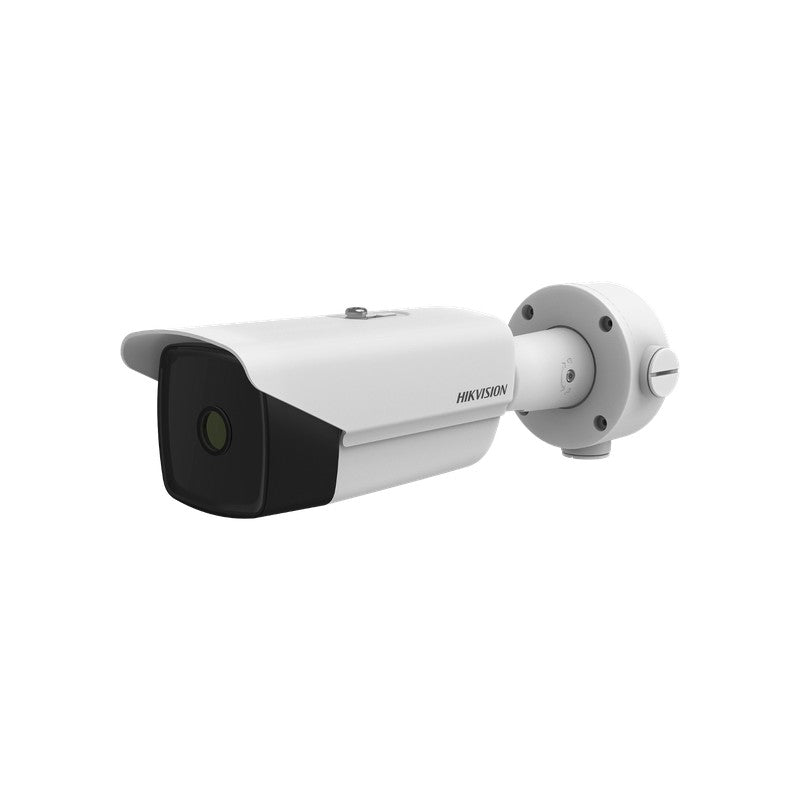

Hikvision Ds-2td2136t-10 Thermographic Network Bullet Camera
SKU: DS2TD2136T10
$7,152.00
The Hikvision DS-2TD2136T-10 is a thermographic network bullet camera designed for heat signature detection and temperature anomaly monitoring in low-light environments. Utilizing a high-sensitivity Vanadium Oxide uncooled focal plane array, this device provides reliable thermal surveillance for critical infrastructure, industrial sites, and perimeter protection.
Key Features
- 384 × 288 resolution thermal sensor with a 17 μm pixel pitch and NETD below 40mK for fine thermal detail capture.
- 10mm lens providing a 37.20° × 28.33° field of view for close-to-mid range surveillance.
- Dynamic fire detection engine capable of identifying up to 10 simultaneous fire points within the scene.
- Temperature measurement range of -20°C to 550°C with accuracy within ±2°C or ±2%.
- Configurable temperature monitoring with up to 21 rules covering 10 individual points, 10 regions, and 1 line.
- Advanced image processing features including Adaptive AGC, DDE, and 3D DNR to maintain consistent imagery in varying conditions.
- Perimeter Video Content Analysis (VCA) supporting up to 8 configurable rules.
Technical Specifications
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 384 × 288 |
| Pixel Pitch | 17 μm |
| NETD | Less than 40mK (@25°C, F#=1.0) |
| Focal Length | 10mm |
| Aperture | F1.0 |
| Field of View | 37.20° × 28.33° (H × V) |
| MRAD | 1.70 mrad |
| Response Waveband | 8 μm to 14 μm |
| Min. Focusing Distance | 1 m |
| Temperature Range | -20°C to 550°C (-4°F to 1,022°F) |
| Temperature Accuracy | Max (±2°C, ±2%) |
| Temperature Measurement Rules | 21 rules: 10 points, 10 regions, 1 line |
| Fire Detection | Dynamic fire point detection, up to 10 fire points |
| VCA Analytics | Line crossing, intrusion, region entrance, region exiting – up to 8 rules |
| Image Processing | Adaptive AGC, DDE, 3D DNR |
| Video Compression | H.265/H.264/MJPEG, H.265+/H.264+ (Baseline/Main/High Profile) |
| Frame Rate | 50fps at 384 × 288 (main, sub, and third streams) |
| Alarm I/O | 2-ch alarm inputs (0-5V DC), 2-ch relay outputs |
| Local Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Power Options | 24VAC ±25%, 12VDC ±20%, PoE 802.3at Class 4 |
| Max. Power Consumption | 8W standard, 20W with de-icing heater active |
| Operating Temperature | -40°C to 65°C |
| Protection Rating | IP66, TVS 6000V lightning and surge protection |
| Dimensions | 352.4mm × 113.5mm × 113mm |
| Weight | Approx. 2kg |
