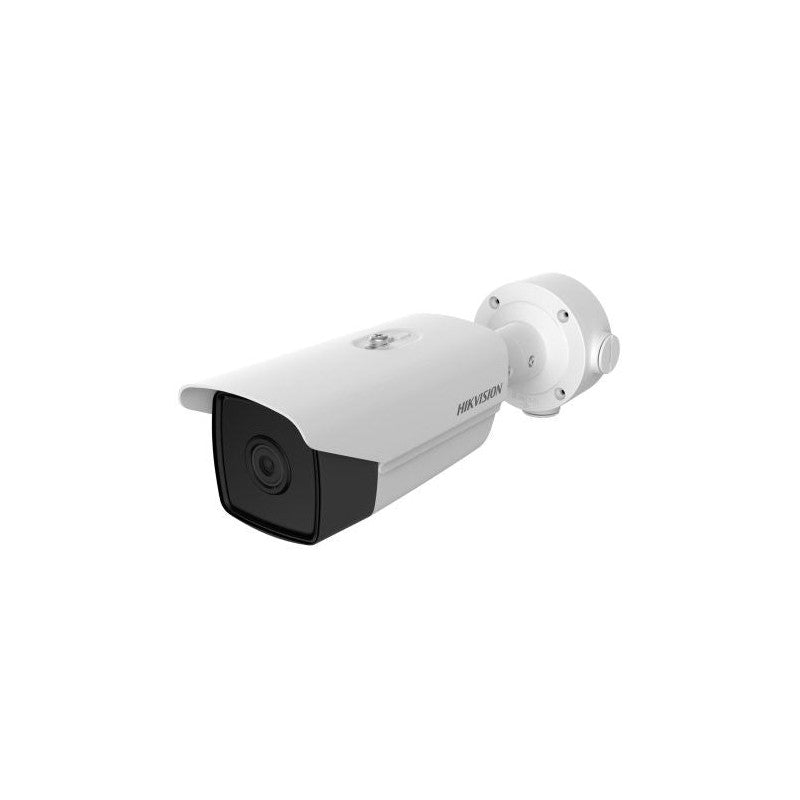

Hikvision Ds-2td2117-6v1 Deepinview Thermal Bullet Camera Ip66, 160×120, 25fps 6mm

The Hikvision DS-2TD2117-6V1 Deepinview Thermal Bullet Camera is a thermal network solution engineered for perimeter defence and fire prevention at industrial and infrastructure sites. Featuring a vanadium oxide uncooled focal plane sensor and a built-in GPU, this IP66-rated device provides reliable monitoring in extreme outdoor conditions where visible-light cameras are ineffective.

Key Features

• Vanadium oxide uncooled focal plane sensor with a NETD rating of less than 40mK for high-sensitivity thermal detection.
• 6.2mm fixed lens providing a 25 x 18.7 degree field of view, suitable for monitoring defined approach corridors and fence lines.
• Dynamic fire point detection capability that monitors up to 10 fire zones simultaneously for early-stage alerting.
• Deep learning-based VCA processing up to 8 configurable rules across 4 behaviour types, including line crossing and intrusion.
• IP66 ingress protection and TVS 6000V lightning protection for robust operation in harsh environments.
• Wide operating temperature range from -40°C to 65°C, ensuring uninterrupted performance in extreme weather.
• Operates in the 8 to 14 micrometer waveband with a 17 micrometer pixel pitch to detect heat sources in darkness, fog, or smoke.
