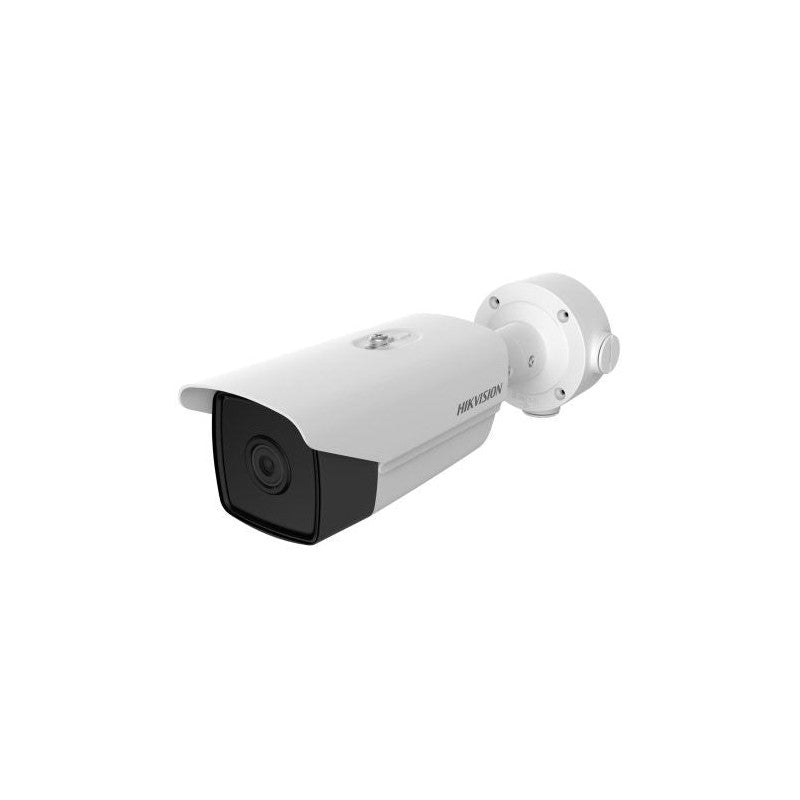

Hikvision Ds-2td2117-3v1 Deepinview Thermal Bullet Camera Ip66, 160×120, 25fps 3mm
SKU: DS2TD21173V1
$2,016.87
The Hikvision DS-2TD2117-3V1 is an IP66-rated thermal bullet camera from the DeepInView series, engineered for perimeter security in challenging environmental conditions. Utilizing a Vanadium Oxide uncooled focal plane array sensor, it provides consistent heat signature detection without reliance on ambient light or IR illumination.
Key Features
- 160×120 thermal resolution with a 3.1mm lens providing a 50° × 37.2° field of view
- Deep learning VCA behaviour analysis supporting line crossing, intrusion, region entrance, and region exiting with up to 8 configurable rules
- Dynamic fire point detection capable of identifying up to 10 simultaneous fire points
- Temperature measurement function covering a range of -20°C to 150°C with 21 configurable measurement points
- IP66 ingress protection rating suitable for exposed outdoor and industrial installations
- TVS 6000V lightning protection and operating temperature range of -40°C to 65°C
Technical Specifications
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 160 x 120 (output image resolution 320 x 240) |
| Pixel Interval | 17 µm |
| Response Waveband | 8 µm to 14 µm |
| NETD | Less than 40mK (@25°C, F#=1.1) |
| Lens Focal Length | 3.1mm |
| Aperture | F 1.1 |
| Field of View | 50° x 37.2° (H x V) |
| VCA Functions | Line crossing, intrusion, region entrance, region exiting – up to 8 rules |
| Fire Detection | Dynamic fire point detection, up to 10 fire points |
| Temperature Range | -20°C to 150°C |
| Temperature Accuracy | ±8°C |
| Frame Rate | 25fps |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Local Storage | Built-in Micro SD/SDHC/SDXC slot, up to 256GB |
| Alarm I/O | 2-channel alarm inputs, 2-channel relay outputs |
| Power | 12VDC ±20% or PoE (802.3af, Class 4), max 8W |
| Protection Level | IP66, TVS 6000V lightning, surge and voltage transient protection |
| Working Temperature | -40°C to 65°C, humidity 90% or less |
| Dimensions / Weight | 352.4mm x 113.5mm x 113mm / approx. 1.45kg |
