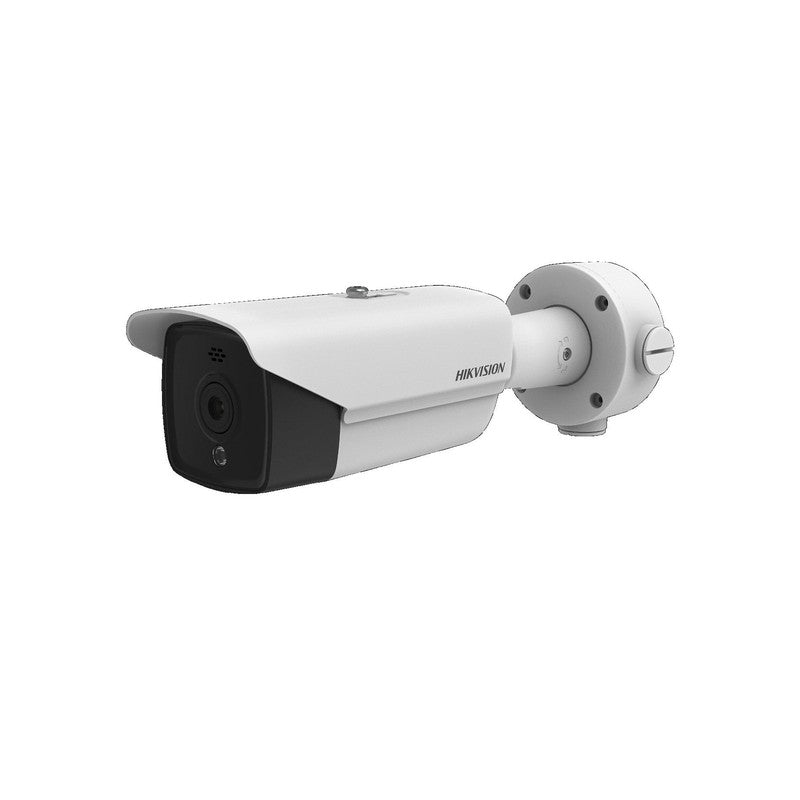

Hikvision Ds-2td2117-10/qa Deepinview Thermal Bullet Camera Ip66, 160×120, 25fps 10mm
SKU: DS2TD211710QA
$1,325.40
The Hikvision DS-2TD2117-10/QA Deepinview Thermal Bullet Camera is a bi-spectrum security solution engineered for perimeter and industrial applications where visible-light surveillance is insufficient. It integrates a 160×120 VOx uncooled thermal sensor with a high-resolution optical channel to ensure reliable detection of humans and vehicles regardless of ambient lighting conditions.
Key Features
- 160×120 VOx uncooled thermal sensor with NETD < 40 mK
- Bi-spectrum design featuring a 2688×1520 optical channel at 25fps
- Active fire point detection up to 588 metres and smoking detection
- Temperature anomaly alerting across a range of -20°C to +150°C
- Deep learning VCA supporting line crossing, intrusion, and region entrance/exit
- IP66 rated housing with TVS 6000V lightning protection
- Operating temperature range of -40°C to 65°C
Technical Specifications
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Thermal Resolution | 160×120 |
| Pixel Pitch | 17 µm |
| NETD | Less than 40 mK (@25°C, F#=1.1) |
| Focal Length | 9.7 mm |
| Field of View | 15.96° x 12° (H x V) |
| Response Waveband | 8 µm to 14 µm |
| Optical Channel Resolution | Up to 2688×1520 at 25fps (50 Hz) / 30fps (60 Hz) |
| Detection Range – Human | 285 m (1.8×0.5 m target) |
| Detection Range – Vehicle | 875 m (4.0×1.4 m target) |
| VCA Range – Human / Vehicle | 70 m / 210 m |
| Fire Detection Range | 588 m (2×2 m object) |
| Temperature Measurement Range | -20°C to +150°C, accuracy ±8°C |
| VCA Functions | Line crossing, intrusion, region entrance, region exit – up to 8 rules |
| Video Compression | H.265, H.264 (Baseline/Main/High Profile), MJPEG |
| Power | PoE 802.3af (class 3), max 5 W; DC 12V, max 4.5 W |
| Storage | MicroSD/SDHC/SDXC up to 256 GB |
| Alarm I/O | 2-channel alarm input, 2-channel relay output |
| Protection Rating | IP66; TVS 6000V lightning, surge and voltage transient protection |
| Operating Temperature | -40°C to 65°C; humidity 95% or less |
| Dimensions / Weight | 358.3 x 113.5 x 115.2 mm / approx. 1.71 kg |
| Protocols / Integration | ONVIF (Profile S, G, T), ISAPI, SDK; iVMS-4200, Hik-Connect |
