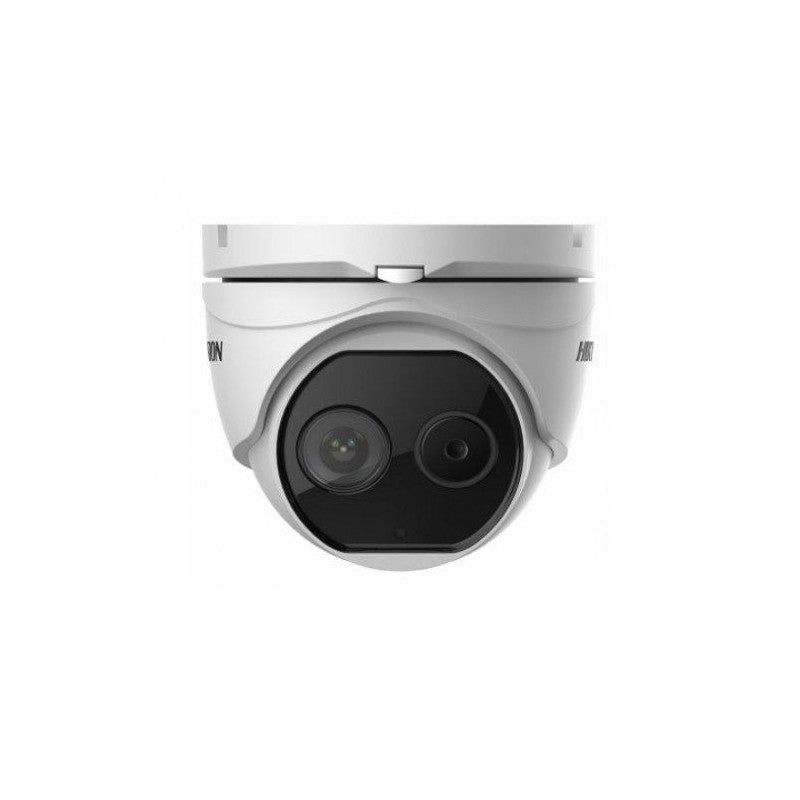

Hikvision Ds-2td1217-6/v1 Thermal & Optical Network Turret Camera 6mm
SKU: DS2TD12176V1
$1,662.36
The Hikvision DS-2TD1217-6/V1 Thermal & Optical Network Turret Camera 6mm integrates a vanadium oxide uncooled thermal imaging module with a full HD 1080p optical sensor within a single turret housing. Designed for early fire detection and thermal anomaly monitoring, this unit provides precise temperature measurement and bi-spectrum image fusion for comprehensive site surveillance.
Key Features
- Thermal module with NETD under 40mK and a 6.2mm lens providing a 25.0° x 18.7° field of view
- Advanced fire detection capability for up to 10 fire points, with a range of 360m for 2x2m objects and 180m for 1x1m objects
- Temperature measurement across -20°C to 150°C with 21 configurable rules for 10 points, 10 regions, and 1 line
- Bi-spectrum image fusion and picture-in-picture preview for simultaneous thermal and optical context on a single display
- Deep learning VCA supporting line crossing, intrusion, and region entrance/exit analytics
- IP67 ingress protection and TVS 6000V lightning protection for demanding installation conditions
- Power over Ethernet (PoE) 802.3af support and onboard MicroSD storage up to 256GB
Technical Specifications
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 160 x 120 (output image 320 x 240) |
| Detector Pitch | 17um |
| Response Waveband | 8um to 14um |
| NETD | Less than 40mK at 25°C, F#=1.1 |
| Thermal Lens / FOV | 6.2mm / 25.0° x 18.7° (H x V) |
| Optical Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Optical Resolution | 1920 x 1080 (Full HD) |
| Optical Lens / FOV | 6mm fixed / 53° x 30° (H x V) |
| WDR | 120dB |
| IR Distance | Up to 15m (auto-adjust intensity and angle) |
| Temperature Measurement | -20°C to 150°C, accuracy ±8°C, 21 rules (10 points, 10 regions, 1 line) |
| Fire Detection | Up to 10 fire points; 360m range (2x2m object), 180m range (1x1m object) |
| VCA | Line Crossing, Intrusion, Region Entrance, Region Exiting; up to 8 rules |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Onboard Storage | MicroSD/SDHC/SDXC up to 256GB |
| Power | 12VDC ±20% or PoE 802.3af Class 3 (max 8.5W) |
| Protection Rating | IP67, TVS 6000V lightning, surge, and voltage transient protection |
| Operating Temperature | -30°C to 60°C, up to 95% humidity |
| Dimensions / Weight | 134.2mm x 123.9mm x 107.7mm / 800g |
