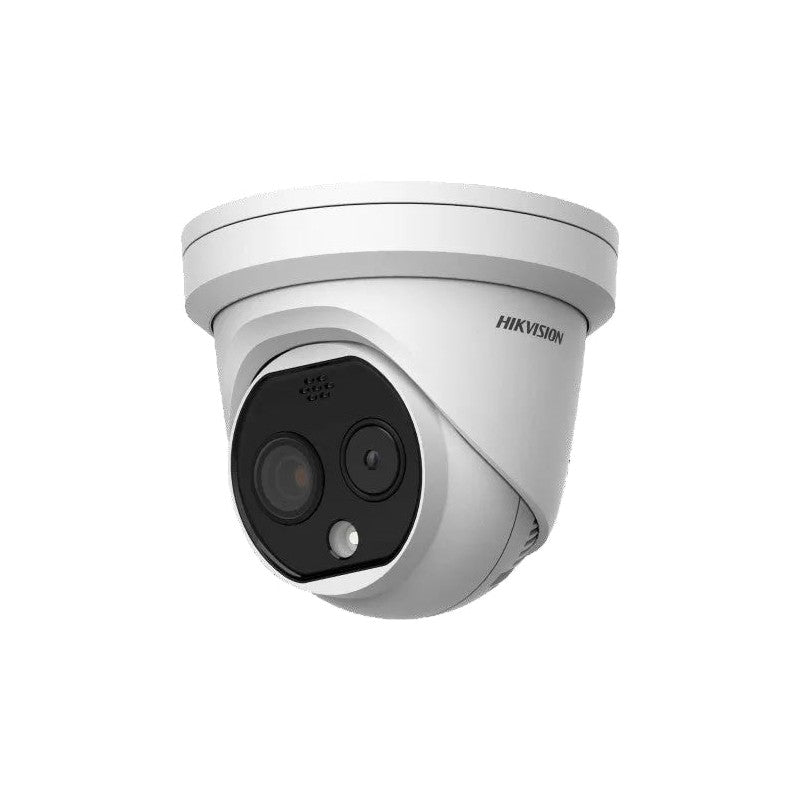

Hikvision Ds-2td1217-6/pa Heatpro Turret 6.2mm

Hikvision Ds-2td1217-6/pa Heatpro Turret 6.2mm
SKU: DS2TD12176PA
$810.60

The Hikvision DS-2TD1217-6/PA Heatpro Turret is a dual-spectrum surveillance device engineered for comprehensive perimeter monitoring in outdoor environments. This unit combines a 4MP optical camera with a 160×120 thermal sensor and features an IP66 weather rating for reliable operation in varied conditions.

Key Features

  • Dual-spectrum imaging with a 4MP (2688×1520) 1/2.7″ CMOS optical sensor and a 160×120 VOx UFPA thermal sensor
  • Optical 8mm fixed lens with up to 15m IR range, WDR, BLC, 3D DNR, and ROI support
  • Thermal 6.2mm lens providing a 25.0° × 18.7° field of view with a NETD of <40mK and 25Hz frame rate
  • Bi-spectrum image fusion with 15 adjustable color palettes and thermographic measurement accuracy of ±8℃ (-20~150℃)
  • Dual-stream video encoding in H.265, H.264, and MJPEG formats supporting up to 20 simultaneous live views
  • Integrated strobe light and audio alarm with I/O connectivity for active security response
  • Flexible power options via DC12V or PoE (802.3af) and local storage support for Micro SD/SDHC/SDXC cards up to 256GB

No specifications available.

📄
DS 2TD1217 6 PA V5.5.30 20201214.pdf
PDF Document
📄
UD14811B Baseline Thermal Optical Network Turret Camera Quick Start Guide V5.5.20.pdf
PDF Document
