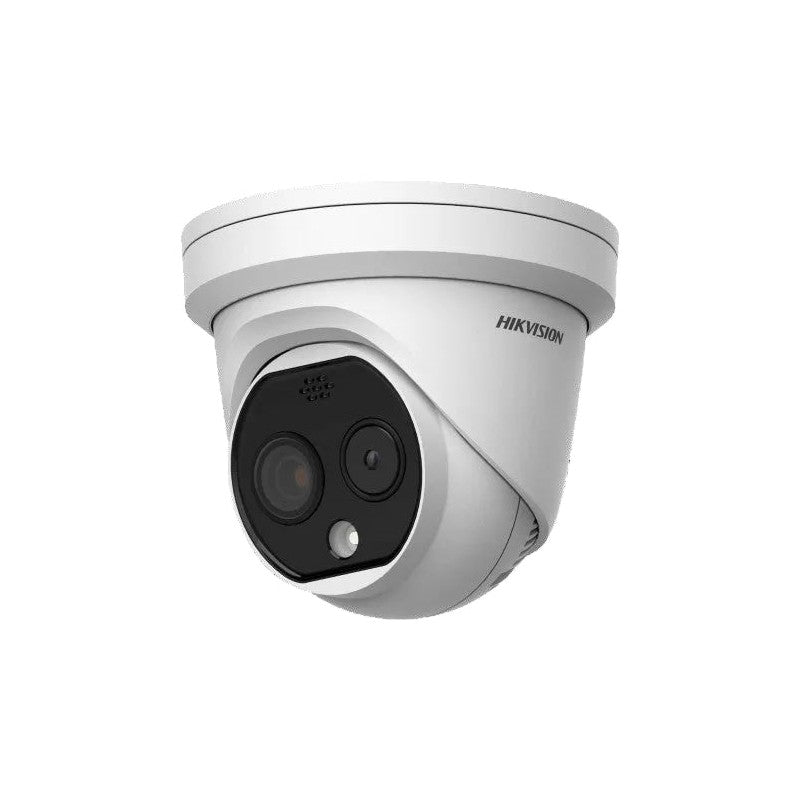

Hikvision Ds-2td1217-2/qa Thermographic Network Turret Camera 2mm Heatpro
SKU: DS2TD12172QA
$712.32
The Hikvision DS-2TD1217-2/QA HeatPro is a bi-spectrum network turret camera engineered for outdoor perimeter protection, combining thermal detection with 4MP optical imaging. This unit identifies heat signatures across wide areas regardless of lighting conditions, making it suitable for environments where standard visible-light cameras are insufficient.
Key Features
- 160×120 VOx UFPA thermal sensor with 17 micrometer pixel pitch and NETD below 40mK
- 1.8mm thermal lens providing a 90×66.4 degree field of view for wide-area monitoring
- 4MP optical imaging module for detailed visual verification alongside thermal data
- Deep learning-based analytics for line crossing, intrusion, and region entrance/exit detection
- Onboard fire detection algorithm with temperature measurement range of -20 to 150 degrees Celsius
- Integrated strobe light and audio alarm for on-site deterrence upon event confirmation
- IP66 ingress protection rating for reliable operation in outdoor industrial environments
- Power over Ethernet (PoE 802.3af) or DC12V power supply options
Technical Specifications
| Model | DS-2TD1217-2/QA |
| Thermal Sensor | VOx UFPA, 160×120 pixels, pixel pitch 17 μm |
| Thermal Lens | 1.8mm, FOV 90°x66.4° |
| NETD | Less than 40mK (@25°C, F#=1.1) |
| Thermal Frame Rate | 25Hz |
| Temperature Measurement Range | -20°C to 150°C, accuracy ±8°C |
| Colour Palettes | 15 selectable palettes |
| Thermal Image Processing | Adaptive AGC, DDE, 3D DNR |
| Optical Sensor | 1/2.7″ CMOS, 4MP (2688×1520) |
| Optical Lens | 2mm fixed |
| IR Range | Up to 15m |
| Optical Image Processing | WDR, BLC, 3D DNR, ROI |
| Behaviour Analysis | Line crossing, intrusion, region entrance and exit (deep learning) |
| Fire Detection | Advanced fire detection algorithm, temperature anomaly alarm |
| Active Deterrence | Strobe light and audio alarm |
| Video Compression | H.265, H.264, MJPEG |
| Local Storage | Micro SD/SDHC/SDXC up to 256GB |
| Power | DC12V or PoE (802.3af) |
| Weather Rating | IP66 |
| Simultaneous Live View | Up to 20 channels |
