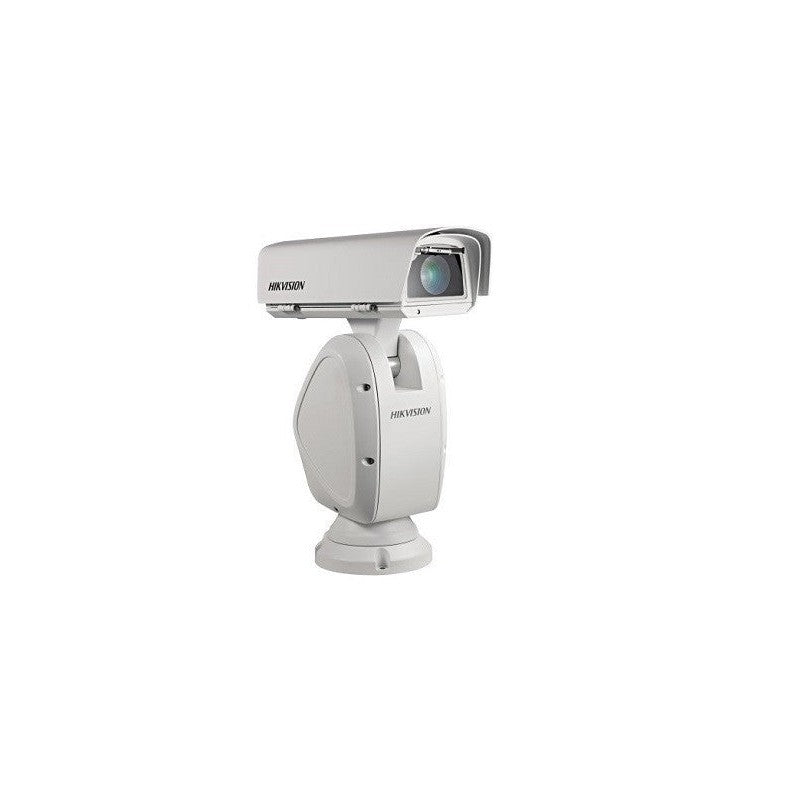

Hikvision Ds-2dy9250x-a 2MP 50× Network Positioning System
SKU: DS2DY9250XA
$15,757.35
The Hikvision DS-2DY9250X-A is a 2MP network positioning system designed for high-precision surveillance applications. It integrates a 1/2.8-inch HD progressive scan CMOS sensor with a 50× optical zoom lens, enabling detailed monitoring across extensive distances with a horizontal field of view ranging from 41.3° to 1.1°.
Key Features
- 1/2.8-inch HD progressive scan CMOS sensor with 1920(H) x 1080(V) effective pixels
- 50× optical zoom capability with a focal length range of 6.6 mm to 330 mm
- 120dB WDR and 16× digital zoom for clear imaging in high-contrast lighting conditions
- Configurable pan speed from 0.1°/s to 100°/s and tilt range of -90° to 40° with auto-flip
- Supports 300 presets, 8 patrols, and 4 pattern scans for automated surveillance coverage
- Minimum illumination of 0.05 Lux in color and 0.01 Lux in B/W mode
- Network connectivity via 10Base-T / 100Base-TX Ethernet with optional fiber connector support
- 7 alarm inputs and 2 alarm outputs for integration with external security devices
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ HD progressive scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Minimum Illumination: | Color: 0.05 Lux @(F1.8, AGC ON) B/W: 0.01 Lux @(F1.8, AGC ON) |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
