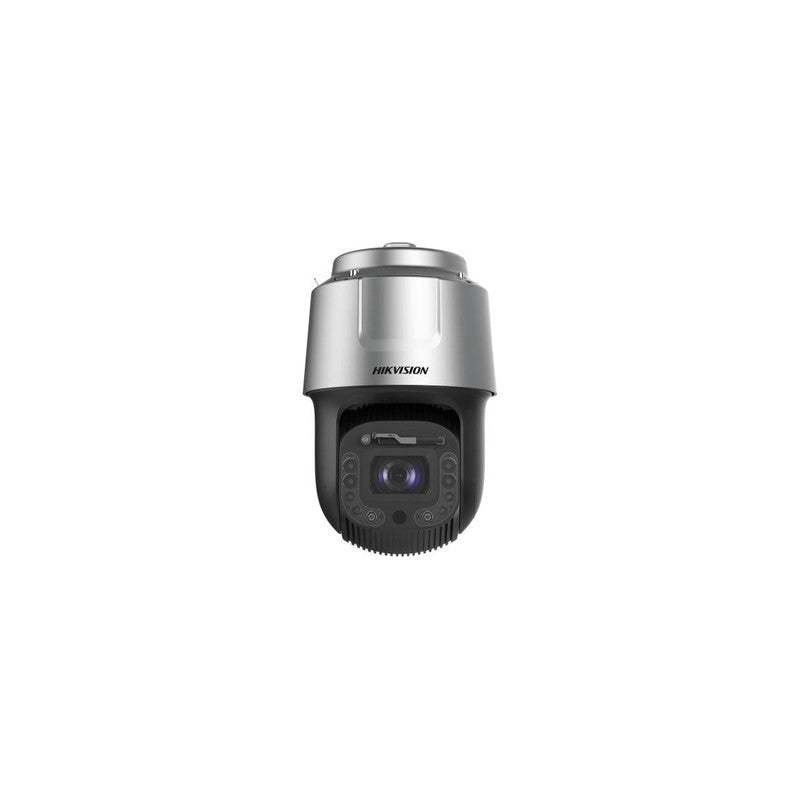

Hikvision Ds-2df8c842ixg1-elwy 4K 42x Darkfighter IR Network PTZ Dome

Hikvision Ds-2df8c842ixg1-elwy 4K 42x Darkfighter IR Network PTZ Dome
SKU: DS2DF8C842IXG1ELWY
$6,308.43

The Hikvision DS-2DF8C842IXG1-ELWY 4K 42x Darkfighter IR Network PTZ Dome is engineered for large-scale outdoor surveillance, combining an 8MP 4K sensor with a 42x optical zoom to resolve distant details across expansive perimeters. Designed for critical infrastructure and industrial sites, this unit integrates DarkFighter 2.0 low-light imaging with a rugged IP67 and IK10-rated housing to ensure reliable performance in extreme environmental conditions.

Key Features

  • 8MP 4K resolution (3840 x 2160) via a 1/1.2-inch progressive-scan CMOS sensor for forensic-level image clarity.
  • 42x optical zoom lens with a focal length range of 7.5 to 315mm, providing a horizontal field of view from 60.4° to 1.7°.
  • DarkFighter 2.0 technology maintains colour footage at approximately 0.0005 Lux ambient illumination.
  • Integrated IR illumination with a range of up to 500m for continuous night-time monitoring without auxiliary lighting.
  • 140dB adaptive wide dynamic range (WDR) to manage high-contrast and backlit surveillance scenarios.
  • Continuous 360-degree pan capability with full PTZ motion for comprehensive site coverage.
  • IP67 and IK10-rated housing designed to operate in temperatures ranging from -40°C to +70°C.
  • Advanced analytics including face capture and vehicle detection for enhanced security monitoring.

Technical Specifications

Resolution 8MP (3840 x 2160)
Image Sensor 1/1.2-inch progressive-scan CMOS
Optical Zoom 42x
Digital Zoom 16x
Focal Length 7.5mm to 315mm motorised
Horizontal Field of View Approx. 60.4 degrees (wide) to 1.7 degrees (tele)
Minimum Illumination (Colour) Approx. 0.0005 Lux
Minimum Illumination (B/W) Approx. 0.0001 Lux
Minimum Illumination with IR 0 Lux
IR Range Up to 500m
Low-Light Technology DarkFighter 2.0
Wide Dynamic Range 140dB Adaptive WDR
Pan Range 360-degree continuous
Tilt Range -20 degrees to +90 degrees (auto-flip)
Analytics Face capture, vehicle detection
Ingress Protection IP67 / IK10 (dome excluded)
Operating Temperature -40 degrees C to +70 degrees C
📄
DS 2DF8C842IXG1 ELWY Datasheet.pdf
PDF Document
