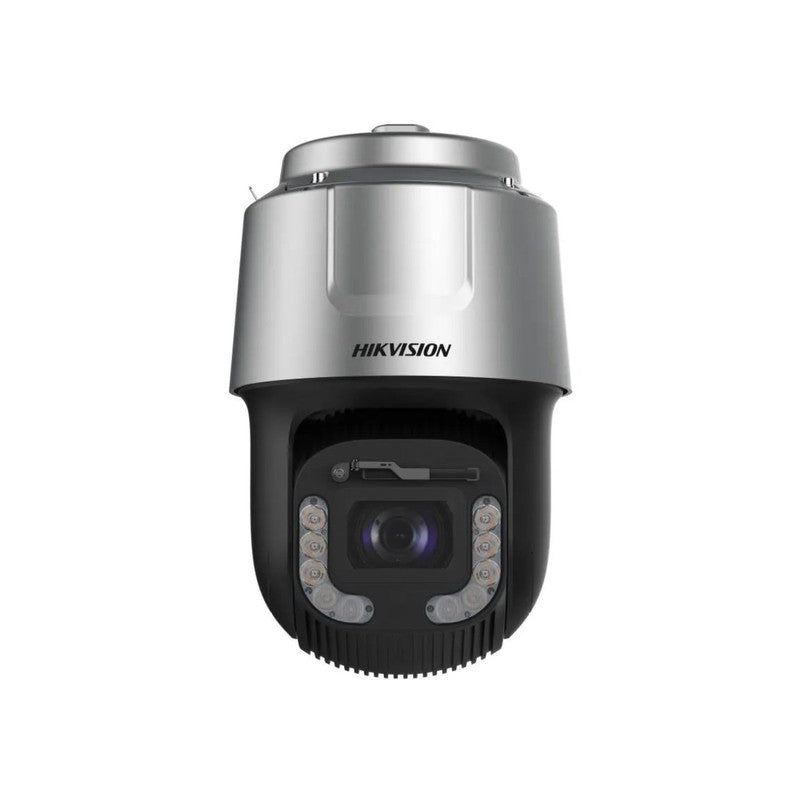

Hikvision Ds-2df8c425mhs-delw 4 Mp 25x Darkfighterx IR Network Speed Dome 300m IR
SKU: DS2DF8C425MHSDELW
$3,513.30
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-4630zj-gsac Anti-corrosion Pole Mount Bracket With Stainless Steel Build, Outdoor CCTV Support, Silver Moon Grey Finish
$91.05
Upgrades Subtotal:
$0.00
The Hikvision DS-2DF8C425MHS-DELW is a 4MP DarkFighterX IR network speed dome engineered for high-security perimeter and traffic monitoring applications. It combines long-range night imaging with deep learning analytics in a single weatherproof unit, featuring dual 1/1.8″ progressive scan CMOS sensors that achieve colour imaging down to 0.0004 lux and operate at 0 lux with 300m IR illumination.
Key Features
- 4MP resolution with 25x optical zoom and a 5.9 to 147.5mm focal length for detailed close-ups across large outdoor areas
- DarkFighterX dual-sensor architecture delivering colour imaging at 0.0004 lux and monochrome at 0.0001 lux
- 300m smart supplemental IR illumination that coordinates with optical zoom to prevent washout at shorter distances
- Deep learning analytics including face capture, face comparison, and road traffic vehicle detection with licence plate and colour recognition
- Full PTZ automation with 360-degree continuous pan, -20 to 90-degree tilt, 300 saved presets, and 8 patrol scans
- IP67 and IK10 ratings with TVS 6K lightning protection, built-in wiper, heater, and demist function for unattended outdoor operation
Technical Specifications
| Image Sensor | Two sensors, 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Minimum Illumination | Colour: 0.0004 lux (F1.6, AGC ON), B/W: 0.0001 lux (F1.6, AGC ON), 0 lux with IR |
| Optical Zoom / Digital Zoom | 25x optical, 16x digital |
| Focal Length | 5.9 to 147.5mm |
| Aperture | F1.6 |
| IR Distance | Up to 300m |
| Supplemental Light Type | Hybrid, with smart supplement light |
| Pan / Tilt Range | Pan: 0 to 360 degrees continuous; Tilt: -20 to 90 degrees |
| Presets / Patrol Scans | 300 presets; 8 patrol scans (up to 32 presets each); 4 pattern scans |
| Wide Dynamic Range | 140 dB |
| Deep Learning Functions | Face capture, face comparison, road traffic vehicle detection (licence plate, model, colour) |
| Smart Events | Line crossing, intrusion, region entrance/exit, audio exception, unattended baggage, object removal |
| Video Compression | H.265+/H.265/H.264+/H.264 (main stream); H.265/H.264/MJPEG (sub/third stream) |
| Onboard Storage | MicroSD/SDHC/SDXC slot, up to 256GB |
| Protection Rating | IP67, IK10, TVS 6K lightning protection |
| All-Weather Features | Built-in wiper, heater, demist, optical defog, EIS image stabilisation |
| Power Supply | 36VDC +/-25%, max 62W; Hi-PoE |
| Operating Temperature | -40 to 70 degrees Celsius |
| Dimensions / Weight | 267mm x 430mm; approx. 10kg |
