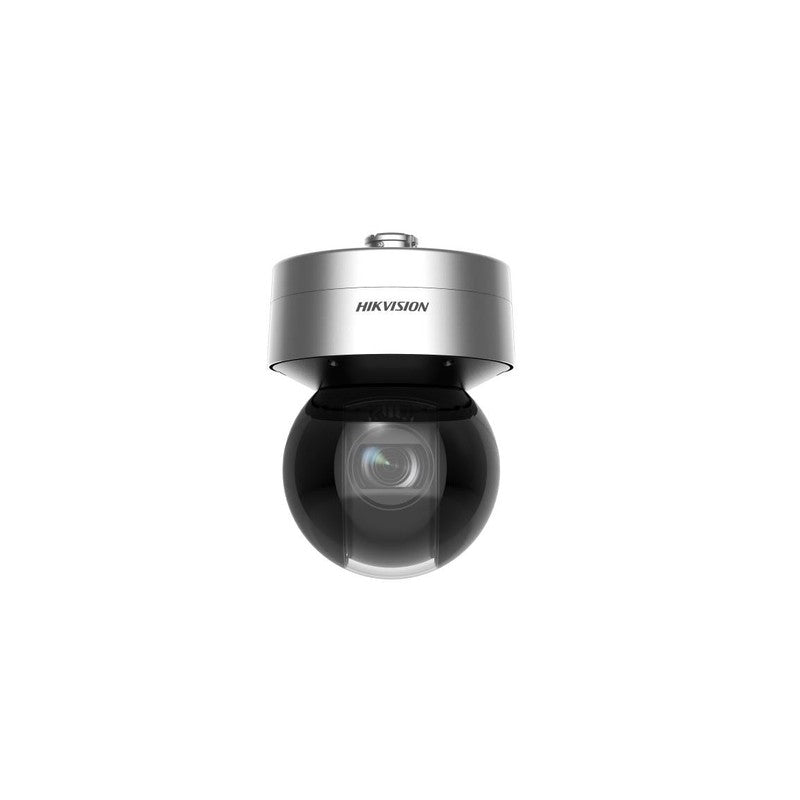

Hikvision Ds-2df7a436ixg-el-y 4MP 36× IR Network Speed Dome (ultra Series)
SKU: DS2DF7A436IXGELY
$3,465.33
The Hikvision DS-2DF7A436IXG-EL-Y is a professional-grade Ultra Series PTZ speed dome camera designed for large-area, mission-critical surveillance. It features a 1/1.8″ progressive-scan CMOS sensor delivering up to 2688 × 1520 (4 MP) resolution, ensuring precise detail capture in extreme environments.
Key Features
- 4 MP high-resolution imaging with a 1/1.8″ progressive-scan CMOS sensor
- 36× optical zoom (6.0 mm–216 mm) combined with 16× digital zoom
- DarkFighter 2.0 technology for exceptional low-light performance
- 150 dB adaptive wide dynamic range (AWDR) for challenging lighting conditions
- Full PTZ range with 360° continuous pan and –20° to +90° tilt with auto-flip
- Rugged IP67/IK10 metal enclosure with optional NEMA 4X corrosion protection
- Built-in gyroscopic image stabilisation for steady footage during movement
Technical Specifications
| Feature | Specification |
|---|---|
| Resolution | 4 MP (2688 × 1520) |
| Sensor | 1/1.8″ progressive-scan CMOS |
| Lens / Zoom | 6.0–216 mm motorised; 36× optical; 16× digital |
| Horizontal Field of View | Approx. 59.1° (wide) to 2.0° (tele) |
| Minimum Illumination | Colour: ~0.0003 Lux @ F1.2; B/W: ~0.0001 Lux @ F1.2; 0 Lux with IR |
| WDR | 150 dB Adaptive WDR |
| Pan / Tilt Range | Pan: 360° continuous; Tilt: –20° to +90° (auto-flip) |
| Ingress Protection | IP67 / IK10 (optional NEMA 4X) |
| Operating Temperature | -40 °C to +70 °C |
