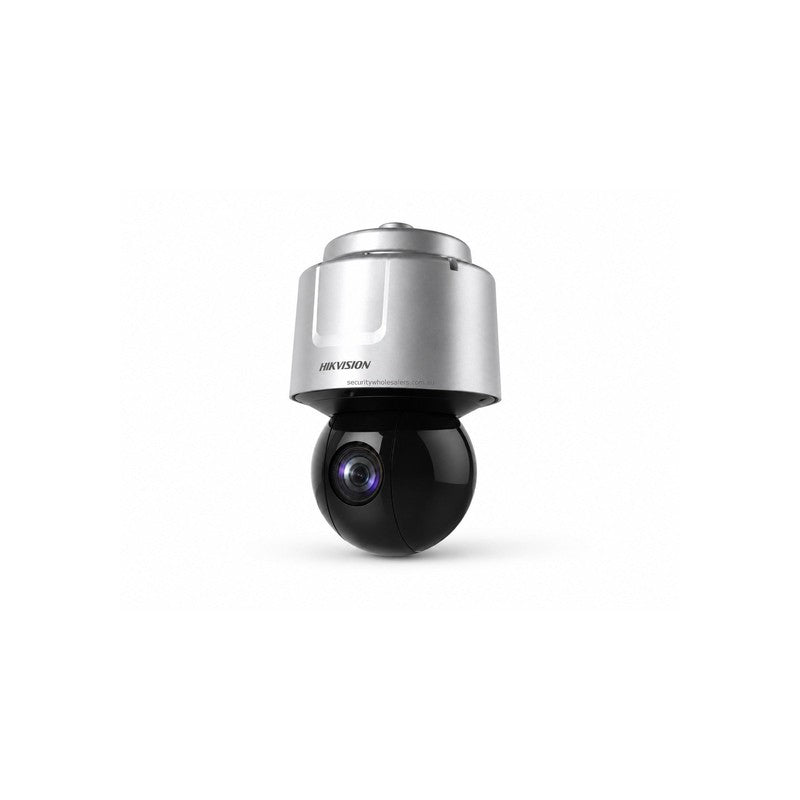

Hikvision Ds-2df6a825x-ael 8MP 25× Network Speed Dome
SKU: DS2DF6A825XAEL
$4,969.95
The Hikvision DS-2DF6A825X-AEL is an 8MP 25× network speed dome camera engineered for high-resolution surveillance in demanding environments. It features a 2/3″ progressive scan CMOS sensor and a 25× optical zoom lens, delivering detailed imagery with a minimum color illumination of 0.002 Lux.
Key Features
- 8MP resolution (4096×2160) with a 2/3″ progressive scan CMOS image sensor
- 25× optical zoom lens with a focal length range of 7.5 mm to 187.5 mm and 16× digital zoom
- 360° endless pan range with speeds up to 350°/s and auto-flip tilt range of -20° to 90°
- Supports 300 presets, 8 patrols, and 4 patterns for comprehensive area coverage
- Smart tracking capabilities for specified target types including humans and vehicles
- Advanced imaging features including DWDR, HLC, smart defog, and ATW (Auto-Tracking White Balance)
- 7 alarm inputs and 2 alarm outputs with configurable actions such as preset activation and SD card recording
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 2/3″ progressive scan CMOS | |
| Effective Pixels: | 4096×2160 | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | DWDR | |
| Shutter Time: | 50Hz: 1/1-1/30,000s 60Hz: 1/1-1/30,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Rapid Focus: | Yes | |
