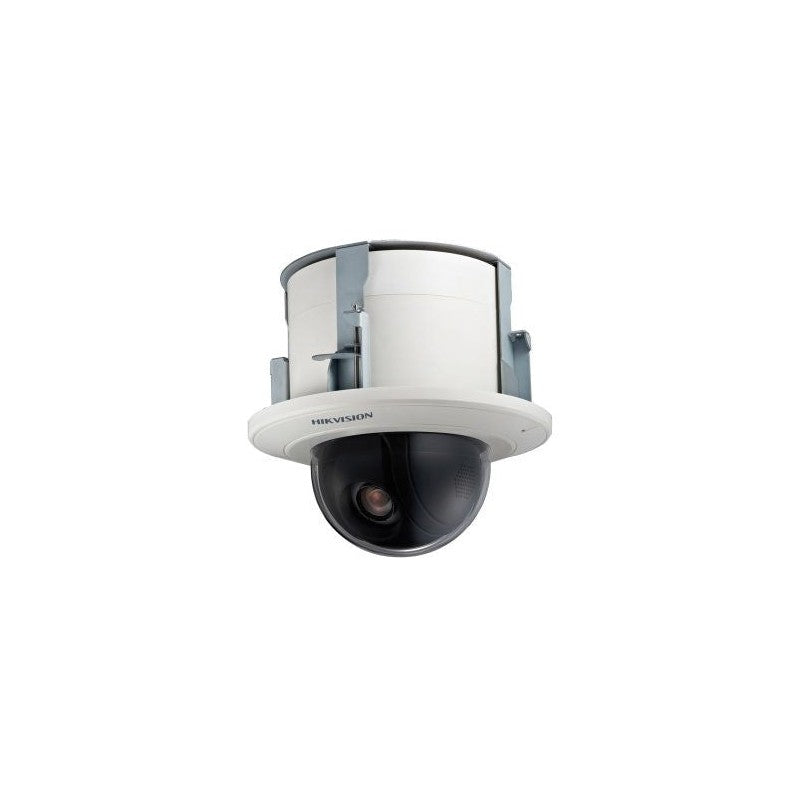

Hikvision Ds-2df5225x-ae3(t5) | Recessed Or Surface-mount 2 Mp 25× PTZ Dome
SKU: DS2DF5225XAE3
$2,224.91
The Hikvision DS-2DF5225X-AE3 (T5) is a 2 MP PTZ dome camera engineered for high-performance surveillance with a dual installation design supporting both recessed and surface mounting. It features 25× optical zoom and DarkFighter low-light technology, ensuring clear imaging across a wide range of environmental conditions.
Key Features
- 1/2.8″ progressive-scan CMOS sensor delivering Full HD 1920 × 1080 resolution
- 25× optical zoom (4.8 mm to 120 mm) combined with 16× digital zoom
- DarkFighter technology with minimum illumination of 0.002 Lux (color) and 0.0002 Lux (B/W)
- 360° continuous pan and -5° to 90° tilt with auto-flip, supporting speeds up to 300°/s (pan) and 240°/s (tilt)
- IP66 weatherproofing and IK10 vandal resistance for durable indoor and outdoor deployment
- Advanced analytics including face capture, vehicle detection, auto-tracking, and intrusion detection
- Flexible power options via 24 VAC or Hi-PoE (IEEE-802.3bt) with 6000 V lightning protection
- Supports H.265+/H.264 compression, ONVIF (S/G/T), and local storage up to 256 GB via Micro-SD
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.002 Lux @(F1.2, AGC ON) B/W: 0.0002 Lux @(F1.2, AGC ON) |
|
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 50Hz: 1/1-1/30,000s 60Hz: 1/1-1/30,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
