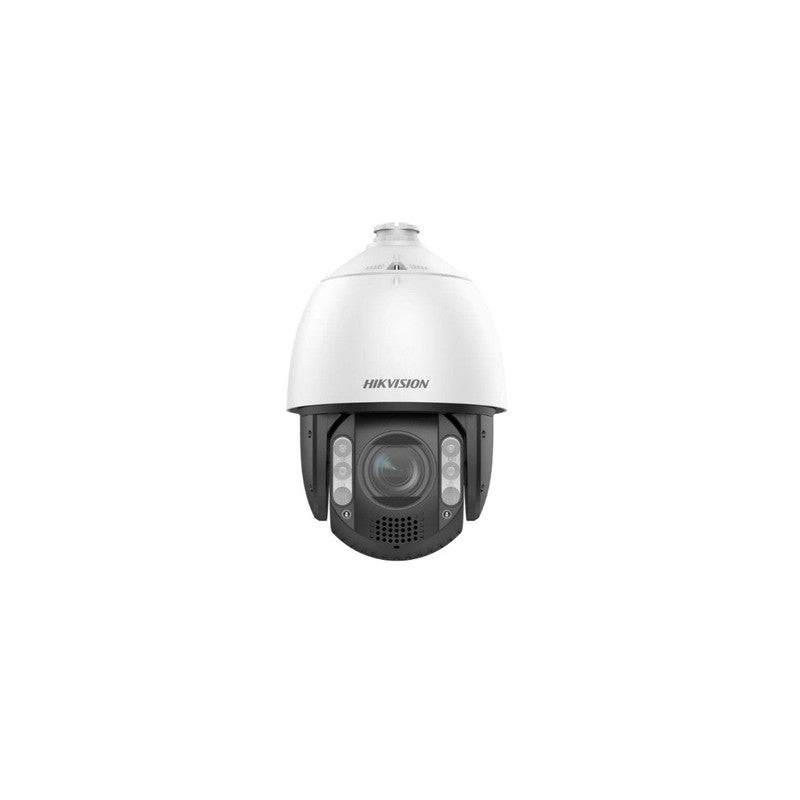

Hikvision Ds-2de7a412mcg-eb 4MP 7-inch 4 Mp 12x Colorvu Network Speed Dome
SKU: DS2DE7A412MCGEB
$1,629.60
The Hikvision DS-2DE7A412MCG-EB is a 4MP ColorVu network speed dome engineered for wide-area outdoor monitoring, combining full-colour night vision with responsive pan-tilt-zoom control. Designed for high-demand environments such as car parks and industrial yards, this 7-inch IP66-rated unit provides comprehensive coverage where fixed-lens cameras are insufficient.
Key Features
- 12x optical zoom lens spanning 6.7mm to 80.4mm with 16x digital zoom for detailed target identification
- ColorVu technology with a 1/1.8-inch CMOS sensor and F1.2 aperture for full-colour imaging at 0.0005 Lux
- Hybrid illumination system featuring up to 150m IR range and up to 100m white light coverage
- AcuSense deep learning for human and vehicle classification to reduce nuisance alerts
- Auto-tracking capability that follows detected subjects across the field of view
- Active deterrence features including strobe and speaker integration
- Robust IP66, IK10, and TVS 6000V ratings for permanent outdoor installation
Technical Specifications
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Resolution | 2560 x 1440 (4MP) |
| Lens | Motorised varifocal 6.7-80.4mm, F1.2, auto/semi/manual focus |
| Zoom | 12x optical, 16x digital |
| Field of View | Horizontal: 51.5-7.9 degrees; Vertical: 30.3-4.4 degrees; Diagonal: 57.9-9.0 degrees |
| Minimum Illumination | Colour: 0.0005 Lux at F1.2; B/W: 0.0001 Lux at F1.2; 0 Lux with supplement light |
| Illumination Range | IR up to 150m; White light up to 100m |
| PTZ Range | 360-degree endless pan; -15 to 90-degree tilt with auto-flip |
| Pan/Tilt Speed | Pan: 0.1-160 degrees/s (preset 240 degrees/s); Tilt: 0.1-120 degrees/s (preset 200 degrees/s) |
| Presets and Patrols | 300 presets; 8 patrol scans; 4 pattern scans; power-off memory |
| WDR and Image Enhancement | 120dB True WDR, BLC, HLC, 3D DNR, digital defog, electronic image stabilisation |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG; SVC supported |
| Audio | Built-in microphone and speaker; audio-in/out ports; G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Local Storage | microSD up to 256GB; NAS (NFS/SMB); ANR supported |
| Power | 24VAC or Hi-PoE (802.3bt); maximum 42W; heater 2W |
| Ingress and Surge Protection | IP66, IK10 (excluding glass), TVS 6000V lightning surge protection |
| Operating Temperature | -30 degrees C to +65 degrees C; humidity up to 90% |
| Dimensions and Weight | Diameter 220mm x 357.3mm height; approximately 5.5kg |
