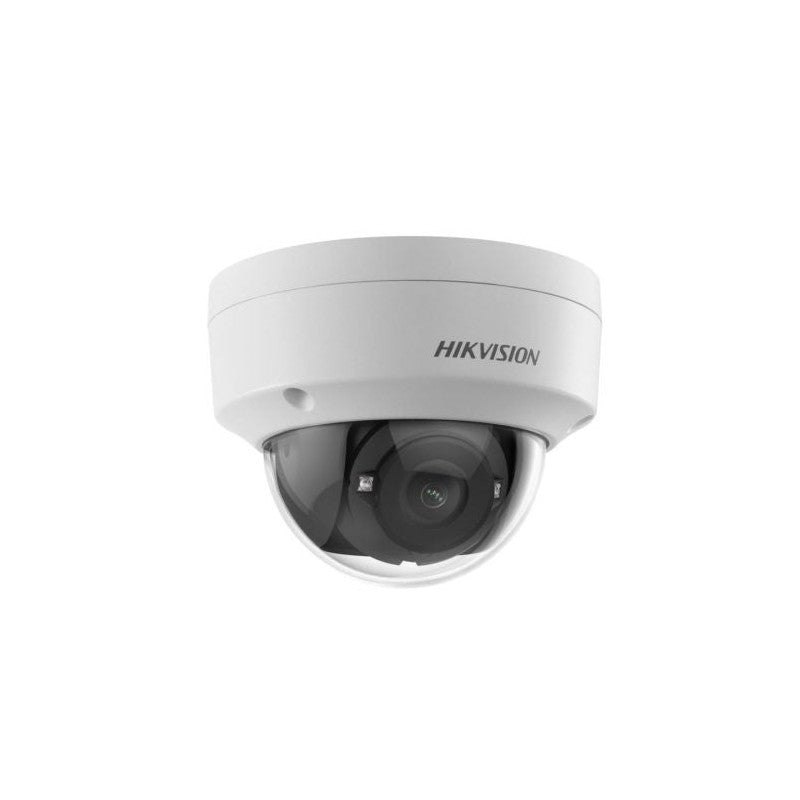

Hikvision Ds-2ce57u7t-vpitf Tvi4.0 8MP Outdoor Dome Camera, Wdr, 30m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
SKU: DS2CE57U7TVPITF
$220.92
The Hikvision DS-2CE57U7T-VPITF is an outdoor vandal dome camera designed to upgrade existing analogue or HD-over-coax installations to 8MP resolution without the need for new cabling. Utilizing the TVI 4.0 standard, this unit delivers 3840 x 2160 resolution across existing coaxial infrastructure, making it a cost-effective solution for sites transitioning to higher resolution without a full infrastructure overhaul.
Key Features
- 8MP 4K resolution (3840 x 2160) transmitted over existing coaxial cable via TVI 4.0
- 130dB True Wide Dynamic Range (WDR) for legible images in scenes with coexisting bright and dark areas
- Smart IR technology with a range of up to 30m that automatically adjusts intensity to prevent image washout
- 4-in-1 switchable output compatible with TVI, AHD, CVI, and CVBS recorders
- IP67 weatherproofing and IK10 vandal-resistant housing for outdoor exposure and impact resistance
- 2.8mm fixed lens suitable for wide-field mounting positions such as eaves, walkways, and car park ceilings
- 12VDC power supply for standard analogue system integration
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1440 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
