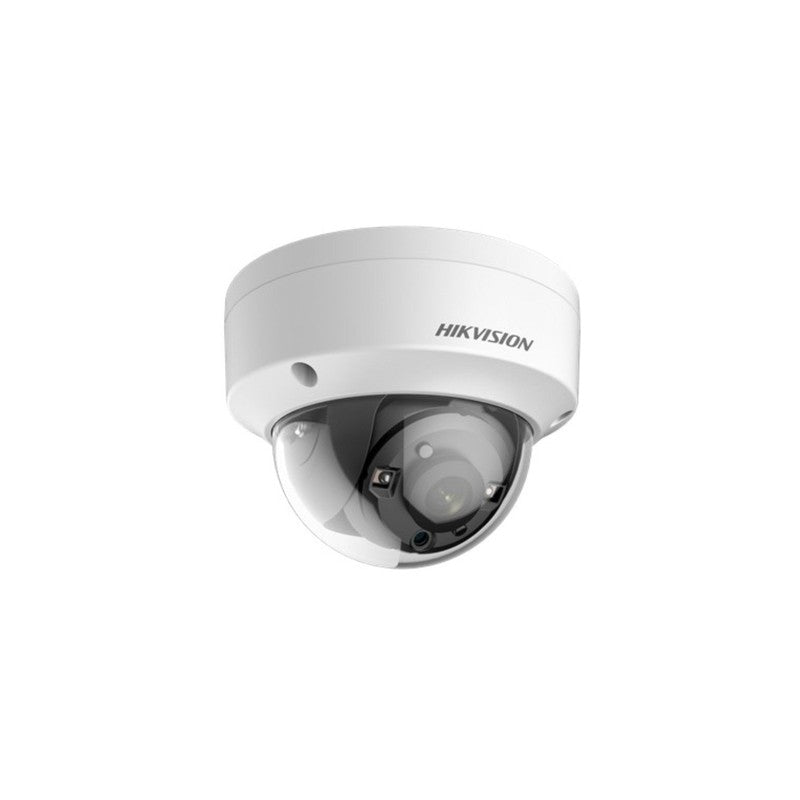

Hikvision Ds-2ce57h8t-vpitf Tvi4.0 5MP Outdoor IR Dome Camera, 20fps Ip67, 12vdc, 2.8mm
SKU: AUD126
$151.89
The Hikvision DS-2CE57H8T-VPITF is a 5MP outdoor IR dome camera designed for high-definition surveillance over existing coaxial infrastructure. As part of the TVI 4.0 range, it enables the upgrade of analogue sites to high resolution video without the need for re-cabling.
Key Features
- 5MP high-resolution video output over coaxial cable
- EXIR technology providing up to 80m infrared range for night clarity
- 2.8mm fixed lens suitable for covering wide areas
- Switchable video output supporting TVI, AHD, CVI, and CVBS signals
- 130dB true wide dynamic range for high-contrast scenes
- Ultra-low light sensitivity down to 0.003Lux
- IP67 rating for outdoor environmental protection
- Powered by 12VDC
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
| Synchronization: | Internal Synchronization | |
