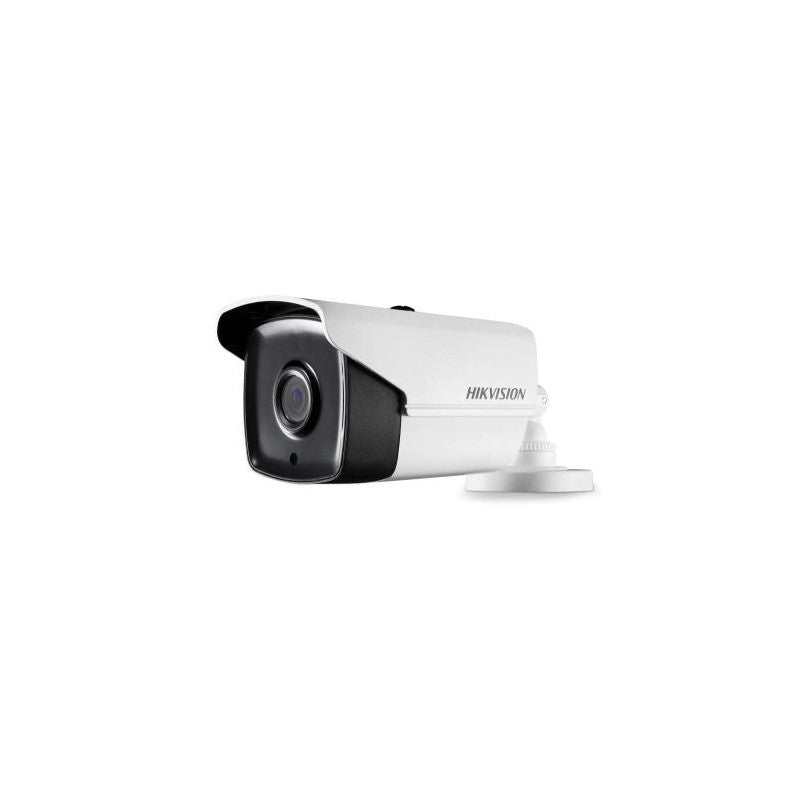

Hikvision Ds-2ce16h5t-it5 Tvi4.0 5MP Outdoor Bullet Camera, 20fps, 80m Ir, Dwdr, Ip67, 12vdc, 3.6mm
SKU: DS2CE16H5TIT5
$189.33
The Hikvision DS-2CE16H5T-IT5 is a 5MP outdoor bullet camera designed for high-definition surveillance over coaxial cable. As part of the TVI 4.0 range, it enables the upgrade of existing analogue sites to high resolution without the need for re-cabling.
Key Features
- 5MP high-resolution video output at 20fps
- TVI 4.0 technology for HD surveillance over coaxial cable
- 80m IR range with inbuilt EXIR technology for night clarity
- 3.6mm fixed lens for wide-area coverage
- IP67 rating for outdoor weather resistance
- 12VDC power supply
- DWDR (Digital Wide Dynamic Range) support
Technical Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | Motorized VF lens; 2.8 to 12 mm | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
