Hikvision Ds-2cd3h86g3-lizsu(y)/sl 8MP Dual Illumination Motorised Turret Camera With Strobe, Siren
SKU: DS2CD3H86G2HLIZSUYSL
$693.60

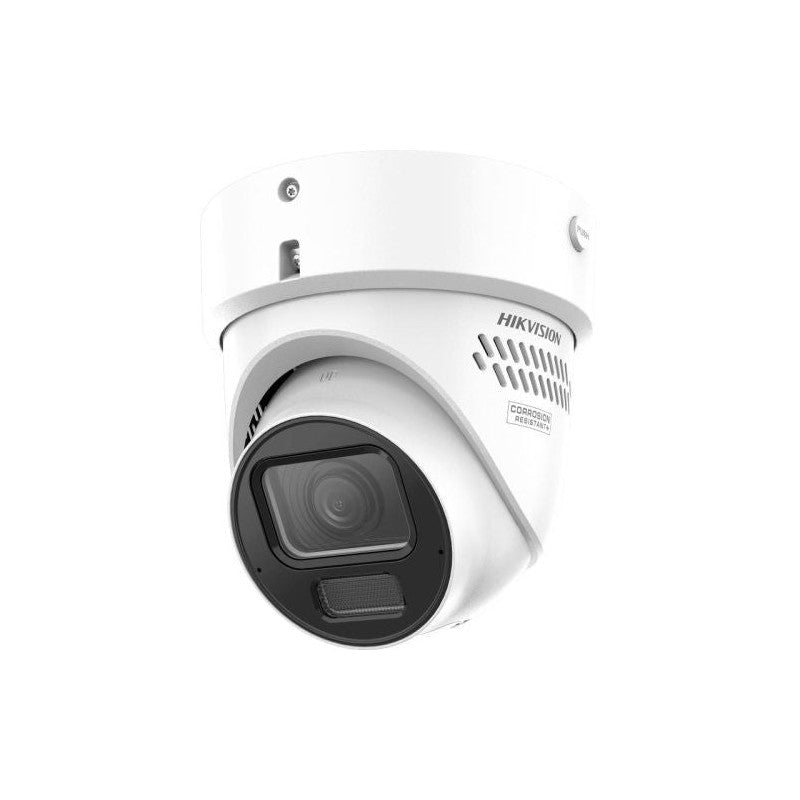

The Hikvision DS-2CD3H86G3-LIZSU(Y)/SL is an 8MP Ultra Series motorised varifocal turret camera engineered for high-resolution surveillance in demanding outdoor environments. Designed for sites requiring flexible lens adjustment, smart analytics, and active deterrence, this unit integrates two-way audio and dual illumination capabilities into a single IP67-rated housing.
Key Features
- 8MP Ultra Series resolution (3840 × 2160) for high-detail footage in warehouses, car parks, and perimeter zones
- 2.7mm to 13.5mm motorised varifocal lens for remote adjustment from wide overview to focused views
- DarkFighter 2.0 technology and Smart Hybrid Light providing IR and white light illumination up to 40m
- 130dB WDR and HIK AI-ISP noise reduction for clear imaging in challenging lighting conditions
- Active deterrence system featuring a strobe light and audible warning siren
- Deep learning analytics with human and vehicle classification for improved perimeter protection accuracy
- Built-in arrayed dual microphones and speaker supporting two-way audio communication
- IP67 weather protection, IK10 vandal resistance, and NEMA 4X anti-corrosion protection in the -Y variant
Technical Specifications
| Resolution | 8MP, up to 3840 × 2160. |
| Camera Type | Ultra Series motorised varifocal turret camera with Smart Hybrid Light and active deterrence. |
| Available Model | DS-2CD3H86G3-LIZSUY/SL(2.7-13.5)eFO-STD. |
| Image Sensor | 1/1.8″ progressive scan CMOS. |
| Lens | Motorised varifocal lens, 2.7mm to 13.5mm, auto-iris, F1.2 aperture. |
| Field of View | Horizontal 112.3° to 41.2°, vertical 58.1° to 23.1°, diagonal 137.4° to 47.3°. |
| DORI Distance | Wide: Detect 89.2m, Observe 35.4m, Recognise 17.8m, Identify 8.9m. Tele: Detect 220.0m, Observe 87.3m, Recognise 44.0m, Identify 22.0m. |
| Low-Light Technology | DarkFighter 2.0 technology with 24/7 colourful imaging and HIK AI-ISP noise reduction. |
| Illumination | Smart Hybrid Light with IR and white light, both up to 40m. IR wavelength 850nm. |
| Minimum Illumination | Colour 0.001 Lux at F1.2, AGC on; black and white 0 Lux with IR. |
| WDR | Scene-adaptive WDR with 130dB wide dynamic range. |
| Audio | Arrayed dual built-in microphones, built-in speaker, one line input, one line output and two-way audio support. |
| Active Deterrence | Active strobe light and audible warning to warn intruders off. |
| Smart Analytics | Human and vehicle classification, line crossing, intrusion, region entrance and region exiting for perimeter protection. |
| Additional Analytics | Face capture and people counting supported. |
| Image Enhancement | BLC, HLC, 3D DNR, distortion correction, defog, EIS, ROI and privacy masking support. |
| Compression | H.265, H.264, H.264+, H.265+ and MJPEG depending on stream. |
| Storage | microSD, microSDHC and microSDXC up to 512GB, with NAS and ANR support. |
| Alarm Interface | 2 alarm inputs and 2 alarm outputs. |
| Network | RJ45 10/100M Ethernet, ONVIF Profile S, T and G, ISAPI, SDK, ISUP, Hik-Connect, iVMS-4200 and Hik-Central support. |
| Power | 12V DC ±25%, max 16.8W, or PoE IEEE 802.3at Class 4, max 20W. |
| Weather and Impact Rating | IP67 weatherproof and IK10 vandal resistant. |
| Anti-Corrosion | -Y version includes anti-corrosion design to NEMA 4X. |
| Dimensions and Weight | Ø143.5mm × 142.7mm, approximately 1265g. |
