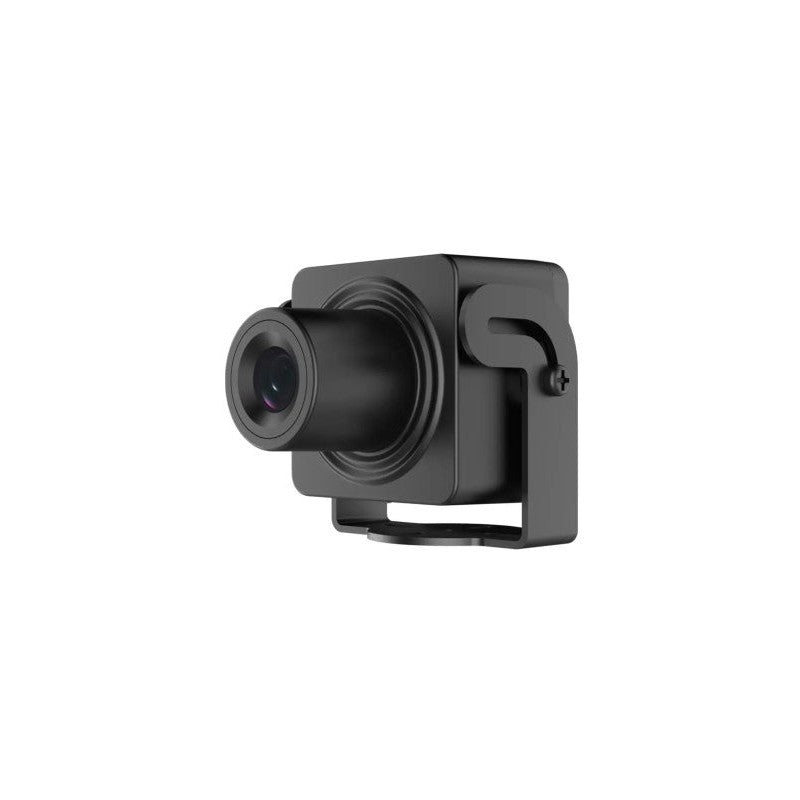

Hikvision Ds-2cd2d25g1/m-d/nf Covert Network Camera
SKU: DS2CD2D25G1MDNF
$307.50
The Hikvision DS-2CD2D25G1/M-D/NF is a covert network camera engineered for discreet indoor surveillance in environments where visible hardware is counterproductive. Measuring 31.5 mm x 31.5 mm x 49.6 mm, this compact unit is designed for concealment within ceilings, walls, or custom enclosures while delivering 1920 x 1080 resolution through a 2 MP 1/2.8″ Progressive Scan CMOS sensor.
Key Features
- Ultra-compact pinhole form factor (31.5 mm x 31.5 mm x 49.6 mm) weighing approximately 93 g for easy concealment
- 2 MP 1/2.8″ Progressive Scan CMOS sensor with a choice of 2.8 mm or 4 mm fixed lenses
- 120 dB True Wide Dynamic Range (WDR) with 3D DNR and BLC for clear imaging in mixed-light conditions
- Low-light sensitivity of 0.002 Lux at F1.2 with AGC enabled for colour imaging in dim environments
- H.265 compression for efficient storage and NAS network storage support
- Integrated smart event analytics for automated monitoring
- Power over Ethernet (PoE) connectivity for simplified installation
Technical Specifications
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 x 1080 (2 MP) |
| Min. Illumination | Colour: 0.002 Lux @ F1.2, AGC ON |
| Lens Options | 2.8 mm (H: 107.8°, V: 57.9°, D: 126.7°) / 4 mm (H: 82.8°, V: 45.1°, D: 98°) |
| Lens Mount / Iris | M12 / Fixed, F2.0 |
| Wide Dynamic Range | 120 dB true WDR |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Video Compression | H.265 / H.264 (main stream); H.265 / H.264 / MJPEG (sub-stream) |
| Main Stream Frame Rate | Up to 50 fps @ 1920 x 1080 (50 Hz) / 60 fps (60 Hz) |
| Smart Events | Intrusion detection, line crossing, region entrance/exit, unattended baggage, object removal, audio exception, defocus detection, scene change detection |
| Audio | 1 x audio input (line in); mono; G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet port |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Power Supply | 12 VDC ±20%, 0.13 A, max. 1.5 W, 5.5 mm coaxial power plug (no PoE) |
| Dimensions | 31.5 mm x 31.5 mm x 49.6 mm |
| Weight | Approx. 93 g |
| Operating Temperature | -30 °C to 60 °C, Humidity 95% or less (non-condensing) |
| Certifications | RCM (AS/NZS CISPR 32: 2015), FCC, CE-EMC, CE-LVD, CE-RoHS, UL, CB |
| Client Software | iVMS-4200, Hik-Connect |
