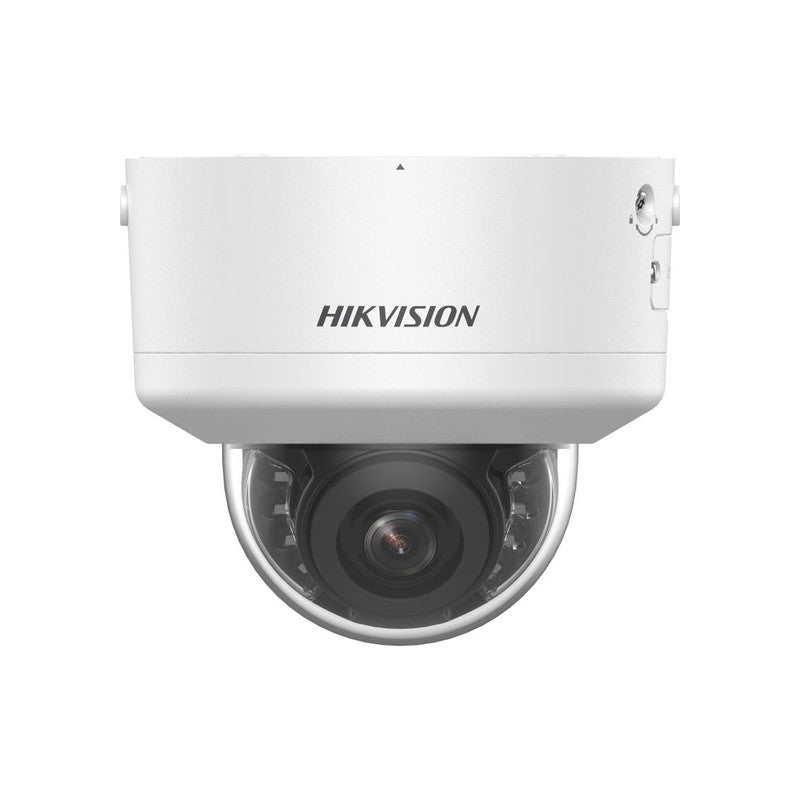

Hikvision Ds-2cd2787g2h-liptrzs 8MP Colorvu Motorised Ptrz Dome Camera
SKU: DS2CD2787G2HLIPTRZS
$867.93
The Hikvision DS-2CD2787G2H-LIPTRZS is an 8MP ColorVu motorised PTRZ dome camera designed for professional ceiling-mount installations where precise post-installation aiming is required. By combining a 2.8-12mm motorised varifocal lens with remote pan, tilt, and rotate adjustments, this unit allows installers to frame the scene accurately without repositioning the physical housing.
Key Features
- Motorised PTRZ adjustment with pan up to 350°, tilt up to 85°, and rotate up to 350° for remote framing after installation
- 8MP ColorVu imaging with a 1/1.8″ progressive scan CMOS sensor and F1.2 maximum aperture for 3840 x 2160 resolution
- Smart Hybrid Light system with 850nm IR and white light illuminators, each providing up to 40m range
- 130dB WDR to handle strong backlight conditions in entrances, foyers, and covered car parks
- Deep learning analytics for perimeter protection, human and vehicle classification, and face capture
- Onboard microSD storage support up to 512GB
- IP66 and IK10 ratings for suitability in exposed outdoor and public-facing positions
Technical Specifications
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 (8MP) |
| Lens Type | Motorised varifocal, 2.8-12mm |
| Aperture | Max. F1.2 |
| Horizontal FOV | 112.3° (wide) to 41.2° (tele) |
| PTRZ Adjustment | Pan: 0°-350°, Tilt: 0°-85°, Rotate: 0°-350°, remote motorised (max. 1,000 cycles) |
| Min. Illumination (Colour) | 0.0028 Lux @ F1.2, AGC ON; 0 Lux with light |
| Supplement Light | IR (850nm) and White Light, up to 40m; Smart Hybrid Light supported |
| Wide Dynamic Range | 130 dB |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Frame Rate | Up to 25fps @ 3840 x 2160 (50Hz); up to 24fps @ 3840 x 2160 (60Hz) |
| Deep Learning Functions | Human and vehicle classification, face capture, perimeter protection (line crossing, intrusion, region entrance, region exiting) |
| Onboard Storage | MicroSD/SDHC/SDXC up to 512GB |
| Audio Interface | 1 x line input, 1 x line output (two-core terminal block) |
| Alarm Interface | 1 input, 1 output (max. 24VDC/24VAC, 1A) |
| Power | 12VDC (max. 12.6W) or PoE IEEE 802.3at Class 4 (max. 15W) |
| Protection Rating | IP66, IK10 |
| Operating Temperature | -30°C to 60°C |
| Dimensions | Ø155mm x 140.4mm |
| Weight | Approx. 820g |
