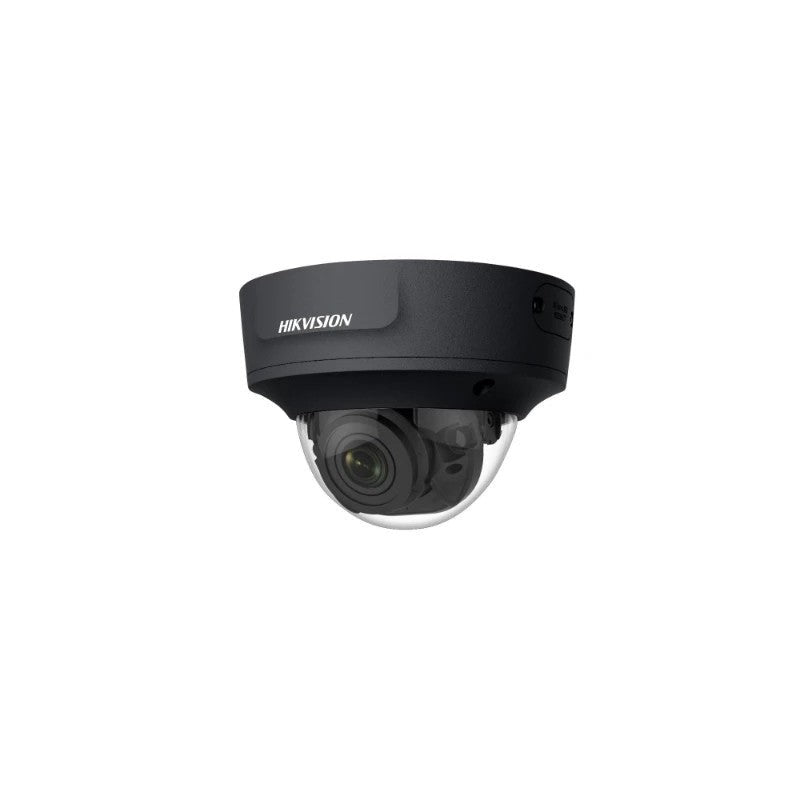

Hikvision Ds-2cd2766g2t-izs-bnc-blk 6 Mp Acusense Motorised Varifocal Dome W/ Bnc Output 2.8-12 Mm Black
SKU: DS2CD2766G2TIZSBNCBLK
$608.19
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-1280zj-dm55 CCTV Camera Bracket
$52.44
Hikvision Ds-1280zj-dm8 CCTV Camera Bracket
$32.55
Hikvision Wall Mount Bracket Ds-1473zj-155 To Suit Hik-2cd27x5 Series Cameras
$79.35
Upgrades Subtotal:
$0.00
The Hikvision DS-2CD2766G2T-IZS-BNC-BLK is a 6MP motorised varifocal dome camera designed for commercial ceiling and wall installations requiring both high-resolution imaging and rapid setup. This black-housed unit integrates AcuSense deep-learning analytics with a dedicated analogue BNC test output, facilitating efficient lens alignment and dependable classification-based detection in covered outdoor and indoor environments.
Key Features
- 6MP resolution (3200 x 1800) on a 1/2.4-inch progressive-scan CMOS sensor for detailed subject capture.
- Motorised 2.8-12 mm varifocal lens with a horizontal field of view ranging from 106° to 35°, adjustable remotely via NVR or web interface.
- Dedicated BNC analogue output allows for quick lens alignment and scene framing using a standard test monitor during installation.
- IP67 weatherproofing and IK10 vandal resistance, suitable for building entrances, car park overheads, and warehouse ceilings.
- AcuSense deep-learning analytics for dependable classification-based detection.
- Black housing variant designed for dark or architectural environments where a white dome would be visually intrusive.
Technical Specifications
| Image Sensor | 1/2.4-inch Progressive Scan CMOS |
| Max Resolution | 3200 x 1800 (6MP) |
| Lens Type | Motorised varifocal 2.8-12 mm, F1.6 |
| Field of View (Horizontal) | 106 degrees (2.8 mm) to 35 degrees (12 mm) |
| Field of View (Vertical) | 56 degrees (2.8 mm) to 20 degrees (12 mm) |
| Minimum Illumination | 0.003 lux (colour) at F1.6, 0 lux with IR active |
| IR Range | Up to 40 m |
| WDR | 120 dB True WDR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Analytics | AcuSense human and vehicle classification |
| BNC Output | Analogue video output for installation and test purposes |
| Audio | Built-in microphone, audio input/output port |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Power Supply | 12 V DC (±25%) or PoE IEEE 802.3af Class 3 |
| Power Consumption | Max 9.5 W |
| Dimensions | 140 mm diameter x 127 mm |
| Weight | Approx. 900 g |
| Mounting Options | Wall, ceiling, pendant, or junction box |
| Housing Colour | Black |
