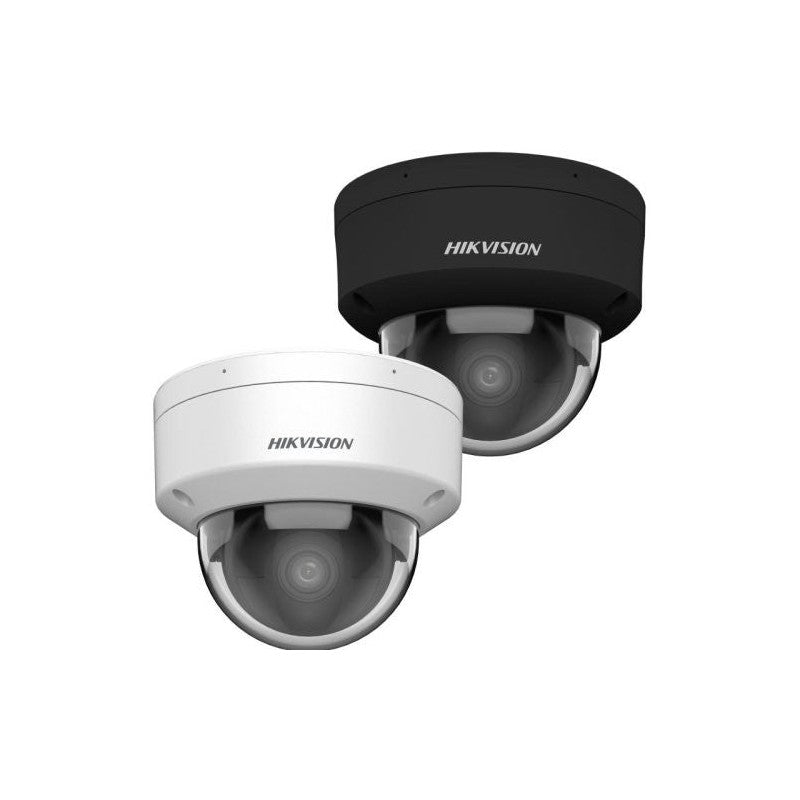

The Hikvision DS-2CD2166G2H-ISU is a 6 MP fixed dome camera engineered for commercial and outdoor environments requiring high-resolution detail and superior low-light performance. Featuring DarkFighter sensor technology and an IP67/IK10-rated aluminium alloy housing, this unit is designed to withstand harsh weather conditions and physical impact while maintaining clear colour imaging in challenging lighting scenarios.
Key Features
- 6 MP resolution at 3200 x 1800 using a 1/2.4″ progressive-scan CMOS sensor.
- DarkFighter technology delivers colour imaging at 0.001 lux for effective low-light surveillance.
- 120 dB True WDR preserves detail in scenes with strong backlighting or mixed contrast.
- AcuSense deep-learning analytics classify motion as human or vehicle to reduce nuisance alerts.
- IP67 and IK10 rated aluminium alloy housing for weather and impact resistance.
- Available with 2.8 mm (114.8°) or 4 mm (94°) lens options, including a black-finish 2.8 mm variant.
- H.265+ compression optimizes bandwidth and storage requirements for large-scale deployments.
Technical Specifications
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Maximum Resolution | 3200 x 1800 (6 MP) |
| Lens Options | Fixed focal: 2.8 mm (H 114.8°, V 60°, D 143.5°) or 4 mm (H 94°, V 50.2°, D 112°) |
| Depth of Field | 2.8 mm: 1.7 m to infinity; 4 mm: 2.2 m to infinity |
| Min. Illumination (Colour) | 0.001 lux @ F1.0 |
| Min. Illumination (B/W) | 0 lux with IR active |
| WDR | 120 dB True WDR |
| IR Illuminator | Up to 30 m, 850 nm smart IR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Streams | Main, Sub, Third stream options |
| Audio | Built-in microphone (SU variant) |
| Analytics | AcuSense deep-learning human and vehicle classification |
| Network and Security Protocols | ONVIF Profile S/G/T, TLS, HTTPS, 802.1x |
| Housing | Aluminium alloy base and cover |
| Ingress and Impact Rating | IP67, IK10 |
| Power Input | 12 V DC ±25% or PoE (IEEE 802.3af Class 3) |
| Max. Power Consumption | Approx. 9.5 W |
| Dimensions | Diameter 121.5 mm x 97.6 mm |
| Weight | Approx. 525 g |
| Variants Available | White 2.8 mm, White 4 mm, Black 2.8 mm (subject to availability) |
