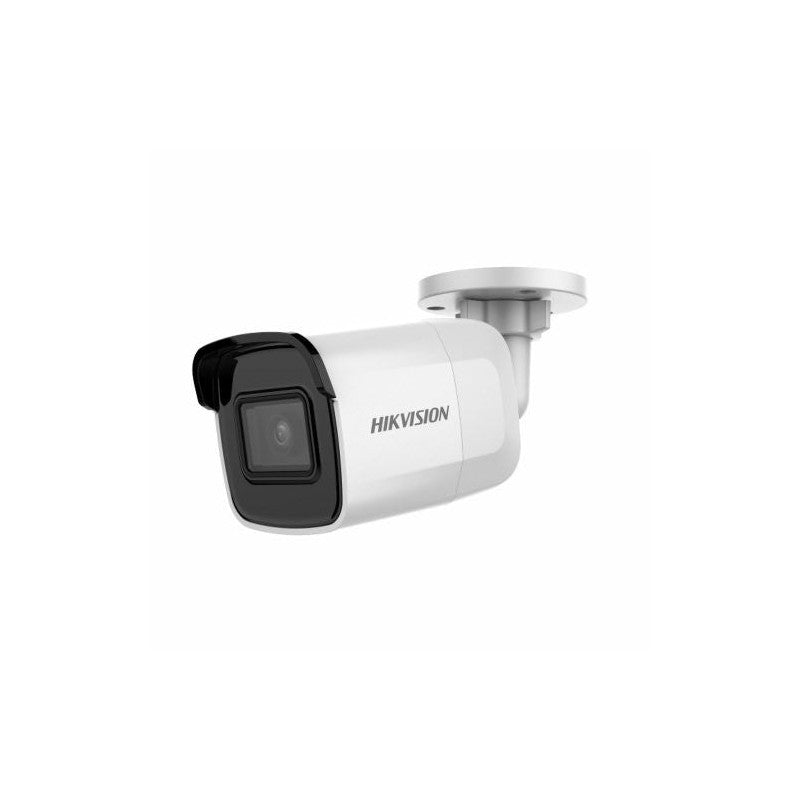

Hikvision Ds-2cd2085g1-i 8MP Outdoor Mini Bullet Camera 30m IR
SKU: DS2CD2085G1I2
$394.08
The Hikvision DS-2CD2085G1-I 8MP Outdoor Mini Bullet Camera 30m IR is a high-resolution IP network camera engineered for outdoor surveillance, utilizing Darkfighter technology to deliver clear imagery in low-light conditions down to 0.008 lux. Designed for 24/7 operation, this unit features a 2.8mm fixed lens and a 30-meter infrared range, providing reliable monitoring with a 120dB wide dynamic range.
Key Features
- 8MP resolution with a maximum output of 3840 x 2160 at 20fps
- Darkfighter technology enabling 0.008 Lux color imaging at F1.2
- 30-meter infrared illumination range for night vision
- 120dB Wide Dynamic Range (WDR) for high-contrast scenes
- IP67 weather resistance and IK10 impact protection
- Supports H.265, H.265+, H.264, and H.264+ compression standards
- Power over Ethernet (802.3af, class 3) and 12 VDC power options
- On-board storage support up to 128GB
Technical Specifications
- Camera
- Image Sensor1/2″ Progressive Scan CMOS
- Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Day &NightIR Cut Filter
- Wide Dynamic Range120dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- DNR3D DNR
- General
- Firmware VersionV5.5.80
- ResetYes
- Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, Φ 5.5 mm ,PoE(802.3af, class 3)
- Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
- MaterialMetal
- DimensionsCamera: 70 × 68 × 171 mm (2.8″ × 2.7″ × 6.7″)
- WeightCamera: 400 g (0.9 lb.);With package: 700 g (1.5 lb.)
- Interface ProtectionIP67
- Lens
- Lens2.8/4/6 mm
- Auto-IrisNo
- ApertureF1.6
- FocusFixed
- FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°;4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°;6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
- Lens MountM16
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution3840 × 2160
- Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 16 Mbps
- Smart Feature-Set
- Behavior AnalysisLine crossing detection, intrusion detection
- Region Of InterestSupport 1 fixed region for main stream and sub-stream
- Network
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Video OutputNo
- On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- Smart Feature-Set
- Face DetectionYes
- Image
- Image EnhancementBLC/3D DNR/HLC
- Day/Night SwitchDay/Night/Auto/Schedule
