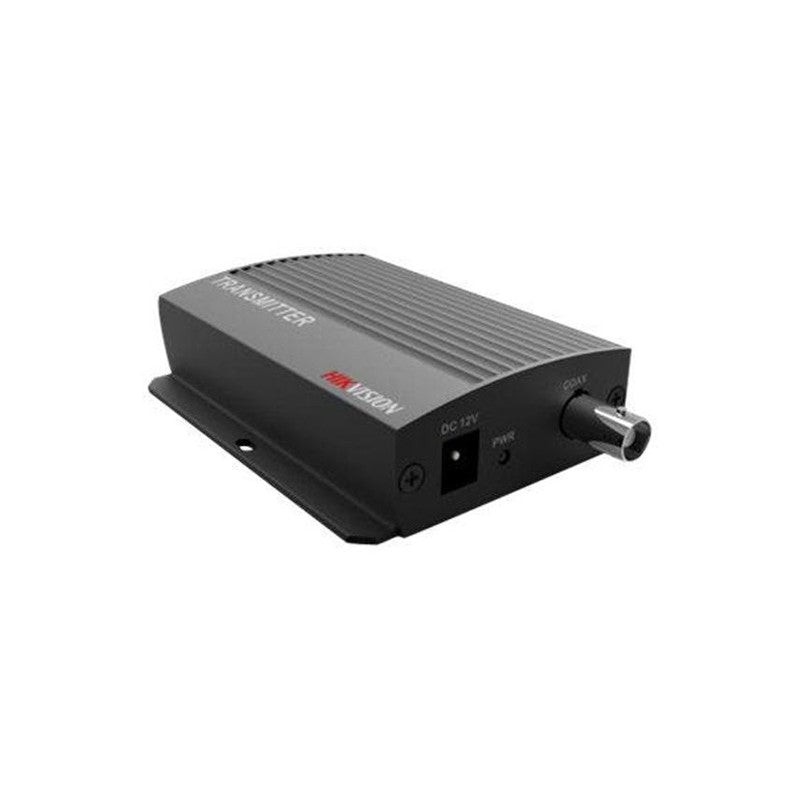

Hikvision Ds-1h05-t/e POE Over Coax
SKU: SWDS1H05TE
$247.83
The Hikvision DS-1H05-T/E POE Over Coax is a compact transmission device designed to deliver network data and CVBS signals over coaxial cable with minimal signal loss. This unit supports simultaneous IP and analog signal transmission, making it a practical solution for extending surveillance infrastructure to remote devices.
Key Features
- Supports 1080P HD IP video transmission over coaxial cable
- Enables transmission distances of up to 500 meters
- Transmits IP and analog signals simultaneously
- Provides a maximum download speed of 36Mbps and upload speed of 11Mbps
- Complies with the IEEE802.3 af standard for PSE functionality
- Features RJ45 and BNC input interfaces with a BNC output interface
- Operates within a temperature range of -10 °C to +55 °C
Technical Specifications
| Input interface: | RJ45 Interface& BNC |
| Output interface: | BNC |
| PSE: | n/a |
| Consumption: | Max 5W |
| Power Supply: | DC 12V |
| Working Humidity: | 10% ~ 90% |
| Working Temperature: | -10 °C ~+55 °C |
| Dimensions (W x D x H): | 80 x 96 x 27 mm |
