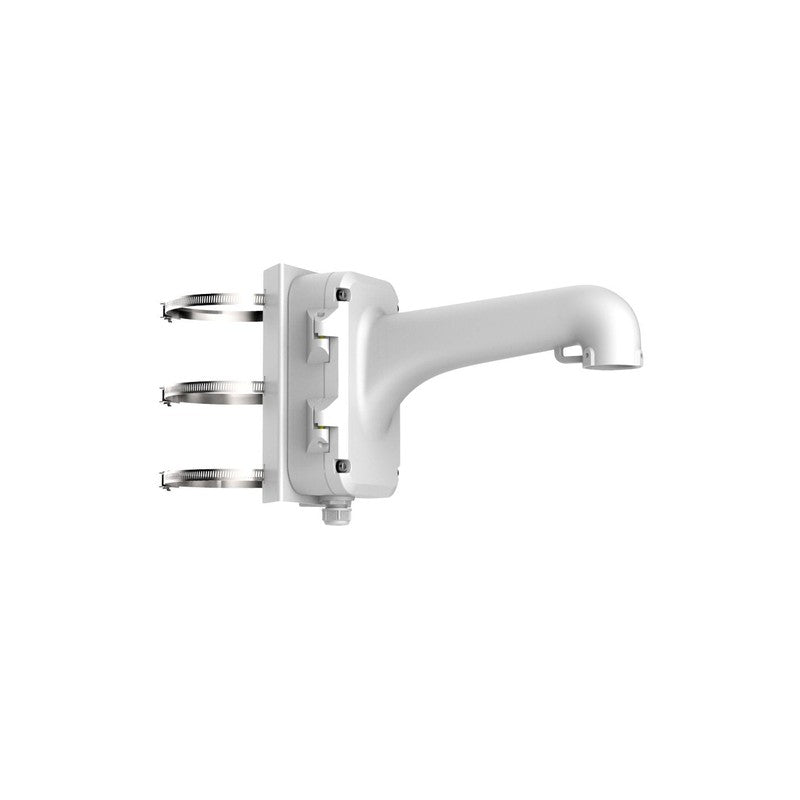

Hikvision Ds-1604zj-pole Wall Mount Bracket For PTZ Cameras
SKU: DS1604ZJPOLE
$154.23
The Hikvision DS-1604ZJ-pole is a dedicated wall mount bracket engineered for the secure installation of Hikvision HIK-2DFxxxx series speed dome PTZ cameras on vertical poles. Constructed from a combination of aluminium alloy and steel, this unit provides a corrosion-resistant platform capable of supporting the weight and movement demands of full-size outdoor surveillance equipment.
Key Features
- Designed specifically for vertical pole installations, including perimeter masts, car park columns, and standalone posts where wall mounting is not viable.
- Constructed from aluminium alloy and steel to ensure structural rigidity and resistance to outdoor corrosion.
- Features an integrated junction box for clean cable management and protected termination directly at the mounting point.
- Finished in Hikvision White to maintain a consistent and professional appearance alongside matching camera housings.
- Supports Hikvision HIK-2DFxxxx series speed dome PTZ cameras.
- Unit weight of 3.8 kg facilitates easier handling during the installation process.
- Overall dimensions of 355.5 mm x 261.8 mm x 170.7 mm are engineered to fit standard pole mount setups.
Technical Specifications
| Model | DS-1604ZJ-pole |
| Bracket Type | Vertical pole mounting bracket for speed dome PTZ cameras |
| Compatible Camera Series | HIK-2DFxxxx series PTZ speed dome cameras |
| Material | Aluminium alloy and steel |
| Colour / Finish | Hikvision White |
| Dimensions | 355.5 mm x 261.8 mm x 170.7 mm (14″ x 10.31″ x 6.72″) |
| Weight | 3.8 kg (8.38 lb) |
| Junction Box | Integrated |
| Mounting Style | Vertical pole |
| Brand | Hikvision |
