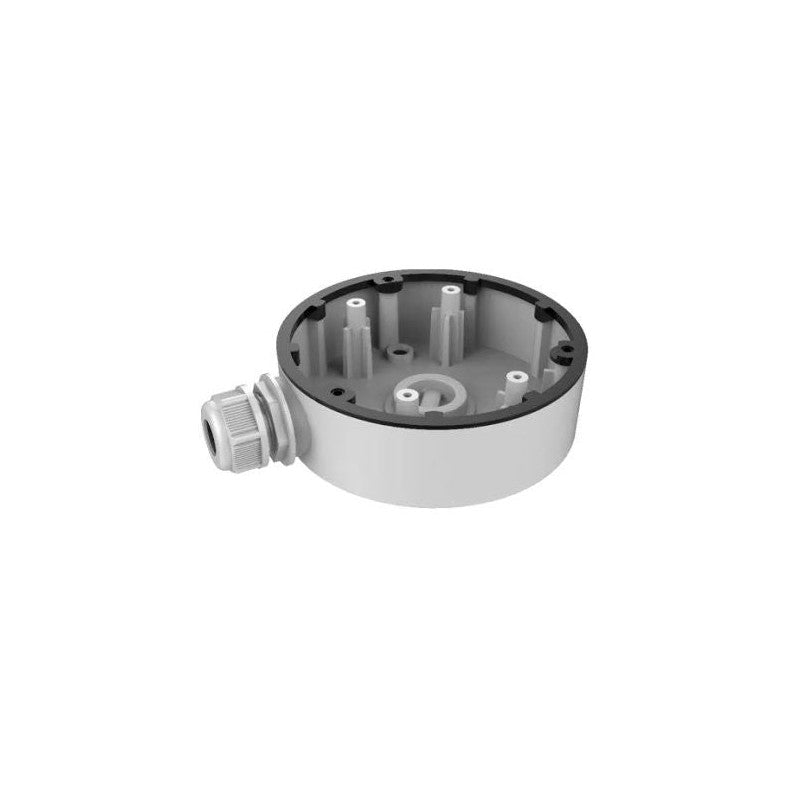

Hikvision Ds-1280zj-dm46 Junction Box White
SKU:
$39.81
The Hikvision DS-1280ZJ-DM46 Junction Box White is a dedicated mounting solution designed for Hikvision mini dome cameras, providing a structurally sound base for flat wall or ceiling installations. Constructed from aluminium alloy with a surface spray treatment, this white junction box conceals cabling and protects the rear of compatible cameras while maintaining a clean aesthetic.
Key Features
- Aluminium alloy construction with surface spray treatment for durability and a white finish that blends with ceilings and walls.
- Interchangeable bottom waterproof cover and side gland nut allow flexible cable routing to suit specific on-site requirements.
- Maximum load capacity of 4.5 kg, accommodating the weight of compatible mini dome cameras with a secure margin.
- Compatible with Hikvision models including the DS-2CD2166, DS-2CD2566, DS-2CD2186, and DS-2CD2185G0-IMS series.
- Designed for installation on flat wall or ceiling surfaces in both commercial and residential settings.
- Requires waterproof rubber for outdoor deployments to maintain environmental protection.
Technical Specifications
| Product Name | Hikvision DS-1280ZJ-DM46 Junction Box |
| Colour | White |
| Material | Aluminium alloy with surface spray treatment |
| Mount Type | Flat wall or ceiling mount |
| Maximum Load Capacity | 4.5 kg |
| Cable Entry | Bottom or side (interchangeable cover and gland nut) |
| Waterproof Cover | Included (interchangeable with side gland nut) |
| Outdoor Suitability | Requires waterproof rubber for outdoor application |
| Compatible Camera Models | DS-2CD2166, DS-2CD2566, DS-2CD2186, DS-2CD2185G0-IMS series |
| Structural Requirement | Mounting surface must support at least 3 times the total weight of the camera and mount |
