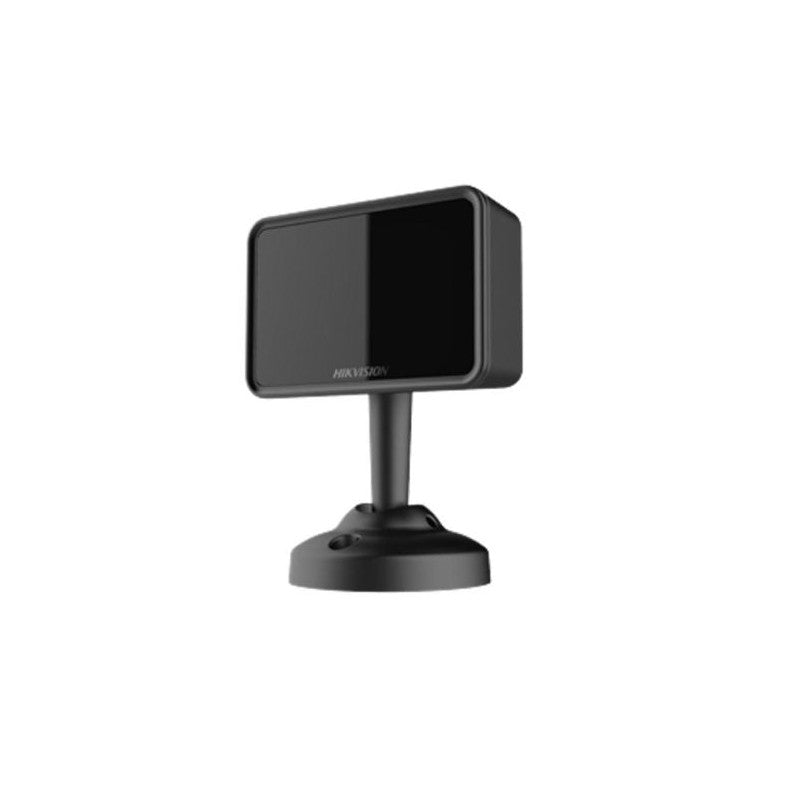

Hikvision Ae-vc154t-it | 720p Vehicle-mounted Analog Camera – Progressive-scan Cmos, Ir, Shock-proof
SKU: AEVC154TIT
$167.10
The Hikvision AE-VC154T-IT is a vehicle-mounted analog camera engineered for onboard fleet and commercial vehicle monitoring, featuring a 1/2.9″ progressive-scan CMOS sensor and a shock-proof metal housing. Designed to withstand constant vibration and extreme temperatures, this unit delivers 720p HD resolution with IR illumination for reliable low-light capture in enclosed interior spaces.
Key Features
- 1/2.9″ progressive-scan CMOS sensor delivering 1280×720 HD resolution
- Fixed 6mm lens providing a ~60° horizontal field of view
- Shock-proof metal housing designed to absorb vibration and physical stress
- Operating temperature range of -40°C to +75°C for extreme climate conditions
- Wide 9-16 V DC input compatible with standard vehicle electrical systems
- IR illumination enabling capture down to 0 lux with a range of approximately 2-3 metres
- Single-channel coaxial HD-TVI video output for integration with mobile DVRs
Technical Specifications
| Image Sensor | 1/2.9″ progressive-scan CMOS |
| Maximum Resolution | 1280 x 720 (720p) |
| Minimum Illumination | 0.1 lux at F1.2 (AGC ON); 0 lux with IR |
| Shutter Speed | 1/25 s to 1/30,000 s |
| Lens | Fixed 6 mm; M12 mount |
| Field of View (approx.) | Horizontal ~60°; Vertical ~52°; Diagonal ~28° |
| Video Output | 1-way coaxial HD (HD-TVI) |
| Audio | Built-in microphone; no built-in speaker |
| Signal-to-Noise Ratio | 42 dB |
| Power Supply | 9 V DC to 16 V DC |
| Power Consumption | Max 2.5 W |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Dimensions (without bracket) | 66 mm x 45 mm x 23.5 mm (approx.) |
| Construction / Housing | Metal body; shock-proof design |
No downloads available for this product.
