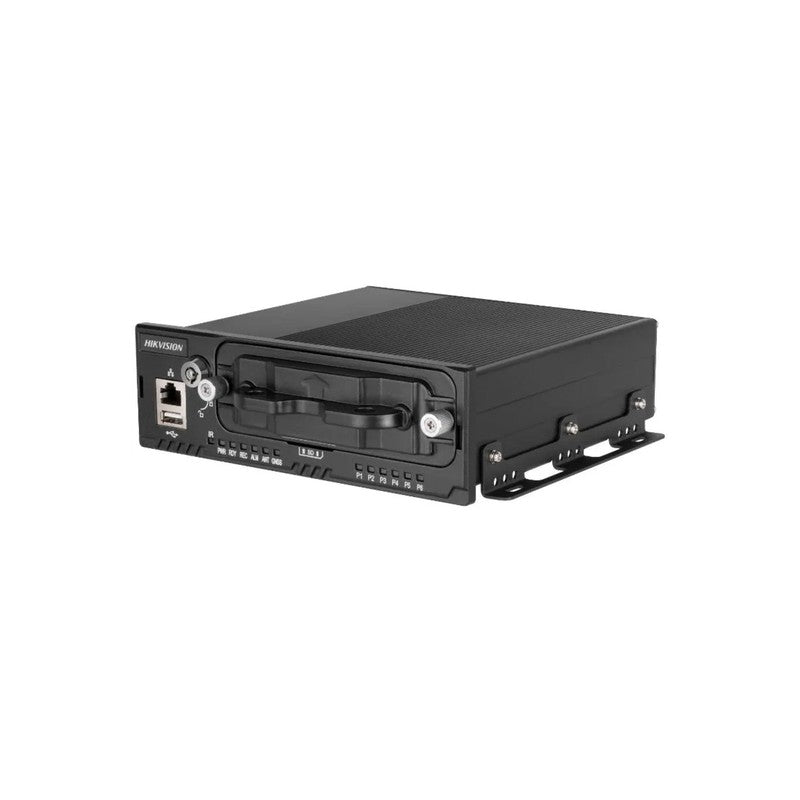

Hikvision Ae-mn5043(rj45) 4-ch Mobile NVR Without Wifi / 4g Module
SKU: AEMN5043RJ45NO4GWIFI
$1,071.51
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2xm6726g1-id 2 Mp Mobile Network Dome Camera
$429.18
$407.72
Upgrades Subtotal:
$0.00
The Hikvision AE-MN5043(RJ45) is a 4-channel mobile NVR engineered for commercial fleets, transit systems, and rail applications. This fanless, aluminium die-cast recorder operates reliably in demanding transport environments, supporting a wide-range power input of +9 VDC to +32 VDC without the inclusion of 4G or Wi-Fi modules.
Key Features
- 4-channel PoE connectivity with the ability to extend to 8 channels via an external PoE switch
- Built-in GPS and GLONASS module that embeds precise vehicle location data directly into the video stream
- Integrated G-sensor for capturing driving events such as hard braking, acceleration, and cornering
- Wide-range power input of +9 VDC to +32 VDC with a built-in super-capacitor to protect data during sudden power loss
- Fanless aluminium die-cast chassis designed to withstand vibration and temperature fluctuations
- Specialised aviation connectors and EN50155 railway certification for professional transport deployments
- Information collection interfaces that log vehicle indicators including reversing and turn signals
Technical Specifications
| Model | AE-MN5043(RJ45) |
| IP Camera Channels (Direct PoE) | 4 channels via onboard PoE interfaces |
| IP Camera Channels (Extended) | 4 additional channels via PoE switch |
| Maximum Camera Resolution | Up to 5 MP per channel |
| Video Compression | H.265 / H.264 |
| Encoding Resolution | Main stream: 1080P / 720P / WD1 / 4CIF. Sub-stream: 720P / WD1 / 4CIF / 2CIF / CIF |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| HDD / SSD Storage | 2 x 2.5-inch SATA, up to 2 TB per HDD or 4 TB per SSD |
| SD Card Storage | 1 x SD card, up to 256 GB |
| Positioning | Built-in GPS and GLONASS, 1 x FAKRA antenna connector |
| G-Sensor | Built-in |
| Power Supply | +9 VDC to +32 VDC (12 V and 24 V vehicle compatible) |
| Power Consumption | Standby: 0.5 W; Full load: 45 W; Without peripherals: 20 W |
| Network Interface | Front panel: 1 x 10M/100M RJ45; Rear panel: 1 x 10M/100M 6-pin aviation connector |
| Alarm Input / Output | 4 high/low level signal inputs, 1 pulse input, 1 button input; 2 relay signal outputs |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10% to 95% (non-condensing) |
| Chassis Design | Aluminium die-cast, fanless |
| Dimensions | 206 mm x 225.4 mm x 60.1 mm |
| Weight (without storage media) | 1.66 kg |
| Certifications | CE, FCC, E-mark, EN50155, CB, EN45545, RoHS 2.0, ISO-7637-2 |
| Wireless Connectivity | None (4G and Wi-Fi modules not included in this variant) |
