Hikvision Ae-mn5043(rj45) 4-ch Mobile NVR W/ Wifi 4g
SKU: AEMN5043RJ45WITH4GWIFI
$1,423.68
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2xm6222g1-i/nd Vehicle Mobile IP Camera Rj45 Ethernet Port, 2MP – 1080p
$483.00
$458.85
Hikvision Ds-2xm6726g1-id 2 Mp Mobile Network Dome Camera
$429.18
$407.72
Upgrades Subtotal:
$0.00

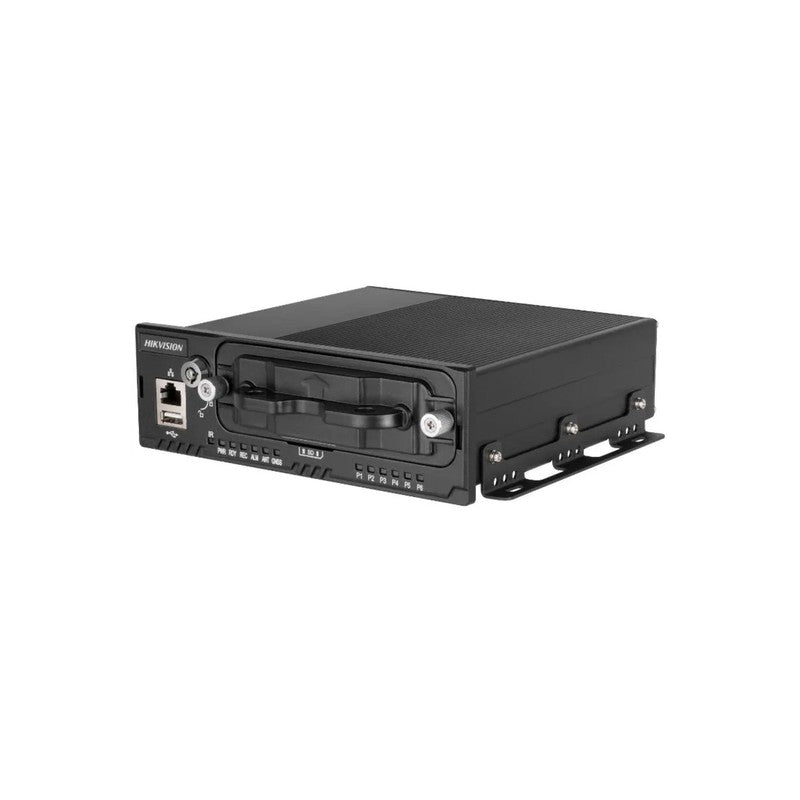

The Hikvision AE-MN5043(RJ45) is a ruggedised 4-channel mobile NVR engineered for in-vehicle recording on buses, trucks, fleet vans, and rail vehicles. Featuring an aluminium die-cast, fanless chassis and wide-range power input from +9 to +32 VDC, it is designed to operate reliably across harsh vehicle environments where temperature, vibration, and power fluctuation are constant factors.
Key Features
- Integrated 4G and Wi-Fi (802.11B/G/N or 802.11AC) connectivity for live video transmission, remote access, and data offload without physical base station connections.
- Built-in GPS and GLONASS dual-constellation positioning embeds precise location data directly into the video stream for accurate route playback and incident investigation.
- G-sensor and driving information collection interfaces log events such as braking, reversing, and turning to automatically tag video segments and trigger alarm responses.
- Supports up to 4 direct PoE camera connections plus 4 additional channels via a PoE switch, with H.265/H.264 recording up to 5MP per camera.
- Dual 2.5-inch HDD/SSD bays and an SD card slot provide flexible onboard storage options for continuous recording.
- Built-in super-capacitor protects against data loss from sudden power cuts, ensuring dependable operation for fleet operators.
- Wide-range power input from +9 to +32 VDC accommodates standard vehicle electrical systems and fluctuating power conditions.
Technical Specifications
| IP Camera Channels | 4-ch via onboard PoE interfaces; 4-ch extendable via PoE switch (8-ch total) |
| Max Camera Resolution | Up to 5MP per channel |
| Video Compression | H.265 / H.264 |
| Encoding Resolution | Main stream: 1080P / 720P / WD1 / 4CIF; Sub-stream: 720P / WD1 / 4CIF / 2CIF / CIF |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| Dual Stream | Supported |
| HDD/SSD Storage | 2 x 2.5-inch SATA; up to 2TB per HDD, up to 4TB per SSD |
| SD Card Storage | 1 x SD card slot, up to 256GB |
| 4G Connectivity | Pluggable 4G module; 1 x 4G SIM card slot; 1 x FAKRA antenna |
| Wi-Fi | Pluggable Wi-Fi module; 802.11B/G/N or 802.11AC selectable; 2 x 5.8GHz SMA antennas (WI58 model) |
| GNSS Positioning | GPS and GLONASS; 1 x FAKRA antenna |
| G-Sensor | Built-in |
| Alarm Input | 4 high/low level signal inputs; 1 pulse signal input; 1 button input |
| Alarm Output | 2 relay signal outputs |
| Network Interface | Front: 1 x 10M/100M RJ45; Rear: 1 x 10M/100M 6-pin aviation connector |
| Power Supply | +9 to +32 VDC (supports 12V and 24V vehicle systems) |
| Power Consumption | Standby: 0.5W; Full load: 45W |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 206mm x 225.4mm x 60.1mm |
| Weight | 1.66 kg (without storage media) |
| Certifications | CE, FCC, E-Mark, EN50155, EN45545, CB, ROHS 2.0, ISO-7637-2 |
