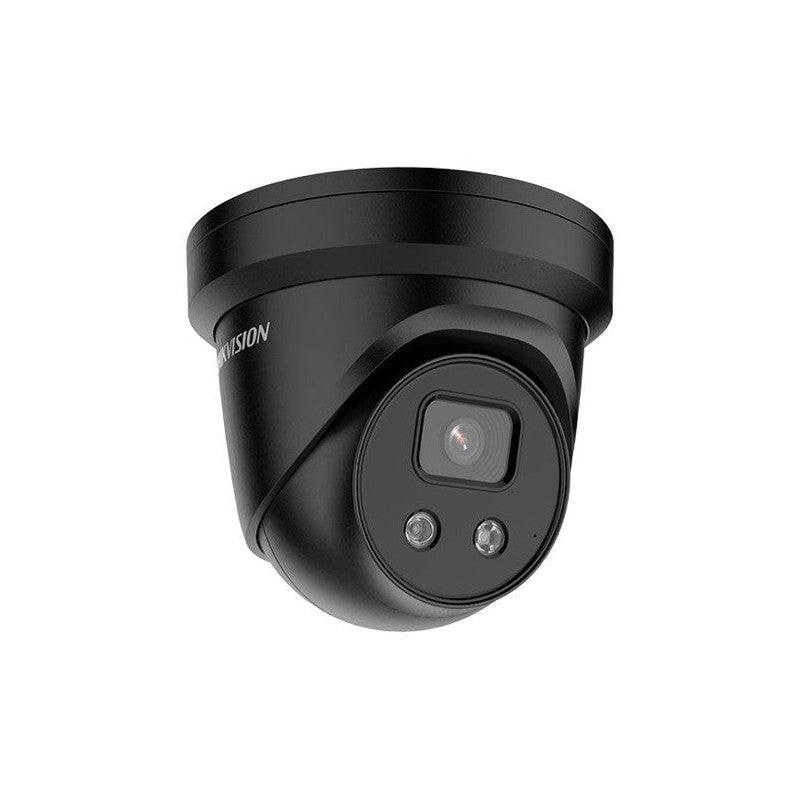

Hikvision Acusense Ds-2cd2366g2-isu/sl IP Liveguard 6MP With Warning & Strobe Turret Network Camera

Hikvision Acusense Ds-2cd2366g2-isu/sl IP Liveguard 6MP With Warning & Strobe Turret Network Camera
SKU: DS2CD2366G2ISUSLACUSENSE1
$15,644.49

The Hikvision DS-2CD2366G2-ISU/SL is a 6MP AcuSense Gen 2 LIVEGUARD turret network camera designed for outdoor eaves, soffit, and wall installations requiring active deterrence. It integrates deep learning analytics with a built-in strobe light and audible alarm to classify human and vehicle targets while issuing real-time warnings to intruders.

Key Features

  • 6MP resolution with a 1/1.8″ progressive scan CMOS sensor
  • AcuSense Gen 2 deep learning for human and vehicle classification
  • Built-in strobe light and audible alarm for active on-site deterrence
  • DarkFighter low-light technology delivering colour imaging at 0.003 Lux
  • Up to 30m of 850nm IR illumination for night-time coverage
  • True 120dB Wide Dynamic Range (WDR)
  • Two-way audio capability

Technical Specifications

Product Type 256-channel Ultra Series AcuSense network video recorder.
IP Camera Inputs Up to 256 IP camera channels.
Maximum Camera Resolution Up to 32 MP.
Incoming Bandwidth Up to 1280 Mbps in standard operation.
Outgoing Bandwidth Up to 1024 Mbps in standard operation.
RAID Mode Bandwidth Up to 640 Mbps incoming and 512 Mbps outgoing.
Decoding Capacity Up to 2 channels at 32 MP, 8 channels at 8 MP, 16 channels at 4 MP or 32 channels at 1080p at 30 fps.
Synchronous Playback Up to 16 channels.
Recording Resolution Supports recording resolutions up to 32 MP.
Video Compression H.265+, H.265, H.264+ and H.264.
AI by NVR Facial recognition, perimeter protection and video structuralisation.
AcuSearch Up to 32 channels by NVR, with compatible camera-based AcuSearch available across supported channels.
Face Libraries Up to 64 face picture libraries with up to 300,000 face pictures.
Face Comparison Up to 16 channels, with comparison speed up to 24 pictures per second.
HDMI Outputs 4 HDMI outputs, including HDMI 3 output up to 8K at 30 Hz.
VGA Outputs 2 VGA outputs up to 1080p.
HDMI Input and Loopback 1 HDMI input and 1 matching HDMI loopback output.
Audio Output 2-channel RCA audio output.
Two-Way Audio 1-channel RCA two-way audio interface.
HDD Interfaces 16 SATA interfaces for 3.5-inch hard drives.
Maximum HDD Capacity Up to 20 TB per HDD.
Included Storage Hard drives are not stated as included.
RAID Support RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10.
Hot Spare Supports N+M hot spare operation.
Network Interfaces 4 × RJ45 10/100/1000/2500 Mbps self-adaptive Ethernet interfaces.
Remote Connections Up to 512 remote connections.
eSATA 1 eSATA interface.
USB Interfaces 2 × USB 2.0 on the front and 4 × USB 3.0 on the rear.
Alarm Inputs and Outputs 32 alarm inputs and 16 alarm outputs.
Serial Interfaces 1 × RS-232 and 2 × RS-485 half-duplex interfaces.
Power Supply Redundant power supply.
No downloads available for this product.
