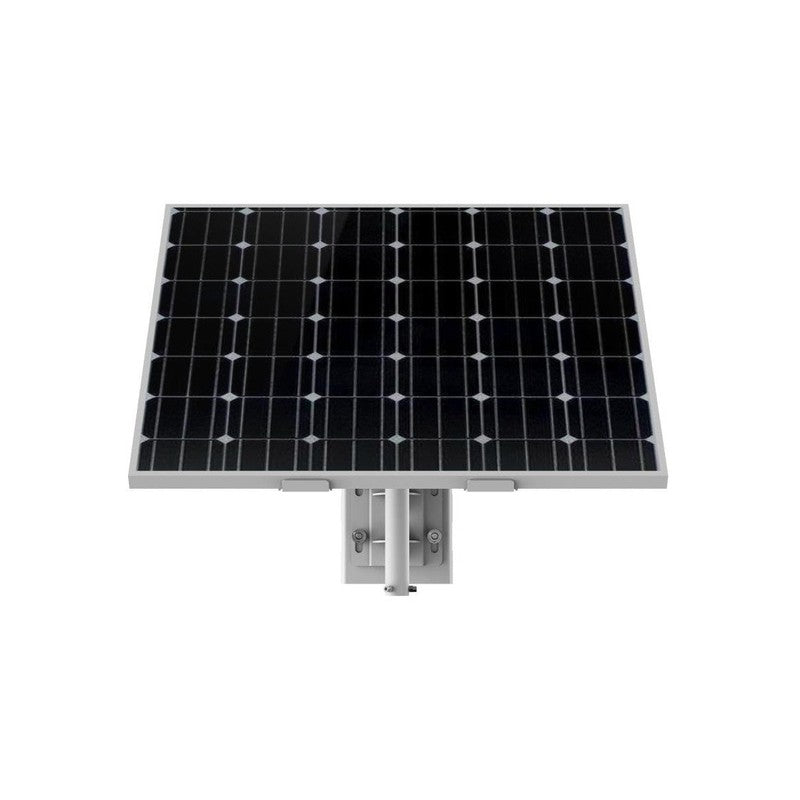

Hikvision 80w Ds-2xs6k01-c36s80 Solar Power Module With 360wh Lithium Battery, Battery Management, Ip66 Weather Resistance
SKU: DS2XS6K01C36S80
$3,228.99
The Hikvision DS-2XS6K01-C36S80 is an 80W solar power module engineered to provide self-contained off-grid power for compatible solar-powered camera installations. It integrates an 80W photovoltaic panel with a 360Wh rechargeable lithium battery system to store solar energy and supply 9 to 12.6 VDC output at up to 30W through 2 x Ø5.5mm coaxial power plugs.
Key Features
- 80W photovoltaic panel for harvesting sunlight and recharging the internal battery system
- 360Wh total stored capacity provided by four 90Wh lithium cells operating at 10.8V
- Comprehensive battery management system featuring status display, high-low temperature protection, and charge-discharge protection
- Low-battery sleep protection and remote wakeup support for consistent long-term operation
- IP66 weather resistance rating for protection against dust and rain in exposed outdoor locations
- Wind-load rated housing capable of withstanding wind speeds up to 40m/s
- RS-485 half-duplex interface for communication with compatible Hikvision solar camera kits
- 9 to 12.6 VDC output at up to 30W delivered via 2 x Ø5.5mm coaxial power plugs
Technical Specifications
| Model | DS-2XS6K01-C36S80 |
| Product Type | Solar power module with integrated lithium battery |
| Solar Panel Output | 80W photovoltaic panel |
| Battery Capacity | 360Wh rechargeable lithium battery (4 x 90Wh cells) |
| Battery Voltage | 10.8V |
| Battery Life | More than 500 cycles |
| Battery Management | Battery management and battery display supported |
| Battery Protection | High-low temperature protection, charge-discharge protection, low-battery sleep protection |
| Remote Wakeup | Supported |
| Power Output | 9 to 12.6 VDC, maximum 30W |
| Power Connectors | 2 x Ø5.5mm coaxial power plugs |
| Communication Interface | 1 x RS-485 half-duplex |
| Charging Temperature Range | -20 degrees C to 45 degrees C |
| Discharging Temperature Range | -20 degrees C to 60 degrees C |
| Weather Protection | IP66 water and dust resistant |
| Wind Resistance | Level 12, up to 40m/s |
| Anti-Corrosion Protection | No specific protection listed |
| Assembled Dimensions | 640.4 x 735.9 x 760mm (maximum assembled size) |
| Weight | Approx. 24kg (module); approx. 30kg (packaged) |
| Approvals | CE-EMC, RCM, IC, CB, CE-RoHS, WEEE, REACH |
