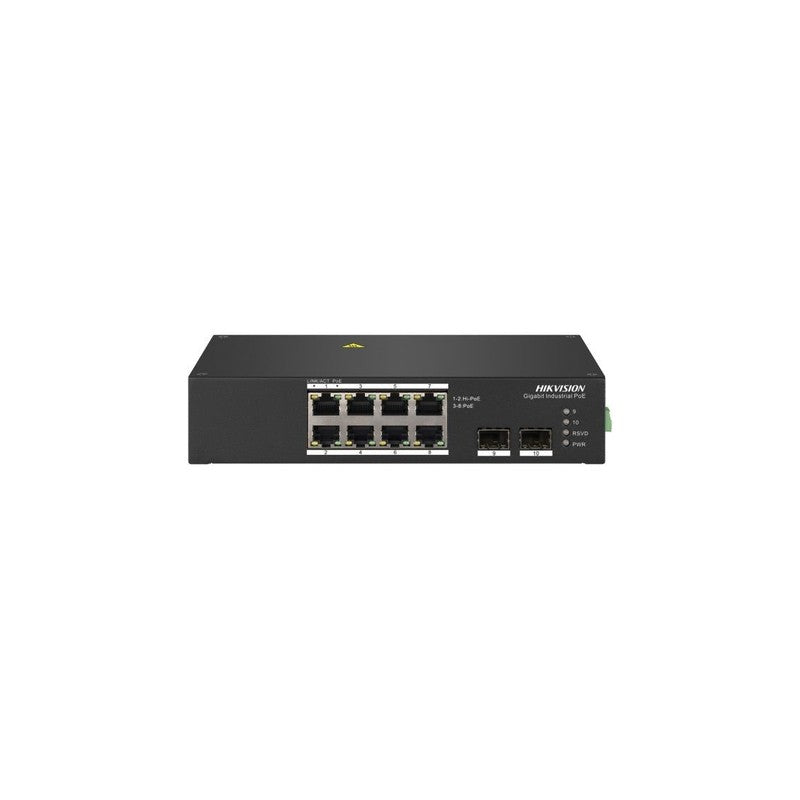

Hikvision 8-port Gigabit Unmanaged Ds-3t0510hp Industrial Hi-poe Switch With 2 Sfp Ports, 110w POE Budget & 300m Long-range Transmission
SKU: DS3T0510HP
$265.38
The Hikvision DS-3T0510HP is an 8-port Gigabit unmanaged Hi-PoE switch engineered for industrial surveillance networks requiring high power output and extended transmission distances. Designed for demanding installations where standard desktop switches are insufficient, this unit provides robust environmental tolerance and reliable data connectivity.
Key Features
- 8-port Gigabit unmanaged switching architecture
- 110W total PoE budget for powering high-demand devices
- 300m long-range transmission capability
- 2 SFP ports for fiber optic uplink connectivity
- Industrial-grade design for harsh environmental conditions
- Hi-PoE technology for enhanced power delivery
Technical Specifications
| Model | DS-3T0510HP |
| Product Type | 8-Port Gigabit Unmanaged Industrial Hi-PoE Switch |
| PoE Ports | 8 x Gigabit RJ45 PoE ports |
| SFP Fibre Ports | 2 x Gigabit SFP fibre optical ports |
| Hi-PoE Ports | Ports 1 and 2, up to 90W each |
| Standard PoE Port Power | Up to 30W on Ports 3-8 |
| Total PoE Budget | 110W |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 4K |
| Long-Range Transmission | Up to 300m |
| Surge Protection | 6kV |
| Housing | Rugged aluminium alloy, fan-free |
| Mounting | DIN rail |
| Power Input | 48-57VDC, 2.5A (external supply required) |
| Maximum Power Consumption | 120W |
| Operating Temperature | -40 degrees C to 75 degrees C |
| Storage Temperature | -40 degrees C to 85 degrees C |
| Operating Humidity | 5% to 95%, non-condensing |
| Dimensions | 197 x 114.2 x 42.2mm |
| Net Weight | Approx. 0.585kg |
