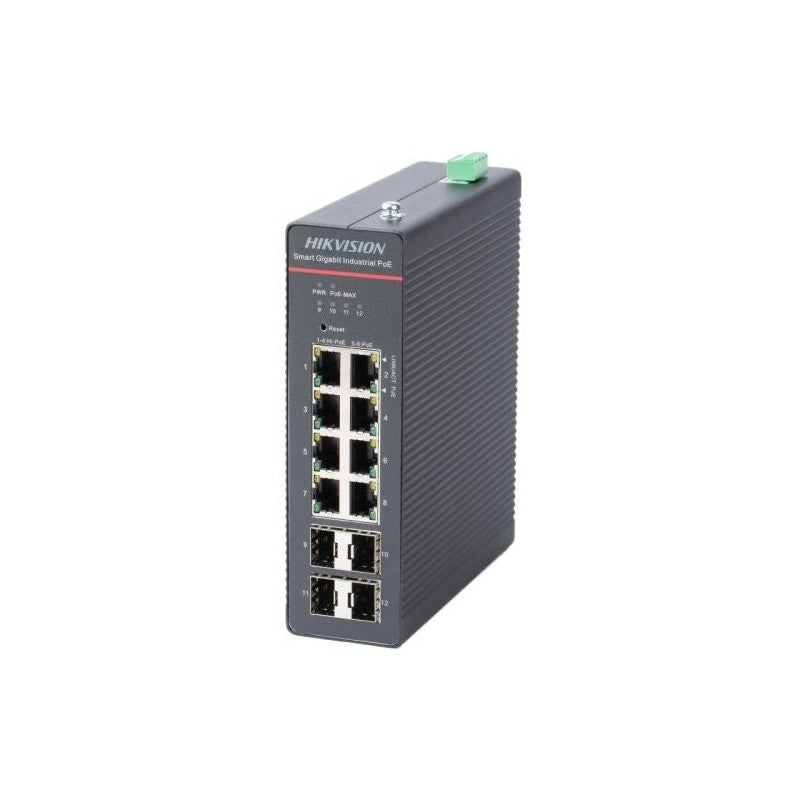

Hikvision 8-port Gigabit Smart Managed Ds-3t1512hp-si/8p4f Industrial Hi-poe Switch With 4 Sfp Ports, 802.1q Vlan & 802.3bt POE
SKU: DS3T1512HPSI8P4F
$357.81
The Hikvision DS-3T1512HP-SI/8P4F is an 8-port Gigabit smart managed industrial Hi-PoE switch with 4 SFP fibre ports, engineered for professional CCTV deployments in industrial facilities, warehouses, and remote infrastructure sites. This unit provides high-power PoE delivery, fibre backhaul, and managed network control in a compact form factor designed for demanding surveillance environments.
Key Features
- 8-port Gigabit smart managed industrial Hi-PoE switch with 4 SFP fibre ports
- Ports 1 to 4 support 802.3bt Hi-PoE with up to 90W per port for high-power PTZ cameras
- Ports 5 to 8 provide standard PoE and PoE+ at up to 30W per port
- 300W total PoE power budget
- Supports 802.1Q VLAN for managed network control
- Industrial-grade design suitable for warehouse and remote infrastructure deployments
Technical Specifications
| Model | DS-3T1512HP-SI/8P4F |
| Product Type | 8-Port Gigabit Smart Managed Industrial Hi-PoE Switch |
| PoE RJ45 Ports | 8 x Gigabit PoE RJ45 ports |
| SFP Fibre Ports | 4 x Gigabit SFP fibre optical ports |
| Hi-PoE Ports | Ports 1 to 4: IEEE 802.3af/at/bt, up to 90W per port |
| Standard PoE Ports | Ports 5 to 8: IEEE 802.3af/at, up to 30W per port |
| Total PoE Budget | 300W |
| Switching Capacity | 56Gbps (whole device); 24Gbps (port performance) |
| Packet Forwarding Rate | 41.66Mpps (whole device); 17.86Mpps (port performance) |
| MAC Address Table | 8K |
| Long-Range Transmission | Ports 1 to 8 support up to 300m, depending on camera model and cable condition |
| VLAN | IEEE 802.1Q VLAN, VLAN ID 1 to 4094, Trunk and Access mode, up to 4094 VLANs |
| Loop Prevention | IEEE 802.1D STP, IEEE 802.1w RSTP, G.8032 ERPS |
| QoS | Port-based priority, SP and WRR priority schedule modes |
| SNMP | SNMP v1/v2c |
| ACL | Up to 64 ACL entries, up to 128 configuration rules |
| PoE Watchdog | Ports 1 to 8: auto-detects and restarts non-responsive cameras |
| Remote Management | Web management, Hik-Central Pro, Hik-Partner Pro |
| Shell and Protection | Metal, IP40 |
| Surge Protection | 6kV |
| Power Supply Input | 48 to 57 VDC, 7.5A; dual input with hot backup supported |
| Maximum Power Consumption | 307W |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 5% to 95%, no condensation |
| Dimensions | 155 x 46 x 130mm |
| Net Weight | Approx. 0.84kg |
| Installation Mode | Desk-mounted or rail-mounted |
